M16

Sets

Select an Operation Unit Set (Operation Unit and Case) and a Socket Unit Set (Lamp and Socket Unit).

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Case, Lamp, and Socket.

M16[]-J (Rectangular) Models
Solder Terminal Models

Appearance	Degree of protection		IP40	IP65 oil-resistant	Display color symbol *
Rectangular (M16-J)	LED without Voltage Reduction Unit	5 VDC	M16-J[] -5D	M165-J[] -5D	R: red Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white
		12 VAC/VDC	M16-J[] -12D	M165-J[] -12D
		24 VAC/VDC	M16-J[] -24D	M165-J[] -24D
	Incandescent lamp	5 VAC/VDC	M16-J[] -5	M165-J[] -5	R: red Y: yellow G: green A: blue W: white PY: pure yellow
		12 VAC/VDC	M16-J[] -12	M165-J[] -12
		24 VAC/VDC	M16-J[] -24	M165-J[] -24

*Enter the desired color symbol into the box in the model number.

M16[]-A (Square) Models
Solder Terminal Models

Appearance	Degree of protection		IP40	IP65 oil-resistant	Display color symbol *
Square (M16-A)	LED without Voltage Reduction Unit	5 VDC	M16-A[] -5D	M165-A[] -5D	R: red Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white
		12 VAC/VDC	M16-A[] -12D	M165-A[] -12D
		24 VAC/VDC	M16-A[] -24D	M165-A[] -24D
	Incandescent lamp	5 VAC/VDC	M16-A[] -5	M165-A[] -5	R: red Y: yellow G: green A: blue W: white PY: pure yellow
		12 VAC/VDC	M16-A[] -12	M165-A[] -12
		24 VAC/VDC	M16-A[] -24	M165-A[] -24

*Enter the desired color symbol into the box in the model number.

M16[]-T (Round) Models
Solder Terminal Models

Appearance	Lighting	Degree of protection	IP40	IP65 oil-resistant	Display color symbol * 1
Round (M16-T)	LED without Voltage Reduction Unit	5 VDC	M16-T[]-5D	M165-T[]-5D	R: red Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white
		12 VAC/VDC	M16-T[]-12D	M165-T[]-12D
		24 VAC/VDC	M16-T[]-24D	M165-T[]-24D
	Incandescent lamp	5 VAC/VDC	M16-T[]-5	M165-T[]-5	R: red Y: yellow G: green A: blue W: white PY: pure yellow
		12 VAC/VDC	M16-T[]-12	M165-T[]-12
		24 VAC/VDC	M16-T[]-24	M165-T[]-24

Note:Neon lamps are not available with models that are ordered as a set. They must be ordered individually if required.

*Enter the desired color symbol into the box in the model number.

Ordering Individually

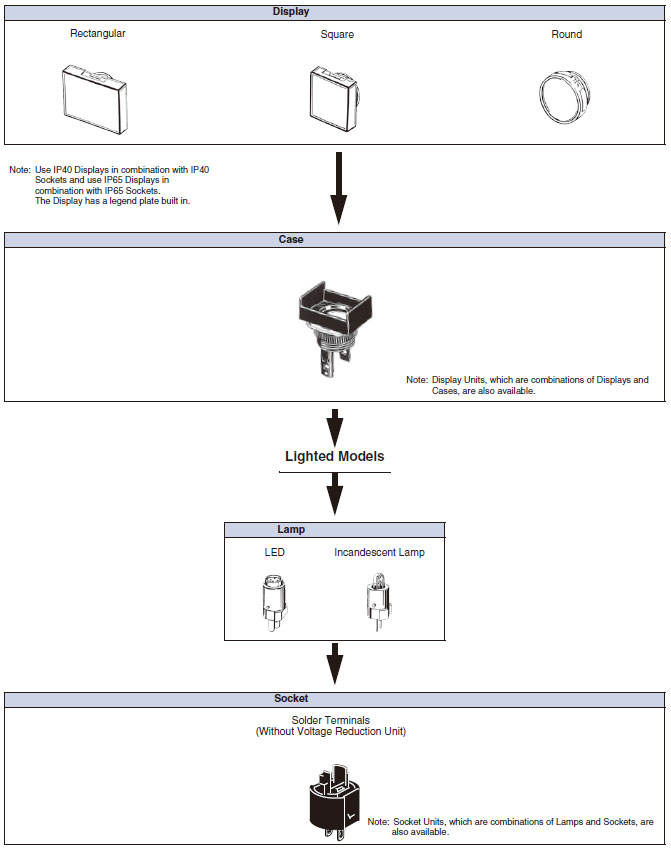

Displays, Cases, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual parts. Also, store the parts as spares for maintenance and repairs.

Sets

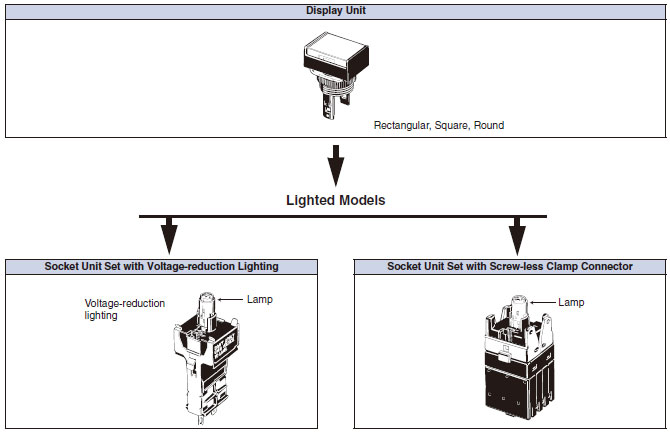

Sets that combined a Display and Cases are also available.

Display Set

Appearance	Classification		Model
	IP40	Rectangular (2-way guard)	A16-J[]M
		Square (2-way guard)	A16-A[]M
		Round (projecting model)	A16-T[]M
	Oil-resistant IP65	Rectangular (2-way guard)	A165-J[]M
		Square (2-way guard)	A165-A[]M
		Round (projecting model)	A165-T[]M

Insert one of the following symbols into the box in the model number.

*Use this pushbutton color if the illumination color of the LED is white or pure white.

Socket Unit Sets with Incandescent Lamps

Appearance	Classification		Model
	5 V	Solder terminals	M16-5
	12 V		M16-12
	24 V		M16-24

Socket Unit Sets with LEDs

Appearance	Classification	Model
	Solder terminals

Socket Unit Sets with Voltage-reduction Lighting (Solder Terminals)

Appearance	Classification	Model
	100/110 VAC/VDC

Note:The LED has 24-VAC/VDC circuit built in.

Socket Unit Sets with Screw-less Clamp Connectors

Appearance	Classification			Model
	Display	No voltage-reduction lighting
		Voltage-reduction lighting (See note.)	100/110 VAC/VDC
			200/220 VAC/VDC

Note:

1.The LED built into the 100-V model is 24 VAC/VDC.

2.The LED built into the 200-V model is high-intensity 24 VAC/VDC.

Insert symbols into the boxes with circled numbers.

Display

For LED-lighted Models

Sealing	IP40			IP65 oil-resistant
Appearance Color of Display	Rectangular	Square	Round	Rectangular	Square	Round
Red	A16L-JR	A16L-AR	A16L-TR	A165L-JR	A165L-AR	A165L-TR
Yellow	A16L-JY	A16L-AY	A16L-TY	A165L-JY	A165L-AY	A165L-TY
Pure yellow	A16L-JPY	A16L-APY	A16L-TPY	A165L-JPY	A165L-APY	A165L-TPY
Green	A16L-JGY	A16L-AGY	A16L-TGY	A165L-JGY	A165L-AGY	A165L-TGY
White	A16L-JW	A16L-AW	A16L-TW	A165L-JW	A165L-AW	A165L-TW
Blue	A16L-JA	A16L-AA	A16L-TA	A165L-JA	A165L-AA	A165L-TA

Incandescent Lamps (With the exception of green, the Units are the same as for LEDs.)

Sealing	IP40			IP65 oil-resistant
Appearance Color of Display	Rectangular	Square	Round	Rectangular	Square	Round
Red	A16L-JR	A16L-AR	A16L-TR	A165L-JR	A165L-AR	A165L-TR
Yellow	A16L-JY	A16L-AY	A16L-TY	A165L-JY	A165L-AY	A165L-TY
Pure yellow	A16L-JPY	A16L-APY	A16L-TPY	A165L-JPY	A165L-APY	A165L-TPY
Green	A16L-JG	A16L-AG	A16L-TG	A165L-JG	A165L-AG	A165L-TG
White	A16L-JW	A16L-AW	A16L-TW	A165L-JW	A165L-AW	A165L-TW
Blue	A16L-JA	A16L-AA	A16L-TA	A165L-JA	A165L-AA	A165L-TA

Lamp

LED

Operating voltage	High intensity
Color	5 VDC	12 VAC/VDC	24 VAC/VDC
Red	A16-5DSR	A16-12DSR	A16-24DSR
Yellow	A16-5DSY	A16-12DSY	A16-24DSY
Green	A16-5DSG	A16-12DSG	A16-24DSG
White *	A16-5DSW	A16-12DSW	A16-24DSW
Blue	A16-5DA	A16-12DA	A16-24DA

*Use the white LED when the required illumination color is white or pure yellow.

Incandescent Lamp

Appearance	Operating voltage	Model
	5 VAC/VDC	A16-5
	12 VAC/VDC	A16-12
	24 VAC/VDC	A16-24

Case

Appearance	Classification		Model number
	IP40	Rectangular	A16-CJM
		Square	A16-CAM
		Round	A16-CTM
	IP65 oil-resistant	Rectangular	A165-CJM
		Square	A165-CAM
		Round	A165-CTM

Socket

Appearance	Classification			Model number
Solder terminals	Solder terminals			M16-0
	PCB terminals			M16-0P
	Screw-Less Clamp			M16-S
	Solder terminals	Voltage-reduction lighting	100 V	M16-T1
	Screw-less Clamp		100 V	M16-T1-S
			200 V	M16-T2-S
