Pushbutton Switch (Cylindrical 22/25-dia.)

A22

A22

Install in 22-dia. or 25-dia. Panel Cutout (When Using a Ring)

Related Contents

Primary Contents



Completely Assembled

Shipped as a set which includes the Pushbutton, Lamp (lighted type only), and Switch.

Non-lighted (Round Type)

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputSetSet
Round/Flat type
A22-F
SPST-NOA22-F[]-10MA22-F[]-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
B (black)
SPST-NCA22-F[]-01MA22-F[]-01A
SPST-NO + SPST-NCA22-F[]-11MA22-F[]-11A
DPST-NOA22-F[]-20MA22-F[]-20A
DPST-NCA22-F[]-02MA22-F[]-02A
Round/Projection type
A22-T
SPST-NOA22-T[]-10MA22-T[]-10A
SPST-NCA22-T[]-01MA22-T[]-01A
SPST-NO + SPST-NCA22-T[]-11MA22-T[]-11A
SPST-NO + SPST-NOA22-T[]-20MA22-T[]-20A
SPST-NC + SPST-NCA22-T[]-02MA22-T[]-02A
Round/Full-guard type
A22-G
SPST-NOA22-G[]-10MA22-G[]-10A
SPST-NCA22-G[]-01MA22-G[]-01A
SPST-NO + SPST-NCA22-G[]-11MA22-G[]-11A
SPST-NO + SPST-NOA22-G[]-20MA22-G[]-20A
SPST-NC + SPST-NCA22-G[]-02MA22-G[]-02A
Round/Half-guard type
A22-H
SPST-NOA22-H[]-10MA22-H[]-10A
SPST-NCA22-H[]-01MA22-H[]-01A
SPST-NO + SPST-NCA22-H[]-11MA22-H[]-11A
SPST-NO + SPST-NOA22-H[]-20MA22-H[]-20A
SPST-NC + SPST-NCA22-H[]-02MA22-H[]-02A
Round/Small-size Mushroom type
(30-dia. head)
A22-S
SPST-NOA22-S[]-10M---
SPST-NCA22-S[]-01M
SPST-NO + SPST-NCA22-S[]-11M
SPST-NO + SPST-NOA22-S[]-20M
SPST-NC + SPST-NCA22-S[]-02M
Round/Medium-size Mushroom type
(40-dia head)
A22-M
SPST-NOA22-M[]-10M
SPST-NCA22-M[]-01M
SPST-NO + SPST-NCA22-M[]-11M
SPST-NO + SPST-NOA22-M[]-20M
SPST-NC + SPST-NCA22-M[]-02M

Note:The contact ratings are for standard loads.

Non-lighted (Square Type)

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputSetSet
Square/Projection type
A22-C
SPST-NOA22-C[]-10MA22-C[]-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
B (black)
SPST-NCA22-C[]-01MA22-C[]-01A
SPST-NO + SPST-NCA22-C[]-11MA22-C[]-11A
SPST-NO + SPST-NOA22-C[]-20MA22-C[]-20A
SPST-NC + SPST-NCA22-C[]-02MA22-C[]-02A
Square/Guard type
A22-D
SPST-NOA22-D[]-10MA22-D[]-10A
SPST-NCA22-D[]-01MA22-D[]-01A
SPST-NO + SPST-NCA22-D[]-11MA22-D[]-11A
SPST-NO + SPST-NOA22-D[]-20MA22-D[]-20A
SPST-NC + SPST-NCA22-D[]-02MA22-D[]-02A

Note:The contact ratings are for standard loads.

Lighted (Round Type)

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputLightingOperating
voltage		SetSet
Round/Projection type
LED lighting
(without Voltage
Reduction Unit)
A22L-T
SPST-NOLED6 VDCA22L-T[]-6D-10MA22L-T[]-6D-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
6 VACA22L-T[]-6A-10MA22L-T[]-6A-10A
12 VAC/
VDC		A22L-T[]-12A-10MA22L-T[]-12A-10A
24 VAC/
VDC		A22L-T[]-24A-10MA22L-T[]-24A-10A
SPST-NC6 VDCA22L-T[]-6D-01MA22L-T[]-6D-01A
6 VACA22L-T[]-6A-01MA22L-T[]-6A-01A
12 VAC/
VDC		A22L-T[]-12A-01MA22L-T[]-12A-01A
24 VAC/
VDC		A22L-T[]-24A-01MA22L-T[]-24A-01A
SPST-NO +
SPST-NC		6 VDCA22L-T[]-6D-11MA22L-T[]-6D-11A
6 VACA22L-T[]-6A-11MA22L-T[]-6A-11A
12 VAC/
VDC		A22L-T[]-12A-11MA22L-T[]-12A-11A
24 VAC/
VDC		A22L-T[]-24A-11MA22L-T[]-24A-11A
SPST-NO +
SPST-NO		6 VDCA22L-T[]-6D-20MA22L-T[]-6D-20A
6 VACA22L-T[]-6A-20MA22L-T[]-6A-20A
12 VAC/
VDC		A22L-T[]-12A-20MA22L-T[]-12A-20A
24 VAC/
VDC		A22L-T[]-24A-20MA22L-T[]-24A-20A
SPST-NC +
SPST-NC		6 VDCA22L-T[]-6D-02MA22L-T[]-6D-02A
6 VACA22L-T[]-6A-02MA22L-T[]-6A-02A
12 VAC/
VDC		A22L-T[]-12A-02MA22L-T[]-12A-02A
24 VAC/
VDC		A22L-T[]-24A-02MA22L-T[]-24A-02A
Round/Projection type
LED voltage-reduction
lighting
(with Voltage
Reduction Unit)
A22L-T
SPST-NO100 VACA22L-T[]-T1-10MA22L-T[]-T1-10A
200 VACA22L-T[]-T2-10MA22L-T[]-T2-10A
SPST-NC100 VACA22L-T[]-T1-01MA22L-T[]-T1-01A
200 VACA22L-T[]-T2-01MA22L-T[]-T2-01A
SPST-NO +
SPST-NC		100 VACA22L-T[]-T1-11MA22L-T[]-T1-11A
200 VACA22L-T[]-T2-11MA22L-T[]-T2-11A
SPST-NO +
SPST-NO		100 VACA22L-T[]-T1-20MA22L-T[]-T1-20A
200 VACA22L-T[]-T2-20MA22L-T[]-T2-20A
SPST-NC +
SPST-NC		100 VACA22L-T[]-T1-02MA22L-T[]-T1-02A
200 VACA22L-T[]-T2-02MA22L-T[]-T2-02A

Note:The contact ratings are for standard loads.

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputLightingOperating
voltage		SetSet
Round/Half-guard type
LED lighting
(without Voltage
Reduction Unit)
A22L-H
SPST-NOLED24 VAC/VDCA22L-H[]-24A-10MA22L-H[]-24A-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
SPST-NCA22L-H[]-24A-01MA22L-H[]-24A-01A
SPST-NO + SPST-NCA22L-H[]-24A-11MA22L-H[]-24A-11A
SPST-NO + SPST-NOA22L-H[]-24A-20MA22L-H[]-24A-20A
SPST-NC + SPST-NCA22L-H[]-24A-02MA22L-H[]-24A-02A
Round/Half-guard type
LED voltage-reduction
lighting
(with Voltage
Reduction Unit)
A22L-H
SPST-NO100 VACA22L-H[]-T1-10MA22L-H[]-T1-10A
200 VACA22L-H[]-T2-10MA22L-H[]-T2-10A
SPST-NC100 VACA22L-H[]-T1-01MA22L-H[]-T1-01A
200 VACA22L-H[]-T2-01MA22L-H[]-T2-01A
SPST-NO + SPST-NC100 VACA22L-H[]-T1-11MA22L-H[]-T1-11A
200 VACA22L-H[]-T2-11MA22L-H[]-T2-11A
SPST-NO + SPST-NO100 VACA22L-H[]-T1-20MA22L-H[]-T1-20A
200 VACA22L-H[]-T2-20MA22L-H[]-T2-20A
SPST-NC + SPST-NC100 VACA22L-H[]-T1-02MA22L-H[]-T1-02A
200 VACA22L-H[]-T2-02MA22L-H[]-T2-02A

Note:The contact ratings are for standard loads.

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputLightingOperating
voltage		SetSet
Round/Full-guard type
LED lighting
(without Voltage
Reduction Unit)
A22L-G
SPST-NOLED6 VDCA22L-G[]-6D-10MA22L-G[]-6D-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
6 VACA22L-G[]-6A-10MA22L-G[]-6A-10A
12 VAC/
VDC		A22L-G[]-12A-10MA22L-G[]-12A-10A
24 VAC/
VDC		A22L-G[]-24A-10MA22L-G[]-24A-10A
SPST-NC6 VDCA22L-G[]-6D-01MA22L-G[]-6D-01A
6 VACA22L-G[]-6A-01MA22L-G[]-6A-01A
12 VAC/
VDC		A22L-G[]-12A-01MA22L-G[]-12A-01A
24 VAC/
VDC		A22L-G[]-24A-01MA22L-G[]-24A-01A
SPST-NO +
SPST-NC		6 VDCA22L-G[]-6D-11MA22L-G[]-6D-11A
6 VACA22L-G[]-6A-11MA22L-G[]-6A-11A
12 VAC/
VDC		A22L-G[]-12A-11MA22L-G[]-12A-11A
24 VAC/
VDC		A22L-G[]-24A-11MA22L-G[]-24A-11A
SPST-NO +
SPST-NO		6 VDCA22L-G[]-6D-20MA22L-G[]-6D-20A
6 VACA22L-G[]-6A-20MA22L-G[]-6A-20A
12 VAC/
VDC		A22L-G[]-12A-20MA22L-G[]-12A-20A
24 VAC/
VDC		A22L-G[]-24A-20MA22L-G[]-24A-20A
SPST-NC +
SPST-NC		6 VDCA22L-G[]-6D-02MA22L-G[]-6D-02A
6 VACA22L-G[]-6A-02MA22L-G[]-6A-02A
12 VAC/
VDC		A22L-G[]-12A-02MA22L-G[]-12A-02A
24 VAC/
VDC		A22L-G[]-24A-02MA22L-G[]-24A-02A
Round/Full-guard type LED
voltage-reduction lighting
(with Voltage Reduction Unit)
A22L-G
SPST-NO100 VACA22L-G[]-T1-10MA22L-G[]-T1-10A
200 VACA22L-G[]-T2-10MA22L-G[]-T2-10A
SPST-NC100 VACA22L-G[]-T1-01MA22L-G[]-T1-01A
200 VACA22L-G[]-T2-01MA22L-G[]-T2-01A
SPST-NO +
SPST-NC		100 VACA22L-G[]-T1-11MA22L-G[]-T1-11A
200 VACA22L-G[]-T2-11MA22L-G[]-T2-11A
SPST-NO +
SPST-NO		100 VACA22L-G[]-T1-20MA22L-G[]-T1-20A
200 VACA22L-G[]-T2-20MA22L-G[]-T2-20A
SPST-NC +
SPST-NC		100 VACA22L-G[]-T1-02MA22L-G[]-T1-02A
200 VACA22L-G[]-T2-02MA22L-G[]-T2-02A

Note:The contact ratings are for standard loads.

Lighted (Square Type)

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputLightingOperating
voltage		SetSet
Square/Projection type
LED lighting
(without Voltage
Reduction Unit)
A22L-C
SPST-NOLED24 VAC/
VDC		A22L-C[]-24A-10MA22L-C[]-24A-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
SPST-NCA22L-C[]-24A-01MA22L-C[]-24A-01A
SPST-NO +
SPST-NC		A22L-C[]-24A-11MA22L-C[]-24A-11A
SPST-NO +
SPST-NO		A22L-C[]-24A-20MA22L-C[]-24A-20A
SPST-NC +
SPST-NC		A22L-C[]-24A-02MA22L-C[]-24A-02A
Square/Projection type LED
voltage-reduction lighting
(with Voltage Reduction Unit)
A22L-C
SPST-NO100 VACA22L-C[]-T1-10MA22L-C[]-T1-10A
200 VACA22L-C[]-T2-10MA22L-C[]-T2-10A
SPST-NC100 VACA22L-C[]-T1-01MA22L-C[]-T1-01A
200 VACA22L-C[]-T2-01MA22L-C[]-T2-01A
SPST-NO +
SPST-NC		100 VACA22L-C[]-T1-11MA22L-C[]-T1-11A
200 VACA22L-C[]-T2-11MA22L-C[]-T2-11A
SPST-NO +
SPST-NO		100 VACA22L-C[]-T1-20MA22L-C[]-T1-20A
200 VACA22L-C[]-T2-20MA22L-C[]-T2-20A
SPST-NC +
SPST-NC		100 VACA22L-C[]-T1-02MA22L-C[]-T1-02A
200 VACA22L-C[]-T2-02MA22L-C[]-T2-02A

Note:The contact ratings are for standard loads.

OperationMomentary operation (self-resetting)Alternate operation (self-holding)Illumination color
AppearanceOutputLightingOperating
voltage		SetSet
Square/Full-guard type
LED lighting
(without Voltage
Reduction Unit)
A22L-D
SPST-NOLED24 VAC/
VDC		A22L-D[]-24A-10MA22L-D[]-24A-10AR (red)
Y (yellow)
G (green)
W (white)
A (blue)
SPST-NCA22L-D[]-24A-01MA22L-D[]-24A-01A
SPST-NO +
SPST-NC		A22L-D[]-24A-11MA22L-D[]-24A-11A
SPST-NO +
SPST-NO		A22L-D[]-24A-20MA22L-D[]-24A-20A
SPST-NC +
SPST-NC		A22L-D[]-24A-02MA22L-D[]-24A-02A
Square/Full-guard type LED
voltage-reduction lighting
(with Voltage Reduction Unit)
A22L-D
SPST-NO100 VACA22L-D[]-T1-10MA22L-D[]-T1-10A
200 VACA22L-D[]-T2-10MA22L-D[]-T2-10A
SPST-NC100 VACA22L-D[]-T1-01MA22L-D[]-T1-01A
200 VACA22L-D[]-T2-01MA22L-D[]-T2-01A
SPST-NO +
SPST-NC		100 VACA22L-D[]-T1-11MA22L-D[]-T1-11A
200 VACA22L-D[]-T2-11MA22L-D[]-T2-11A
SPST-NO +
SPST-NO		100 VACA22L-D[]-T1-20MA22L-D[]-T1-20A
200 VACA22L-D[]-T2-20MA22L-D[]-T2-20A
SPST-NC +
SPST-NC		100 VACA22L-D[]-T1-02MA22L-D[]-T1-02A
200 VACA22L-D[]-T2-02MA22L-D[]-T2-02A

Note:The contact ratings are for standard loads.

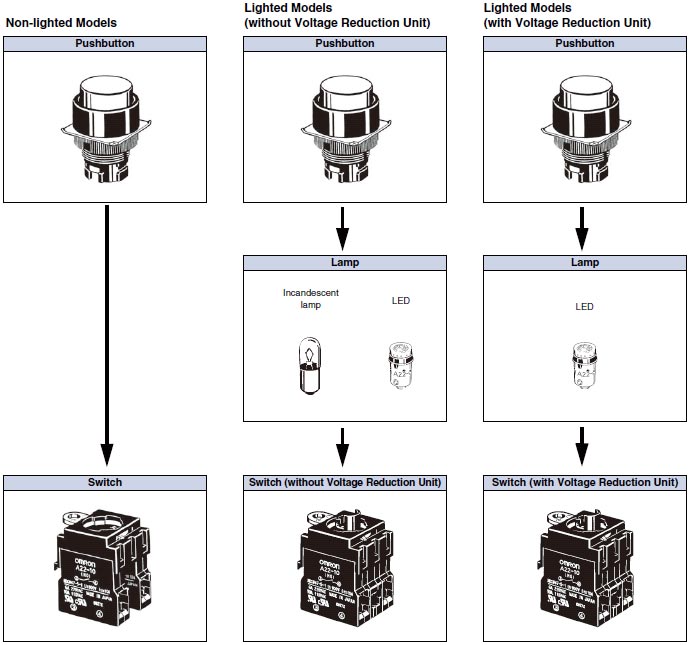

Subassembled

The Pushbutton, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for aintenance parts.

A22_Lineup8

Pushbutton

Non-lighted

SealingIP65 oil-resistant models
AppearanceFlat type
Projection type
Full-guard type
Half-guard type
ColorModelModelModelModel
RedA22-FRA22-TRA22-GRA22-HR
GreenA22-FGA22-TGA22-GGA22-HG
YellowA22-FYA22-TYA22-GYA22-HY
WhiteA22-FWA22-TWA22-GWA22-HW
BlueA22-FAA22-TAA22-GAA22-HA
BlackA22-FBA22-TBA22-GBA22-HB

SealingIP65 oil-resistant models
AppearanceRound/Mushroom type
(30-dia. head)
Round/Mushroom type
(40-dia. head)
Square/Projection type
Square/Full-guard type
ColorModelModelModelModel
RedA22-SRA22-MRA22-CRA22-DR
GreenA22-SGA22-MGA22-CGA22-DG
YellowA22-SYA22-MYA22-CYA22-DY
WhiteA22-SWA22-MWA22-CWA22-DW
BlueA22-SAA22-MAA22-CAA22-DA
BlackA22-SBA22-MBA22-CBA22-DB

Lighted

SealingIP65
AppearanceProjection type
Full-guard type
Half-guard type
ColorModelModelModel
RedA22-TRA22-GRA22-HR
GreenA22-TGA22-GGA22-HG
YellowA22-TYA22-GYA22-HY
WhiteA22-TWA22-GWA22-HW
BlueA22-TAA22-GAA22-HA

Note:Common to incandescent lamps and LED lamps.

SealingIP65
AppearanceSquare/Projection type
Square/Full-guard type
ColorModelModel
RedA22-CRA22-DR
GreenA22-CGA22-DG
YellowA22-CYA22-DY
WhiteA22-CWA22-DW
BlueA22-CAA22-DA

Lamp

LED Lamp

Operating voltage6 V12 V24 V24 V Super-bright
AppearanceLED lightModelModelModelModel
DCRedA22-6DR---------
GreenA22-6DG---------
Yellow * 2A22-6DY---------
BlueA22-6DA---------
ACRedA22-6AR---------
GreenA22-6AG---------
Yellow * 2A22-6AY---------
BlueA22-6AA---------
AC and DCRed---A22-12ARA22-24ARA22-24ASR
Green---A22-12AGA22-24AGA22-24ASG
Yellow * 2---A22-12AYA22-24AYA22-24ASY
Blue---A22-12AAA22-24AAA22-24ASA

*1.For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.

*2.Used when the Pushbutton color is yellow or white.

Incandescent Lamp

Appearance
Operating
voltage		5 VAC/VDC12 VAC/VDC24 VAC/VDC
A22-5A22-12A22-24

Switch (Standard Load)

No Voltage Reduction Unit

Classification

Appearance		Non-lighted
Lighted
OperationMomentaryAlternateMomentaryAlternate
ContactsModelModelModelModel
Standard loadSPST-NOA22-10MA22-10AA22L-10MA22L-10A
SPST-NCA22-01MA22-01AA22L-01MA22L-01A
SPST-NO + SPST-NCA22-11MA22-11AA22L-11MA22L-11A
SPST-NO + SPST-NOA22-20MA22-20AA22L-20MA22L-20A
SPST-NC + SPST-NCA22-02MA22-02AA22L-02MA22L-02A

Voltage Reduction Unit

Classification

Appearance		110 VAC, Lighted
220 VAC, Lighted
OperationMomentaryAlternateMomentaryAlternate
ContactsModelModelModelModel
Standard loadSPST-NOA22L-10M-T1A22L-10A-T1A22L-10M-T2A22L-10A-T2
SPST-NCA22L-01M-T1A22L-01A-T1A22L-01M-T2A22L-01A-T2
SPST-NO + SPST-NCA22L-11M-T1A22L-11A-T1A22L-11M-T2A22L-11A-T2
SPST-NO + SPST-NOA22L-20M-T1A22L-20A-T1A22L-20M-T2A22L-20A-T2
SPST-NC + SPST-NCA22L-02M-T1A22L-02A-T1A22L-02M-T2A22L-02A-T2

*1.A DPST-NO model is shown here as an example.

*2.For a model with a Voltage Reduction Unit, use the A22-24A[]. Only 24-V LED lamps can be used.

Accessories(Optional)

Accessories

ItemAppearanceClassificationModelRemarks
Switch Blocks
SPST-NOStandard loadA22-10Order Switch Blocks to add an SPST-NO (A22-10) or SPST-NC (A22-01) Switch Block (for standard loads) or to replace a Switch Block.
MicroloadA22-10S
SPST-NCStandard loadA22-01
MicroloadA22-01S
DPST-NOStandard loadA22-20
MicroloadA22-20S
DPST-NCStandard loadA22-02
MicroloadA22-02S
SPST-NO + SPST-NCStandard loadA22-11S
MicroloadA22-11S
Lamp Sockets
Direct lightingA22-TN
Voltage-reduction lighting110 VACA22-T1Used when changing the lighting method. (LED only)
220 VACA22-T2
Mounting Latches
For momentary modelsA22-3200Provided as standard. Order Mounting Latches only when mounting Switch Blocks or Lamp Sockets that are purchased individually.
For alternate modelsA22-3210
Legend
Plate
Frames		Standard
size
With Snap-in Legend Plate (Without text)WhiteA22Z-3321Snap-in Legend Plate is acrylic.
RedA22Z-3322
BlackA22Z-3323
Without Snap-in Legend PlateA22Z-3320
Large
size
With Snap-in Legend Plate (Without text)WhiteA22Z-3331Snap-in Legend Plate is acrylic.
RedA22Z-3332
BlackA22Z-3333
Without Snap-in Legend PlateA22Z-3330
Lock Ring
RoundA22Z-3360This Lock Ring is used when a more secure lock feature is required.
Metallic Bezel Rings
For flat or projection modelsA22Z-3580Replace with the standard model.
Material: nickel-plated zinc
Cannot be used with the M22.
For full-guard modelsA22Z-3582
Sealing Caps
For flat modelsA22Z-3600FUsed to prevent dust or water from entering the Operation Unit (Pushbutton, etc.).
Color: opaque
Material: silicon
For projection modelsA22Z-3600T
For full-guard modelsA22Z-3600G
Color Caps
RedA22Z-30TRUsed for changing the Pushbutton color of the (round) Pushbutton Switches. Cannot be used, however, with Half-guard Switches.
GreenA22Z-30TG
YellowA22Z-30TY
WhiteA22Z-30TW
BlueA22Z-30TA
CapsFor A22
For projection, full-guard, or half-guard modelsA22Z-3490Material: polycarbonate resin
For M22For round modelsA22Z-3495
Three-throw Spacer
---A22Z-3003Used when mounting three Nonlighted Switches. Cannot be used with Alternate, Emergency Stop, Knob-type Selector, Key-type Selector, or Mushroom-type Switches.
Hole Plug
RoundA22Z-3530Can be plugged into pre-cut panel holes for future expansion. The color is black.
Control Boxes
(Enclosures)
One holeExclusively for A22A22Z-B101For those designed exclusively for A22, DPST-NO or DPST-NC Switches cannot be used.

A3T-compatible Control Boxes, A22-series alternate operation models, and DPST-NO, DPST-NC, and SPST-NO + SPST-NC contacts cannot be used.

Material: Polycarbonate resin
Compatible with A3TA22Z-B201
One hole, yellow box
(for emergency stop)		Exclusively for A22A22Z-B101Y
Compatible with A3TA22Z-B201Y
Two holesExclusively for A22A22Z-B102
Compatible with A3TA22Z-B202
Three holesExclusively for A22A22Z-B103
Compatible with A3TA22Z-B203
Connectors
Applicable cable diameter (mm)7 to 9 dia.A22Z-3500-1Plastic connector used to extend a cable from the Switch Box.
9 to 11 dia.A22Z-3500-2

ItemAppearanceClassificationModelRemarks
25-dia. Ring
---A22Z-R25Use when mounting to a panel with
a 25-dia. hole. For details, refer to datasheet.
Since this is not attached to the main body, order separately.
30-dia. Resin Attachment
RoundA22Z-A30Use when mounting to a panel with a 30-dia. hole.
Lock Plate
---A22Z-3380Use to fix the lever on the Switch.
Simple
Protective
Cover
---A22Z-3700Prevents foreign matter entering
into the Switch from the back of the panel.

ItemAppearanceClassificationModelRemarks
Snap-in Legend PlatesStandard size
Without textBlackA22Z-3443BAttached to the Standard-size Legend Plate Frame.
Material: Acrylic
RedA22Z-3443R
WhiteA22Z-3443W
TransparentA22Z-3443C
With textWhite text on red background
A22Z-3443R-2
STOPA22Z-3443R-4
STOPA22Z-3443R-J4
Black text on red backgroundEMERGENCY STOPA22Z-3443R-J1
White text on black background|A22Z-3443B-1
STARTA22Z-3443B-3
ONA22Z-3443B-5
OFFA22Z-3443B-6
UPA22Z-3443B-7
DOWNA22Z-3443B-8
POWER ONA22Z-3443B-9
OFF-ONA22Z-3443B-10
AUTOA22Z-3443B-J1
MANUALA22Z-3443B-J2
STARTA22Z-3443B-J3
RESETA22Z-3443B-J4
ONA22Z-3443B-J5
OFFA22Z-3443B-J6
POWER ONA22Z-3443B-J7
RUNA22Z-3443B-J8
UPA22Z-3443B-J9
DOWNA22Z-3443B-J10
OFF-ONA22Z-3443B-J11
MANUAL-AUTOA22Z-3443B-J12
REVERSE-FORWARDA22Z-3443B-J13
CLOSE-OPENA22Z-3443B-J14
MANUAL OFF AUTOA22Z-3443B-J15
Large size
Without textBlackA22Z-3453BUsed as an Emergency Stop Switch Legend Plate.
Material: Acrylic
RedA22Z-3453R
WhiteA22Z-3453W
TransparentA22Z-3453C
For Emergency Stop Switch
Black text on yellow background60-dia. round plate with black letters on a yellow backgroundA22Z-3466-1EMERGENCY STOP is engraved on the plate. Used as an Emergency Stop Switch Legend Plate
90-dia. round plate with black letters on a yellow backgroundA22Z-3476-1
No print (Round)A22Z-3460After printing on a film, affix to the indicator plate of the Lighted Pushbutton Switch. (The back is coated with adhesive.)
Character Films
Character print
(Round)		|A22Z-3460-1
A22Z-3460-2
STARTA22Z-3460-3
STOPA22Z-3460-4
No print (Square)A22Z-3480

Tools

ItemAppearanceClassificationModelRemarks
Lamp Extractor
---A22Z-3901Rubber tool used to easily replace Lamps
Tightening Wrench
---A22Z-3905Used to tighten mounting nuts from the back of the panel and to replace the cap of the Lighted Emergency Switch.
Cap Tightening Tool
---A22Z-3908Used for replacing the cap of the Half-guard Pushbutton Switch.
Cap Puller
---A3PJ-5080Used for removing the cap from the Pushbutton of the Square Lighted Pushbutton Switch.

Local Navigation

Switches

Site Information

realizing

© Copyright OMRON Corporation 2007 - 2008. All Rights Reserved.
