M22

Completely Assembled

Shipped as a set which includes the Display, Lamp, and Socket Unit.

Indicator

Appearance		Lighting	Operating voltage	Set	Illumination color
Round/Flat without Voltage Reduction Unit M22-F		LED	6 VDC 6 VAC 12 VAC/VDC 24 VAC/VDC	M22-F [] -6D	R (red) Y (yellow) G (green) W (white) W (white)
				M22-F [] -6A
				M22-F [] -12A
				M22-F [] -24A
Round/Flat with Voltage Reduction Unit M22-F		LED	100 VAC 200 VAC	M22-F [] -T1
				M22-F [] -T2
Square/Projection without Voltage Reduction Unit M22-C		LED	6 VDC 6 VAC 12 VAC/VDC 24 VAC/VDC	M22-C [] -6D
				M22-C [] -6A
				M22-C [] -12A
				M22-C [] -24A
Square/Projection with Voltage Reduction Unit M22-C		LED	100 VAC 200 VAC	M22-C [] -T1
				M22-C [] -T2

Note: Insert a symbol indicating the color of the Operation Unit in the box in the model number above.

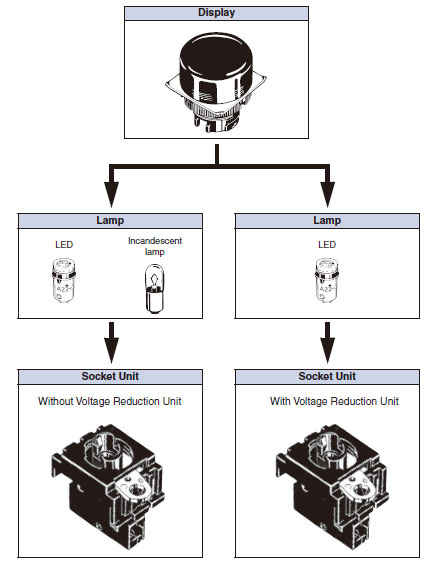

Subassembled

The Display, Lamp, or Socket Unit can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

Ordering: Specify models on the following.

Display

Sealing	IP65
Appearance	Color of Display	Model
Round (Flat)	Red	M22-FR
	Green	M22-FG
	Yellow	M22-FY
	White	M22-FW
	Blue	M22-FA
Square (Projection)	Red	M22-CR
	Green	M22-CG
	Yellow	M22-CY
	White	M22-CW
	Blue	M22-CA

Lamp

LED

Operating voltage			6 V	12 V	24 V	24 V Super-bright
Appearance	AC/DC	LED light	Model
	DC	Red	A22-6DR	--	--	--
		Green	A22-6DG	--	--	--
		Yellow *	A22-6DY	--	--	--
		Blue	A22-6DA	--	--	--
	AC	Red	A22-6AR	--	--	--
		Green	A22-6AG	--	--	--
		Yellow *	A22-6AY	--	--	--
		Blue	A22-6AA	--	--	--
	AC and DC	Red	--	A22-12AR	A22-24AR	A22-24ASR
		Green	--	A22-12AG	A22-24AG	A22-24ASG
		Yellow *	--	A22-12AY	A22-24AY	A22-24ASY
		Blue	--	A22-12AA	A22-24AA	A22-24ASA

Note: For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.
* Used when the Display color is yellow or white.

Incandescent

Appearance Operating voltage	5 VAC/VDC	12 VAC/VDC	24 VAC/VDC
	A22-5	A22-12	A22-24

Socket Unit

Appearance
Classification	Without Voltage Reduction Unit	With Voltage Reduction Unit (110 VAC)	With Voltage Reduction Unit (220 VAC)
Model	M22-00	M22-00-T1	M22-00-T2

Note: For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.

Accessories, Replacements, and Tools

The M22 uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.
