SitemapLED Displacement Sensor
Z4W-V
Low-cost Displacement Sensor with 10-micron Resolution with Red LED
Data Sheet (1684KB)
Quick links to 'Z4W-V' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.

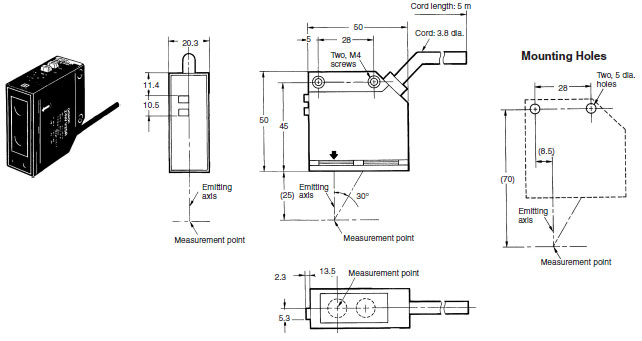

Z4W-V25R

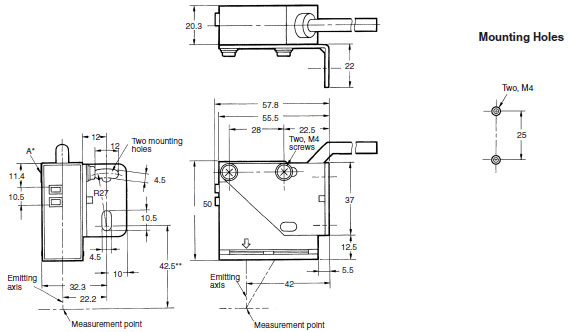

With Mounting Bracket 1
*A mounting bracket can be attached to this face of the sensor.
**This distance can be extended up to 44.5 mm. When this distance is 44.5 mm in length, the angle of the optical axis can be adjusted after mounting by approximately ±5 max.

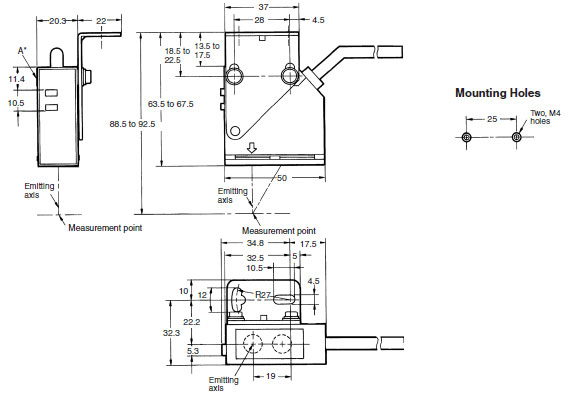

With Mounting Bracket 2
*A mounting bracket can be attached to this face of the sensor.
Caution: All units are in millimeters unless otherwise indicated.
