E3X-DA-S / MDA

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Amplifier Units

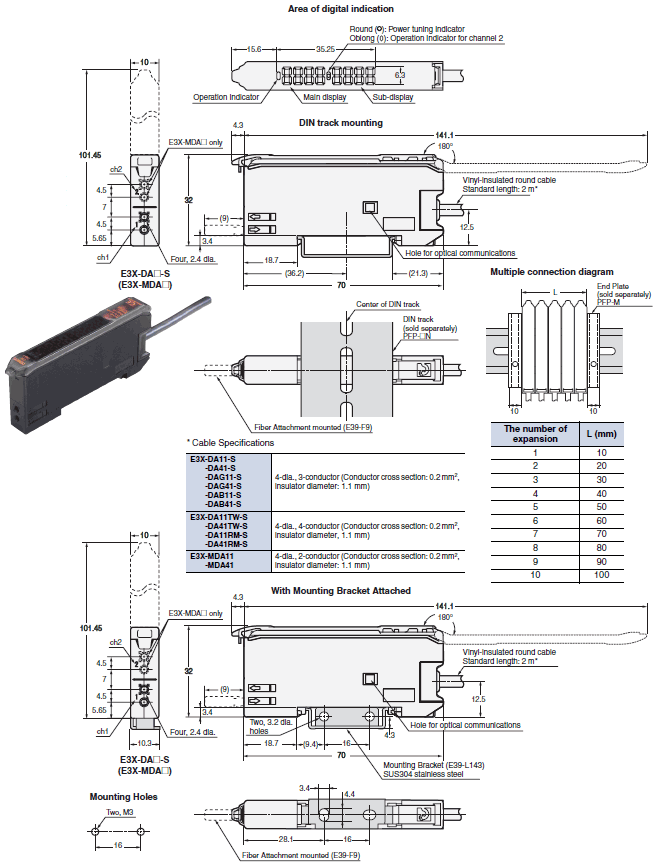

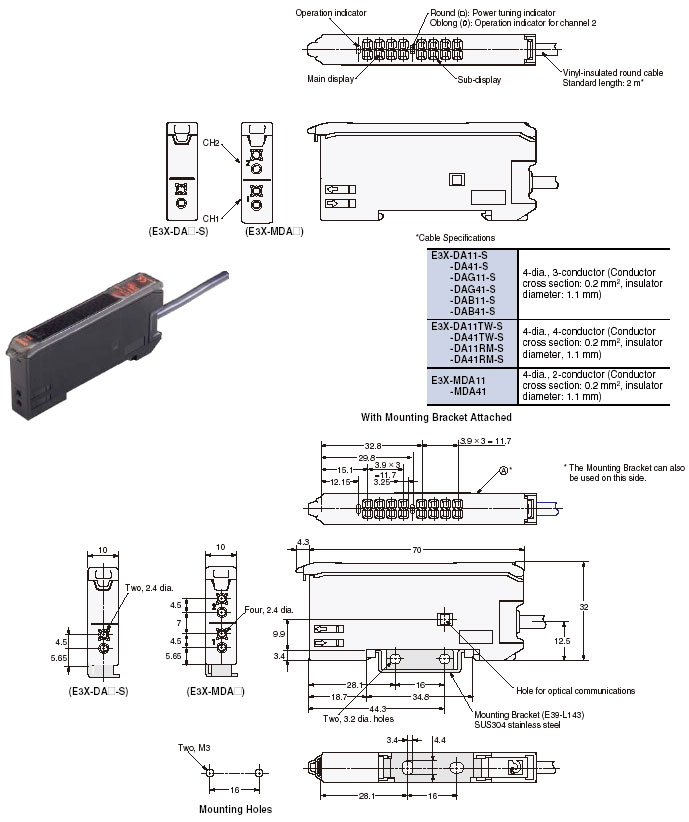

Amplifier Units with Cables
E3X-DA11-S, E3X-DA41-S,
E3X-DAG11-S, E3X-DAG41-S,
E3X-DAB11-S, E3X-DAB41-S,
E3X-DA11RM-S, E3X-DA41RM-S,
E3X-DA11TW-S, E3X-DA41TW-S,
E3X-DA11SE-S, E3X-DA41SE-S,
E3X-DA11AT-S, E3X-DA41AT-S,
E3X-DA11AN-S, E3X-DA41AN-S,
E3X-MDA11, E3X-MDA41

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

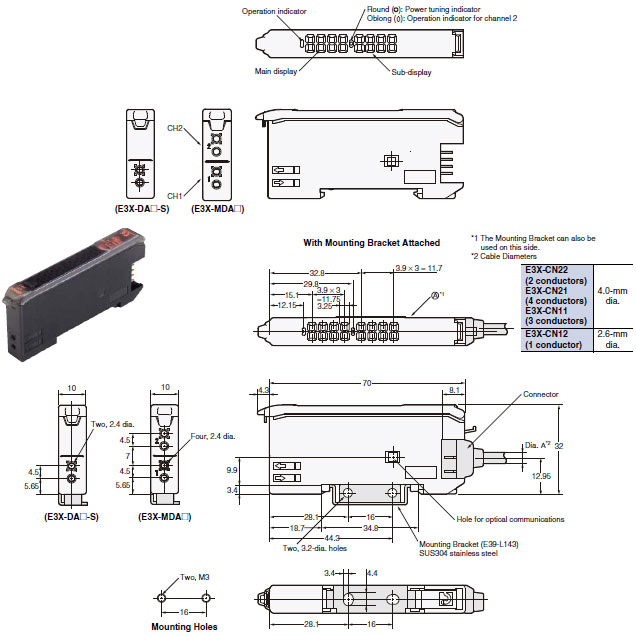

Amplifier Units with Connectors
E3X-DA6-S, E3X-DA8-S,
E3X-DAG6-S, E3X-DAG8-S,
E3X-DAB6-S, E3X-DAB8-S,
E3X-DA6RM-S, E3X-DA8RM-S,
E3X-DA6TW-S, E3X-DA8TW-S,
E3X-DA6SE-S, E3X-DA8SE-S,
E3X-DA6AT-S, E3X-DA8AT-S,
E3X-MDA6, E3X-MDA8

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

Amplifier Unit Connectors

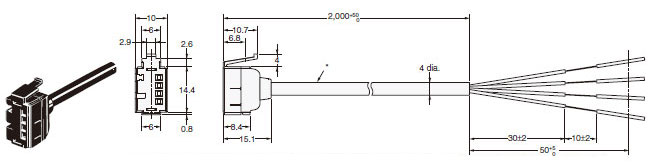

Master Connectors
E3X-CN11
E3X-CN21

*E3X-CN11: 4 dia. cable/3 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)
E3X-CN21: 4 dia. cable/4 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)

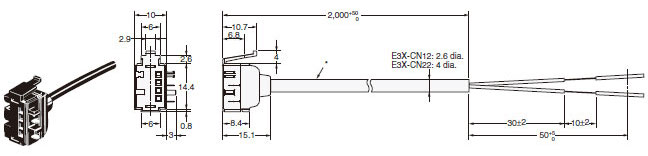

Slave Connectors
E3X-CN12
E3X-CN22

*E3X-CN12: 2.6 dia. cable/1 conductor/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)
E3X-CN22: 4 dia. cable/2 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)

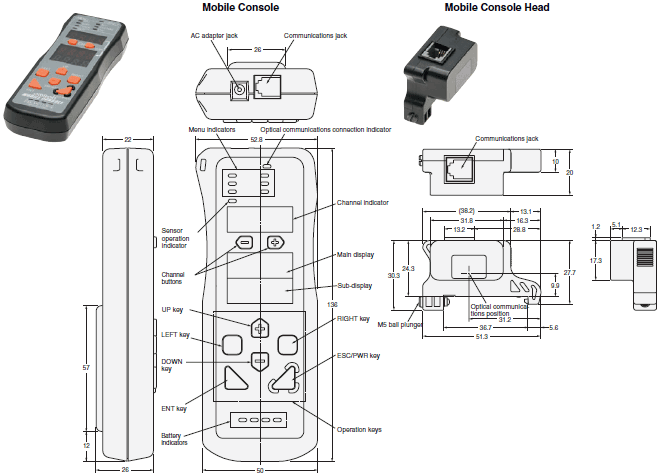

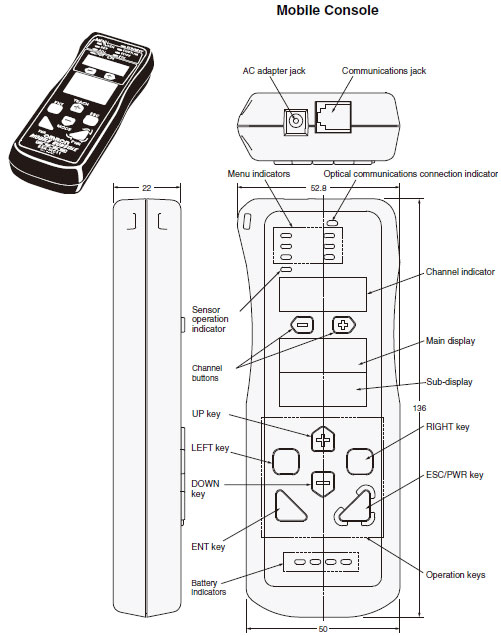

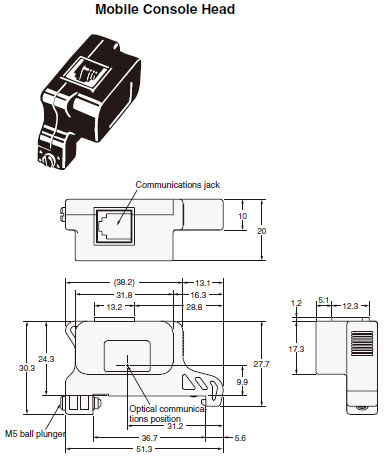

Mobile Console

E3X-MC11-SV2
