SitemapGuard Lock Safety-door Switch
D4GL
Vertically Mounting Guard Lock Safety-door Switch Ideal for Limited Installation Space
Data Sheet (3359KB)
Quick links to 'D4GL' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Switches

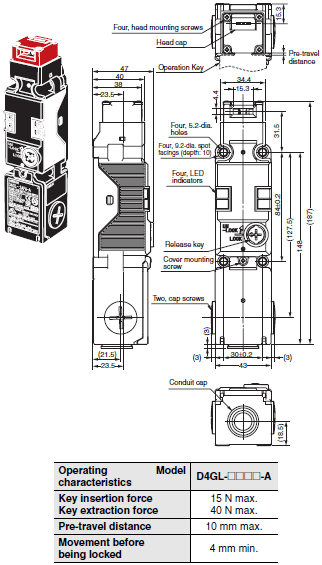

D4GL-[][][][]-A
![D4GL-[][][][]-A_Dim](img/1356_dm_1.gif)
D4GL-[][][][]-A4
![D4GL-[][][][]-A4_Dim](img/1356_dm_2.gif)
Operation Keys
D4DS-K1
D4DS-K3
D4DS-K2
D4DS-K5
Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
With Operation Key Inserted
D4GL + D4DS-K1
(with Front-inserted Operation Key)
D4GL + D4DS-K1
(with Top-inserted Operation Key)
D4GL + D4DS-K2
(with Front-inserted Operation Key)
D4GL + D4DS-K2
(with Top-inserted Operation Key)
D4GL + D4DS-K3
(with Front-inserted Operation Key)
D4GL + D4DS-K3
(with Top-inserted Operation Key)
D4GL + D4DS-K5
(with Front-inserted Operation Key)
D4GL + D4DS-K5
(with Top-inserted Operation Key)
Caution: All units are in millimeters unless otherwise indicated.
