SitemapBasic-type Digital Temperature Controller
E5GN (48 x 24 mm)
New 48 x 24-mm Basic Temperature Controller with Enhanced Functions and Performance. Improved Indication Accuracy and Preventive Maintenance Function.
Data Sheet (1157KB)
Quick links to 'E5GN (48 x 24 mm)' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.

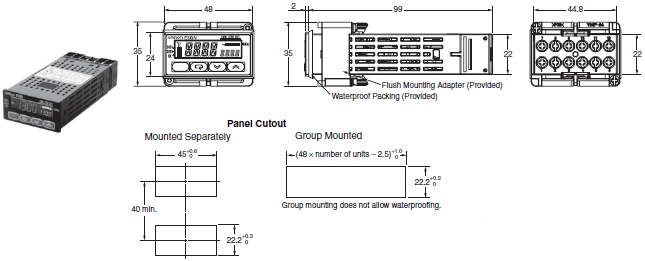

E5GN
Models with Screw Terminal Blocks
Recommended panel thickness is 1 to 5 mm.
Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

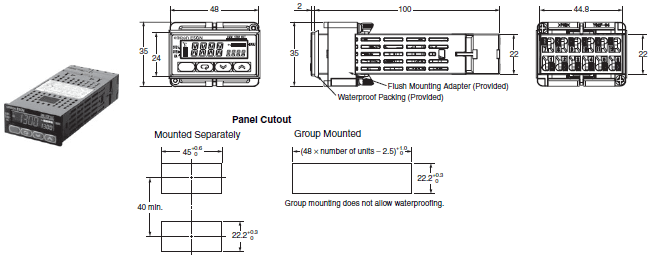

E5GN-[]-C
Models with Screwless Clamp Terminal Blocks
![E5GN-[]-C_Dim](img/1434_dm_2.gif)
Recommended panel thickness is 1 to 5 mm.
Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.
Accessories (Order Separately)
USB-Serial Conversion Cable
E58-CIFQ1
Waterproof Packing
Y92S-32 (for DIN 48 × 24)
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
Current Transformers
E54-CT1
E54-CT3
E54-CT3 Accessory
E54-CT1
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω
E54-CT3
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for the Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
Caution: All units are in millimeters unless otherwise indicated.
