SitemapDigital Controller
E5AK
Data Sheet (961KB)
Quick links to 'E5AK' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
E5AK

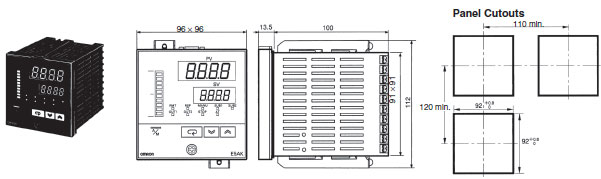

Note:
1.Recommended panel thickness is 1 to 8 mm.
2.Maintain the specified vertical and horizontal mounting space between each Unit. Units must not be closely mounted vertically or horizontally.
Accessories (Order Separately)

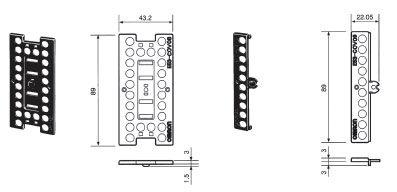

Terminal Cover
E53-COV0809
Current Transformer
E54-CT1
E54-CT3

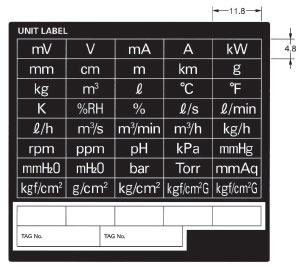

Unit Label (Order Separately)
Y92S-L1
Waterproof Packing
Y92S-P4 (for DIN 96 × 96)
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
Caution: All units are in millimeters unless otherwise indicated.
