"Safe" "Simple" "Visible" Safety controller with no need for programming

Related Contents

Primary Contents



List of Models

Safety Application Controllers

Non-delay (Instant Breaking) Models

Output typeNon-delay (instant breaking) outputsModel
Solid-state outputsContact outputs
Indicator output + contact outputNoneMain contact (DPST-NO)
Auxiliary contact (SPST-NC)		F3SX-NR
F3SX-N-[][][]R
Solid-state output2 safety outputs
1 auxiliary output		NoneF3SX-E[]
F3SX-E-[][][][]

Note: Models with multiple contact outputs are also available (RR/RRR).

OFF-delay Time Setting Models

Output typeNon-delay (instant breaking) outputsOFF-delay outputsModel
Solid-state outputsContact outputsContact outputs
Indicator output
+
contact output		NoneMain contact
(DPST-NO)
Auxiliary contact
(SPST-NC)		Main contact
(DPST-NO)
Auxiliary contact
(SPST-NC)		F3SX-N-[][]RR2
Solid-state output
+
contact output		2 safety outputs
1 auxiliary output		NoneMain contact
(DPST-NO)
Auxiliary contact
(SPST-NC)		F3SX-ER2
F3SX-E-[][][]R2

Note: The OFF-delay time for R2 models is factory-set to 0.0 s (non-delay (instant breaking)).

OFF-delay Time Fixed Models

Output typeNon-delay
(instant breaking)
outputs		OFF-delay outputsOFF-delay timeModel
Solid-state outputsContact outputs
Solid-state output
+
contact output		2 safety outputs
1 auxiliary output		Main contact
(DPST-NO)
Auxiliary contact
(SPST-NC)		0.5 s to 29.5 s
(0.5-s intervals)		F3SX-ER2-TH[][]
1 s to 60 s
(1-s intervals)		F3SX-ER2-TN[][]
70 s to 600 s
(10-s intervals)		F3SX-ER2-TW[][]

Note: The Function Setup Software for the F3SX cannot be used to change the settings for the above OFF-delay time fixed models.

ON-delay Time Fixed Models

Output typeNon-delay (instant breaking) outputsON-delay outputsON-delay timeModel
Solid-state outputsContact outputs
Solid-state output
+
contact output		2 safety outputs
1 auxiliary output		Main contact
(DPST-NO)
Auxiliary contact
(SPST-NC)		1 to 60 s
(1-s intervals)		F3SX-ER1-TN[][]

Note: The Function Setup Software for the F3SX cannot be used to change the settings for the above ON-delay time fixed models.

All models:
For details on models with [][] shown in the model numbers.

Non-delay (Instant Breaking) Models

F3SX-NR, F3SX-N-[][][]R (with External Indicator Output)

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Single-beam
Safety
Sensor
E3ZS/E3FS		Two-hand
Control
Switch		Door
Switch
1 set------------F3SX-NR45.0 mmApprox.
0.3 kg
1 set---------2 setsF3SX-N-D1R90.0 mmApprox.
0.5 kg
1 set---------4 setsF3SX-N-D1D1R112.5 mmApprox.
0.6 kg
1 set---------6 setsF3SX-N-D1D1D1R135.0 mmApprox.
0.7 kg
1 set2 sets---------F3SX-N-L2R90.0 mmApprox.
0.5 kg
1 set4 sets---------F3SX-N-L2L2R112.5 mmApprox.
0.6 kg
1 set2 sets------2 setsF3SX-N-L2D1R112.5 mmApprox.
0.6 kg
1 set4 sets------2 setsF3SX-N-L2L2D1R135.0 mmApprox.
0.7 kg
1 set2 sets------4 setsF3SX-N-L2D1D1R135.0 mmApprox.
0.7 kg
1 set1 set---1 set---F3SX-N-L1R90.0 mmApprox.
0.5 kg
1 set1 set---1 set2 setsF3SX-N-L1D1R112.5 mmApprox.
0.6 kg
1 set1 set---1 set4 setsF3SX-N-L1D1D1R135.0 mmApprox.
0.7 kg
1 set---4 sets------F3SX-N-B1R90.0 mmApprox.
0.5 kg
1 set---4 sets---2 setsF3SX-N-B1D1R112.5 mmApprox.
0.6 kg
1 set---4 sets---4 setsF3SX-N-B1D1D1R135.0 mmApprox.
0.7 kg
1 set2 sets4 sets------F3SX-N-L2B1R112.5 mmApprox.
0.6 kg

*For details on the width, refer to "Dimensions" .

F3SX-E[]/F3SX-E-[][][][] (with DC Solid-state Safety Output)

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Single-beam
Safety
Sensor
E3ZS/E3FS		Two-hand
Control
Switch		Door Switch
1 set------------F3SX-E22.5 mmApprox.
0.3 kg
1 set---------2 setsF3SX-ED145.0 mmApprox.
0.3 kg
1 set---------2 setsF3SX-ED145.0 mmApprox.
0.3 kg
1 set---------4 setsF3SX-E-D1D167.5 mmApprox.
0.4 kg
1 set---------4 setsF3SX-E-D1D167.5 mmApprox.
0.4 kg
1 set---------6 setsF3SX-E-D1D1D190.0 mmApprox.
0.5 kg
1 set---------6 setsF3SX-E-D1D1D190.0 mmApprox.
0.5 kg
1 set---------8 setsF3SX-E-D1D1D1D1112.5 mmApprox.
0.6 kg
1 set---------8 setsF3SX-E-D1D1D1D1112.5 mmApprox.
0.6 kg
1 set2 sets---------F3SX-EL245.0 mmApprox.
0.3 kg
1 set2 sets---------F3SX-EL245.0 mmApprox.
0.3 kg
1 set2 sets------2 setsF3SX-E-L2D167.5 mmApprox.
0.4 kg
1 set2 sets------2 setsF3SX-E-L2D167.5 mmApprox.
0.4 kg
1 set2 sets------4 setsF3SX-E-L2D1D190.0 mmApprox.
0.5 kg
1 set2 sets------4 setsF3SX-E-L2D1D190.0 mmApprox.
0.5 kg
1 set2 sets------6 setsF3SX-E-L2D1D1D1112.5 mmApprox.
0.6 kg
1 set2 sets------6 setsF3SX-E-L2D1D1D1112.5 mmApprox.
0.6 kg
1 set4 sets---------F3SX-E-L2L267.5 mmApprox.
0.4 kg
1 set4 sets---------F3SX-E-L2L267.5 mmApprox.
0.4 kg
1 set4 sets------2 setsF3SX-E-L2L2D190.0 mmApprox.
0.5 kg
1 set4 sets------2 setsF3SX-E-L2L2D190.0 mmApprox.
0.5 kg
1 set4 sets------4 setsF3SX-E-L2L2D1D1112.5 mmApprox.
0.6 kg
1 set4 sets------4 setsF3SX-E-L2L2D1D1112.5 mmApprox.
0.6 kg
1 set1 set---1 set---F3SX-EL145.0 mmApprox.
0.3 kg
1 set1 set---1 set---F3SX-EL145.0 mmApprox.
0.3 kg
1 set1 set---1 set2 setsF3SX-E-L1D167.5 mmApprox.
0.4 kg
1 set1 set---1 set2 setsF3SX-E-L1D167.5 mmApprox.
0.4 kg
1 set1 set---1 set4 setsF3SX-E-L1D1D190.0 mmApprox.
0.5 kg
1 set1 set---1 set4 setsF3SX-E-L1D1D190.0 mmApprox.
0.5 kg
1 set1 set---1 set6 setsF3SX-E-L1D1D1D1112.5 mmApprox.
0.6 kg
1 set1 set---1 set6 setsF3SX-E-L1D1D1D1112.5 mmApprox.
0.6 kg
1 set---4 sets------F3SX-EB145.0 mmApprox.
0.3 kg
1 set---4 sets------F3SX-EB145.0 mmApprox.
0.3 kg
1 set---8 sets------F3SX-E-B1B167.5 mmApprox.
0.4 kg
1 set---8 sets------F3SX-E-B1B167.5 mmApprox.
0.4 kg
1 set---4 sets---2 setsF3SX-E-B1D167.5 mmApprox.
0.4 kg
1 set---4 sets---2 setsF3SX-E-B1D167.5 mmApprox.
0.4 kg
1 set2 sets4 sets------F3SX-L2B167.5 mmApprox.
0.4 kg
1 set2 sets4 sets------F3SX-L2B167.5 mmApprox.
0.4 kg
1 set---4 sets------F3SX-B1R90.0 mmApprox.
0.5 kg
1 set---4 sets------F3SX-B1R90.0 mmApprox.
0.5 kg

*For details on the width, refer to "Dimensions" .

Korean S-mark Certified Instant Breaking Models

F3SX-NR-S/F3SX-N-[][][]R-S (with External Indicator Output)

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Two-hand
Control Switch		Door Switch
1 set---------F3SX-NR-S45.0 mmApprox. 0.3 kg
1 set------2 setsF3SX-N-D1R-S90.0 mmApprox. 0.5 kg
1 set------4 setsF3SX-N-D1D1R-S112.5 mmApprox. 0.6 kg
1 set------6 setsF3SX-N-D1D1D1R-S135.0 mmApprox. 0.7 kg
1 set2 sets------F3SX-N-L2R-S90.0 mmApprox. 0.5 kg
1 set4 sets------F3SX-N-L2L2R-S112.5 mmApprox. 0.6 kg
1 set2 sets---2 setsF3SX-N-L2D1R-S112.5 mmApprox. 0.6 kg
1 set4 sets---2 setsF3SX-N-L2L2D1R-S135.0 mmApprox. 0.7 kg
1 set2 sets---4 setsF3SX-N-L2D1D1R-S135.0 mmApprox. 0.7 kg
1 set1 set1 set---F3SX-N-L1R-S90.0 mmApprox. 0.5 kg
1 set1 set1 set2 setsF3SX-N-L1D1R-S112.5 mmApprox. 0.6 kg
1 set1 set1 set4 setsF3SX-N-L1D1D1R-S135.0 mmApprox. 0.7 kg

Note:
1. Use a cable of 10 m maximum to connect the Safety-mark Compliant Safety Controller and DC Power Supply.
2. The English, Japanese, and Korean versions of the operation manual for Safety-mark Compliant Safety Controllers is provided on CD.
*For details on the width, refer to “Dimensions” .

F3SX-E-S/F3SX-E-[][][][]-S (with DC Solid-state Safety Output)

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Two-hand
Control
Switch		Door Switch
1 set---------F3SX-E-S22.5 mmApprox. 0.3 kg
1 set------2 setsF3SX-ED1-S45.0 mmApprox. 0.3 kg
1 set------4 setsF3SX-E-D1D1-S67.5 mmApprox. 0.4 kg
1 set------6 setsF3SX-E-D1D1D1-S90.0 mmApprox. 0.5 kg
1 set------8 setsF3SX-E-D1D1D1D1-S112.5 mmApprox. 0.6 kg
1 set2 sets------F3SX-EL2-S45.0 mmApprox. 0.3 kg
1 set2 sets---2 setsF3SX-E-L2D1-S67.5 mmApprox. 0.4 kg
1 set2 sets---4 setsF3SX-E-L2D1D1-S90.0 mmApprox. 0.5 kg
1 set2 sets---6 setsF3SX-E-L2D1D1D1-S112.5 mmApprox. 0.6 kg
1 set4 sets------F3SX-E-L2L2-S67.5 mmApprox. 0.4 kg
1 set4 sets---2 setsF3SX-E-L2L2D1-S90.0 mmApprox. 0.5 kg
1 set4 sets---4 setsF3SX-E-L2L2D1D1-S112.5 mmApprox. 0.6 kg
1 set1 set1 set---F3SX-EL1-S45.0 mmApprox. 0.3 kg
1 set1 set1 set2 setsF3SX-E-L1D1-S67.5 mmApprox. 0.4 kg
1 set1 set1 set4 setsF3SX-E-L1D1D1-S90.0 mmApprox. 0.5 kg
1 set1 set1 set6 setsF3SX-E-L1D1D1D1-S112.5 mmApprox. 0.6 kg

Note:
1. Use a cable of 10 m maximum to connect the Safety-mark Compliant Safety Controller and DC Power Supply.
2. The English, Japanese, and Korean versions of the operation manual for Safety-mark Compliant Safety Controllers is provided on CD.
*For details on the width, refer to “Dimensions” .

OFF-delay Time Setting Models (Using Function Setup Software for the F3SX)

F3SX-N-[][]RR2

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Two-hand
Control
Switch		Door Switch
1 set---------F3SX-N-RR2112.5 mmApprox. 0.5 kg
1 set------2 setsF3SX-N-D1RR2135.0 mmApprox. 0.6 kg
1 set------4 setsF3SX-N-D1D1RR2157.5 mmApprox. 0.7 kg
1 set2 sets------F3SX-N-L2RR2135.0 mmApprox. 0.6 kg
1 set2 sets---2 setsF3SX-N-L2D1RR2157.5 mmApprox. 0.7 kg
1 set4 sets------F3SX-N-L2L2RR2157.5 mmApprox. 0.7 kg
1 set1 set1 set---F3SX-N-L1RR2135.0 mmApprox. 0.6 kg
1 set1 set1 set2 setsF3SX-N-L1D1RR2157.5 mmApprox. 0.7 kg

Note:
1. The factory setting for the OFF-delay time is 0 s (non-delay (instant breaking)).
2. By using the Function Setup Software for the F3SX (F3SX-CD100-E, sold separately), the time can be set in 0.1-second units.
*For details on the width, refer to “Dimensions” .

F3SX-ER2/F3SX-E-[][][]R2

Input typeModelWidth *Weight
(Main
Module only)
Emergency
Stop		F3SN/F3SH/
F3SJ Safety
Light Curtain/
Multi-beam
Safety Sensor		Two-hand
Control
Switch		Door Switch
1 set---------F3SX-ER245.0 mmApprox. 0.3 kg
1 set------2 setsF3SX-E-D1R290.0 mmApprox. 0.5 kg
1 set------4 setsF3SX-E-D1D1R2112.5 mmApprox. 0.6 kg
1 set------6 setsF3SX-E-D1D1D1R2135.0 mmApprox. 0.7 kg
1 set2 sets------F3SX-E-L2R290.0 mmApprox. 0.5 kg
1 set2 sets---2 setsF3SX-E-L2D1R2112.5 mmApprox. 0.6 kg
1 set2 sets---4 setsF3SX-E-L2D1D1R2135.0 mmApprox. 0.7 kg
1 set4 sets------F3SX-E-L2L2R2112.5 mmApprox. 0.6 kg
1 set4 sets---2 setsF3SX-E-L2L2D1R2135.0 mmApprox. 0.7 kg
1 set1 set1 set---F3SX-E-L1R290.0 mmApprox. 0.5 kg
1 set1 set1 set2 setsF3SX-E-L1D1R2112.5 mmApprox. 0.6 kg
1 set1 set1 set4 setsF3SX-E-L1D1D1R2135.0 mmApprox. 0.7 kg

Note:
1. The factory setting for the OFF-delay time is 0 s (non-delay (instant breaking)).
2. By using the Function Setup Software for the F3SX (F3SX-CD100-E, sold separately), the time can be set in 0.1-second units.
*For details on the width, refer to “Dimensions” .

OFF-delay Time Fixed Models

F3SX-ER2-T[][][]

-TH01 to -TH59
(odd model numbers only)
(0.5-second units)		-TN01 to -TN60
(1.0-second units)		-TW07 to -TW60
(10-second units)
Model suffix
-T[][][]		Set timeModel suffix
-T[][]v		Set timeModel suffix
-T[][][]		Set timeModel suffix
-T[][][]		Set time
-TH010.5 s-TN011 s-TN1010 s-TW0770 s
-TH031.5 s-TN022 s-TN2020 s-TW0880 s
-TH052.5 s-TN033 s-TN3030 s-TW0990 s
-TH073.5 s-TN044 s-TN4040 s-TW10100 s
-TH094.5 s-TN055 s-TN5050 s-TW20200 s
-TH115.5 s-TN066 s-TN6060 s-TW30300 s
-TH136.5 s-TN077 s-------TW40400 s
-TH157.5 s-TN088 s-------TW50500 s
-TH178.5 s-TN099 s-------TW60600 s

Note:
1. It is not possible to change the factory settings for delay time or any other parameters.
2. The set time can be customized at the factory to a user-preferred time, provided that it is within the model standards. Contact your OMRON representative for details.

ON-delay Time Fixed Models

F3SX-ER1-T[][][]

1 to 5 s (1.0-second units) *
Model suffix -T[][][]Set time
-TN011 s
-TN022 s
-TN033 s
-TN044 s
-TN055 s

Note: It is not possible to change the factory settings for delay time or any other parameters.
* In addition to the models listed in this table, ON-delay Time Fixed models of up to 60 s max (1.0-second units) are also available.

Function Setup Software for the F3SX (English Version)

AppearanceSupported OSModel
Windows 98SE or higher *,
Windows 2000 SP4 or
higher, or
Windows XP SP1 or
higher		F3SX-CD100-E

Note: The F3SX-CD100-E Function Setup Software is not included and must be purchased separately. Contact your OMRON representative for details.
* IE4.0 or higher must be installed.

Setting Functions

Delay time settings (ON-delay/OFF-delay)
Monitoring time settings
Indicator lighting pattern settings (F3SX-N only)
Auxiliary outputs (AS1/AS2/AS3)
Log read (feedback time for past 16 operations)
Intersystem monitoring time (for past 16 operations), error log
I/O monitor
An RS-232C cable (F39-JC2X1, sold separately) is required to use the Function Setup Software for the F3SX.

Accessories (Optional)

Junction Box for Safety Light Curtain

AppearanceConnecting devicesModel
F3SN-A/-B, F3SJ

F3SX Series
F39-TB01

Junction Connector for F3SX

AppearanceConnecting devicesModel
F3SN-A/-B, F3SJ

F3SX Series
F39-CN5

Cable with Connectors on Both Ends

AppearanceConnecting devicesModelCable length
F39-TB01, F39-CN5

F3SX Series
F39-JC1T1 m
F39-JC3T3 m
F39-JC5T5 m
F39-JC10T10 m

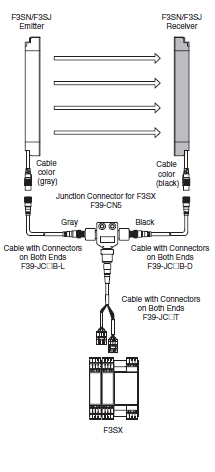

F3SX_Accy1

RS-232C Cable (9-pin D-Sub Connector)

AppearanceConnecting devicesModelCable length
RS-232C cable for connecting
F3SX to personal computer		F39-JC2X12 m
RS-232C cable for connecting
F3SX to OMRON PLC		F39-JC2X2

Local Navigation

Safety Components

Site Information

realizing

© Copyright OMRON Corporation 2007 - 2008. All Rights Reserved.
