Safety-door Switch

D4NS

D4NS

Multi-contact, Labor-saving, Environment-friendly, Next-generation Safety-door Switch

Related Contents

Primary Contents



Switches

1-Conduit Models

D4NS-1[]F
D4NS-2[]F
D4NS-3[]F
D4NS-4[]F

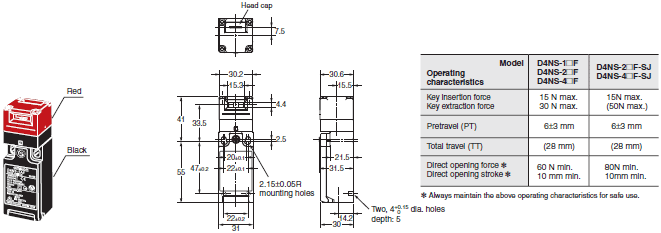

D4NS-1[]F_Dim

2-Conduit Models

D4NS-5[]F
D4NS-6[]F
D4NS-7[]F
D4NS-8[]F

D4NS-5[]F_Dim

1-Conduit Connector Models

D4NS-9[]F

D4NS-9[]F_Dim

Note:

1.Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

2.There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC). Confirm performance before application.

Operation Keys

D4DS-K1

D4DS-K1_Dim

D4DS-K2

D4DS-K2_Dim

D4DS-K3

D4DS-K3_Dim

D4DS-K5

D4DS-K5_Dim

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

With Operation Key Inserted (Relationship between Insertion Radius and Key Hole)

D4NS-1[]F + D4DS-K1
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K1
(with Top-inserted Operation Key)

D4NS-1[]F + D4DS-K1_Dim1
D4NS-1[]F + D4DS-K1_Dim2

D4NS-1[]F + D4DS-K2
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K2
(with Top-inserted Operation Key)

D4NS-1[]F + D4DS-K2_Dim1

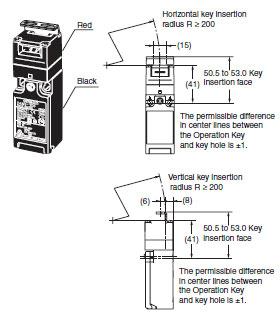

D4NS-1[]F + D4DS-K2_Dim2

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

D4NS-1[]F + D4DS-K3
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K3
(with Top-inserted Operation Key)

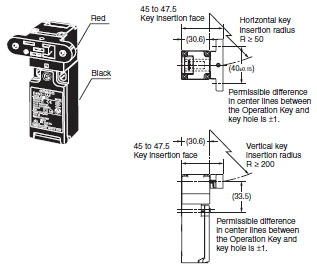

D4NS-1[]F + D4DS-K3_Dim1

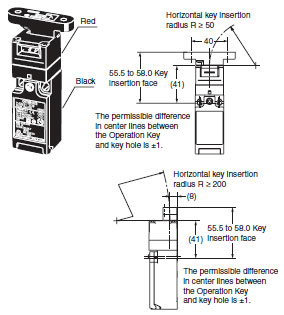

D4NS-1[]F + D4DS-K3_Dim2

D4NS-1[]F + D4DS-K5
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K5
(with Top-inserted Operation Key)

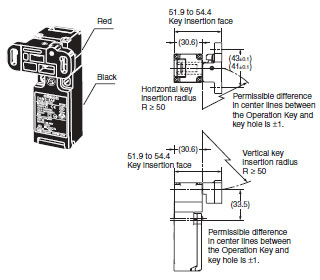

D4NS-1[]F + D4DS-K5_Dim1

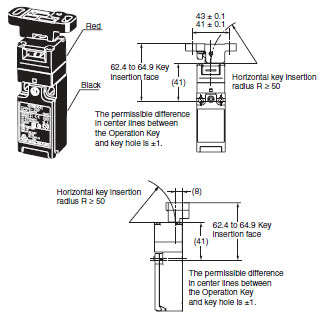

D4NS-1[]F + D4DS-K5_Dim2

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Caution: All units are in millimeters unless otherwise indicated.
