F3SN-A[]SS

Safety Light curtains

F3SN-A[][][]P25SS-[][]

Dimensions can be calculated for each model by using the following equations.
Dimension C1 (protective height): 4 digits in the model name
Dimension A = C1 + 64
Dimension B = C1 + 32
Dimension D = 18.5
Dimension E = C1 - 37
Dimension F = Refer to the table below.

Note: If value F obtained from the above equation is not used, set F to 670 mm or less.

Mounting Precautions

Note:
1. The mounting bracket (3) (see Mounting Brackets (Intermediate)) is shown on the left-hand side of the Sensor as an example. If the mounting bracket (3) is on the right-hand side of the Sensor, then the mounting holes must also be on the right-hand side.
2. When using the cable bent, use a minimum bending radius of R = 36 mm. Fig. A shows an example when using a Cable with a Straight Connector. Fig. B shows the dimensions when using a Cable with a Right-angle Connector.

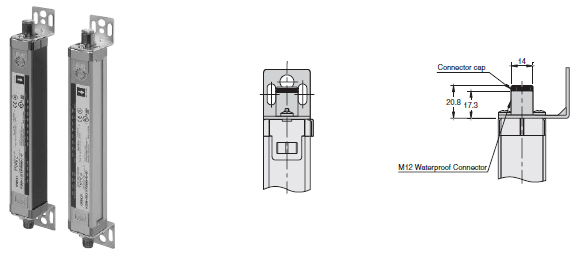

F3SN-A[][][][]P25SS-01

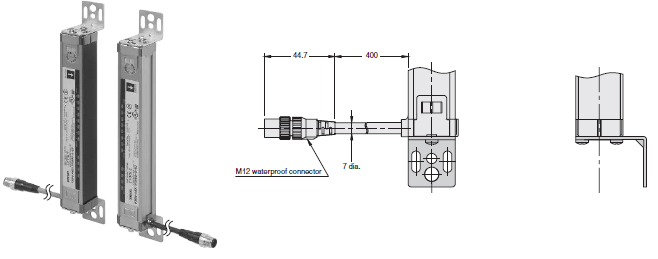

F3SN-A[][][][]P25SS-02

F3SN-A[][][][]P25SS-04

Accessories

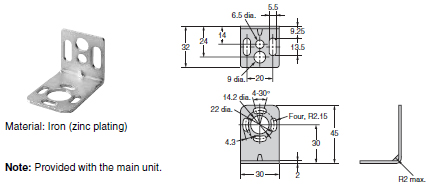

Mounting Brackets (Top and Bottom)

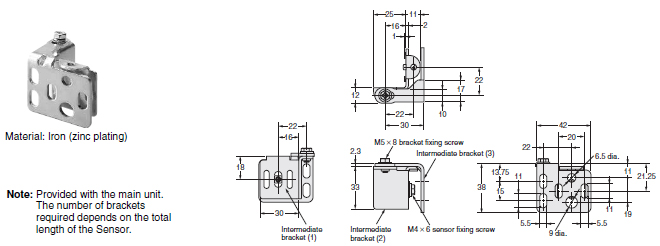

Mounting Brackets (Intermediate)

Accessories (Optional)

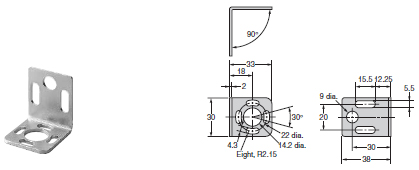

Wall Mounting Bracket
F39-L18

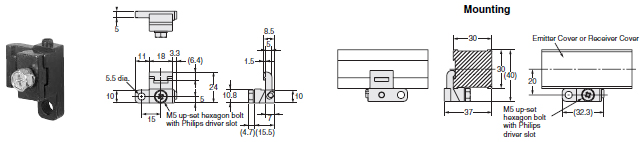

Free-location Bracket
F39-L19

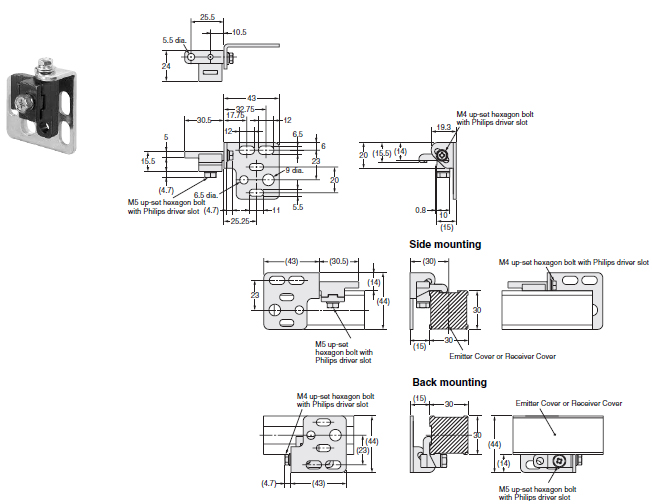

Free-location Bracket
F39-L20

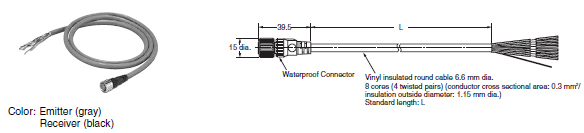

Cable with Connector on One End with Straight Connectors

F39-JC3A (L = 3 m)
F39-JC7A (L = 7 m)

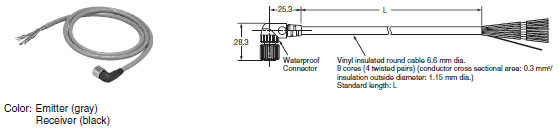

Cable with Connector on One End with Right-angle Connectors

F39-JC1E1 (L = 1 m)
F39-JC3E1 (L = 3 m)
F39-JC7E1 (L = 7 m)
F39-JC10E1 (L = 10 m)
F39-JC15E1 (L = 15 m)

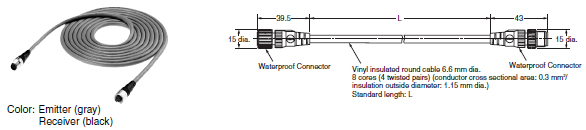

Cable with Connectors on Both Ends with Straight Connectors

F39-JCR2B (L = 0.2 m)
F39-JCR5B (L = 0.5 m)
F39-JC3B (L = 3 m)
F39-JC5B (L = 5 m)
