ZS-L

Standard Sensors Most Suitable for a Variety of High-precision Displacement Measurements, Including Spot Detection, Wide-range Detection, and Long-distance Detection.

Beam Shapes

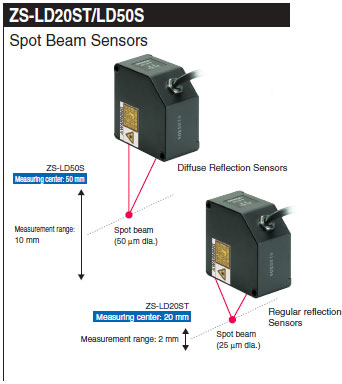

Spot and line beam selection.

Wide Range of Products

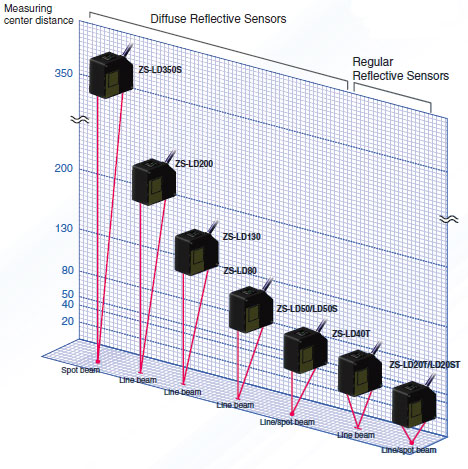

Long-range, middle-range, and short-range models.

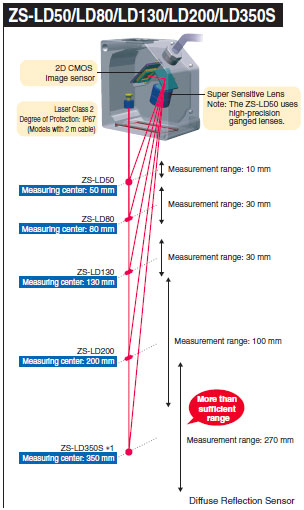

Advanced sensing technology packed into the smallest Sensor Heads in this class.

Smallest size in this class (65 x 65 mm)

Uniform Sensor Head size

Line/spot beam type

Detects black rubber, mirror, and transparent workpieces

*1.Spot Beam Sensors.

Note:Sensor Head can be installed to for either diffuse reflection or regular reflection. (except ZS-LD350S)
Correctly compensates measurement values to suit different applications.

Stable Measurements for PCBs, Black Resin, and Metal

All you need to do is select the proper mode to achieve stable sensing of PCBs, resins, black rubber, and other light-penetrating workpieces (these could not be easily handled with previous reflective laser displacement meters.)

ZS-LD80

Measuring the Shape of Black Resin Workpieces

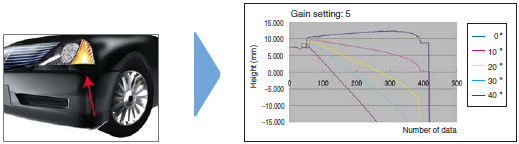

Complete measurement data will be obtained at angles of up to 40°.

ZS-LD50

Measuring the Shape PCB Surfaces

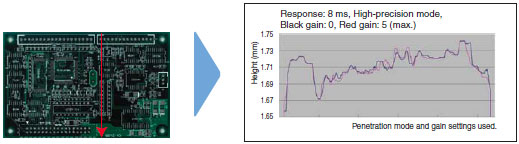

PCB shapes can be measured without burs or waveform disruptions.

Stable Measurements for Glass

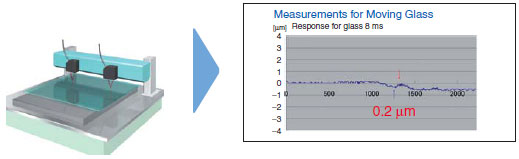

Stably measure height and undulations in transparent, coated, or colored glass on work tables.

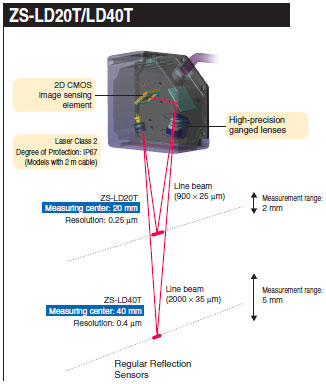

Stable detection at 40 mm with a line beam of 2 mm.
A 2-mm line beam reduces the influence of black and white patterns on granite work tables to achieve stable measurements.

ZS-LD40T

Measuring Glass Surfaces

Ideal for measuring glass thickness and slit nozzle gaps when coating glass with resist or sealer.

Line Beam Sensors for Emphasis on Stable Measurement

Line beams produce an averaging affect that is less likely to be affected by surface irregularities, creating stable measurements.
Ideal for stable measurements that do not rely on the surface of the target workpiece.

Easy Sensing with an HMI That Couldn't Be Easier to Use

Just select High-precision Mode to stably measure black rubber.

Just select Penetration Mode to stably measure PCBs or black resin.

Set Sensing Directly

FUN (setting mode)
