SitemapGuard Lock Safety-door Switch
D4JL
World's Top* Holding Force of 3,000 N (*For plastic models, as of May 2007)
Data Sheet (4758KB)
Quick links to 'D4JL' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Dimensions and Operating Characteristics
Switches

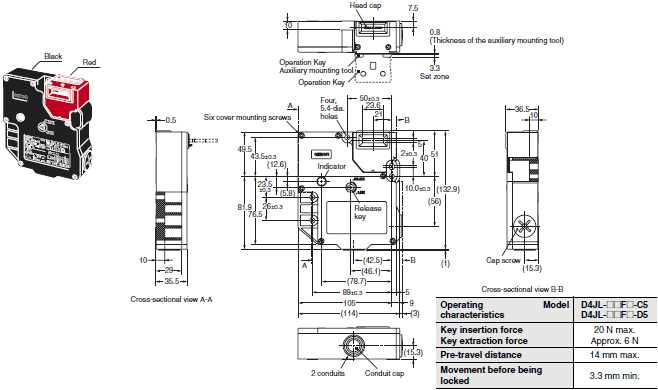

D4JL-[][]F[]-C5
D4JL-[][]F[]-D5
![D4JL-[][]F[]-C5_Dim](img/d4jl_dm_1.gif)

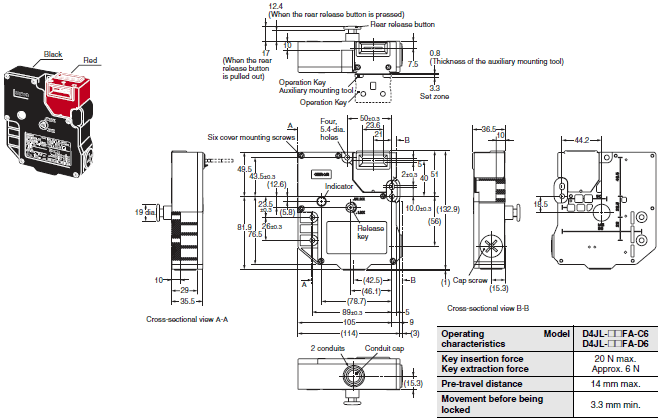

D4JL-[][]FA-C6
D4JL-[][]FA-D6
![D4JL-[][]FA-C6_Dim](img/d4jl_dm_2.gif)

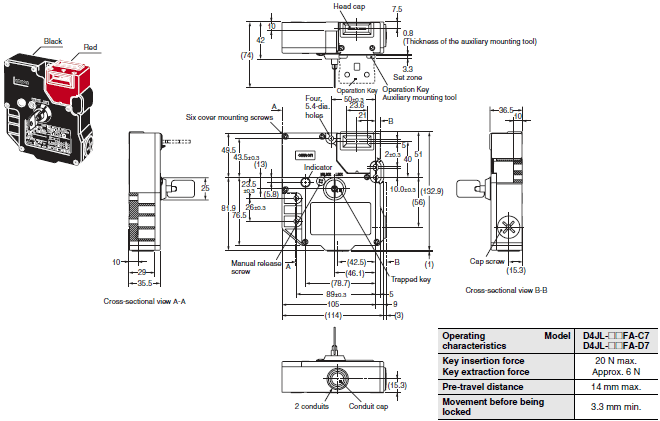

D4JL-[][]FA-C7
D4JL-[][]FA-D7
![D4JL-[][]FA-C7_Dim](img/d4jl_dm_3.gif)
Operation Keys
D4JL-K1
D4JL-K2
D4JL-K3
Note:Unless otherwise specified, a tolerance of ±0.8 mm applies to all Switch dimensions and a tolerance of ±0.4 mm applies to Operation Key dimensions.
With Operation Key Inserted

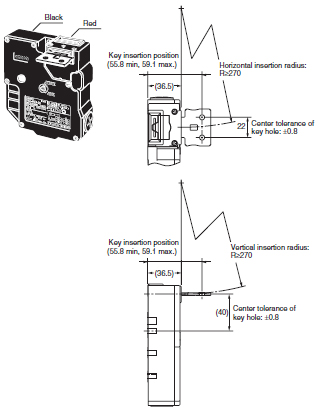

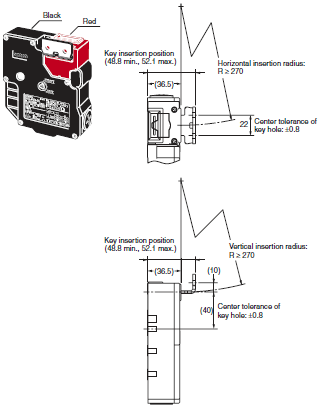

D4JL+D4JL-K1
(with Front-inserted Operation Key)

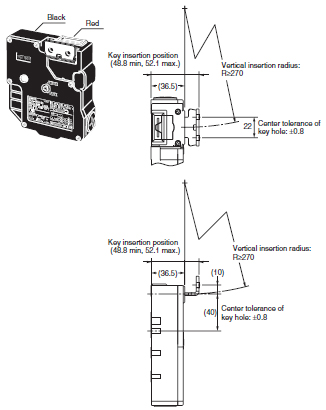

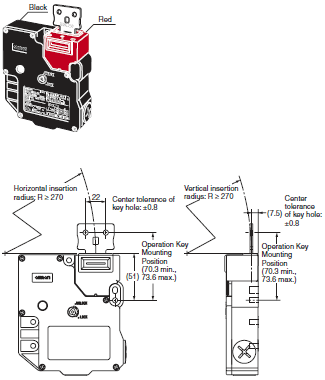

D4JL+D4JL-K2
(with Front-inserted Operation Key)

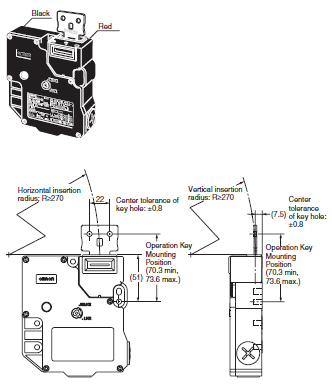

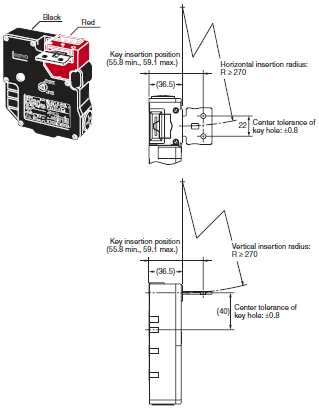

D4JL+D4JL-K1
(with Top-inserted Operation Key)

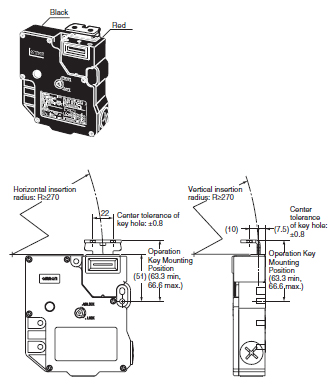

D4JL+D4JL-K2
(with Top-inserted Operation Key)

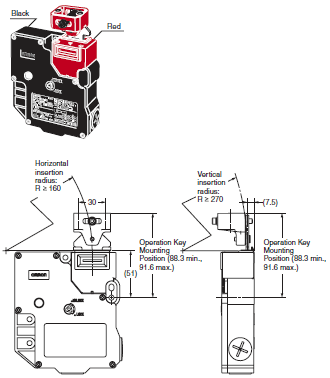

D4JL + D4JL-K3
(with Front-inserted Operation key)
D4JL + D4JL-K3
(with Top-inserted Operation key)
Caution: All units are in millimeters unless otherwise indicated.
