SitemapSwitch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)
S8VM
Power Supply Featuring OMRON's Unique, New Undervoltage Alarm Function with Compact Body Contributing to Machine Downsizing
Data Sheet (5960KB)
Quick links to 'S8VM' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
S8VM Pick up
Bottom Mounting Models (15-W, 30-W, 50-W, 100-W, 150-W Models)

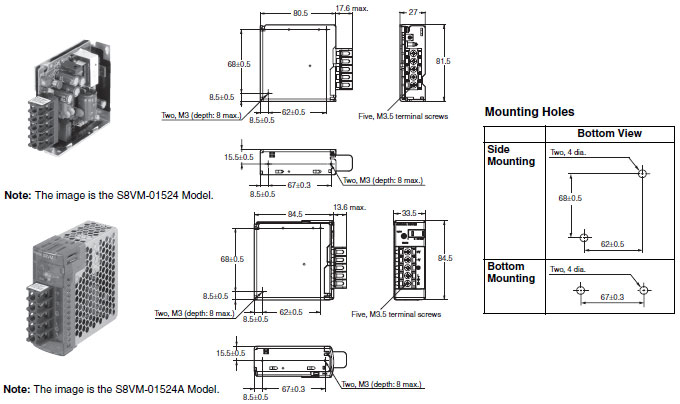

S8VM-015[][]
S8VM-015[][]C
S8VM-01524A

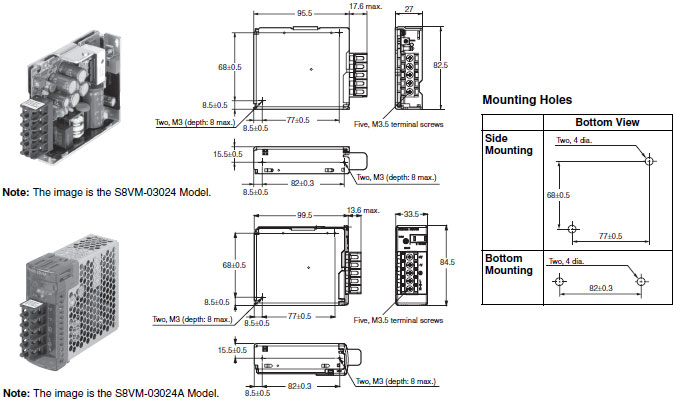

S8VM-030[][]
S8VM-030[][]C
S8VM-03024A
S8VM-050[][]
S8VM-050[][]C
S8VM-05024A
S8VM-05024P
S8VM-100[][]
S8VM-100[][]C
S8VM-10024A
S8VM-10024P

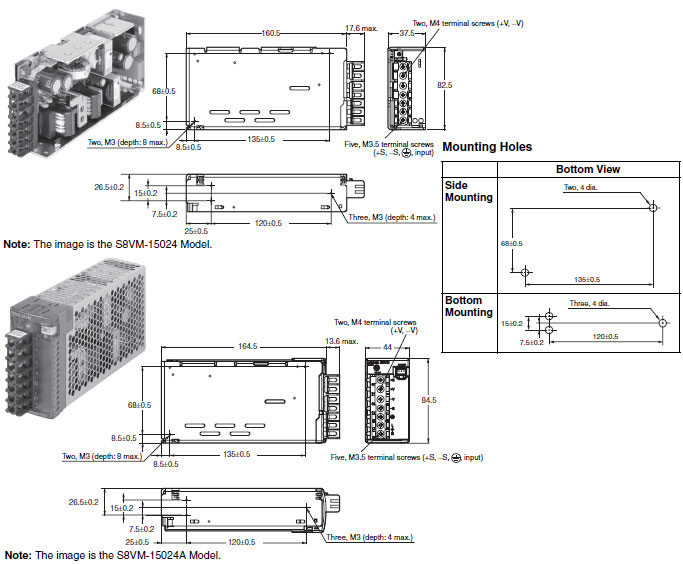

S8VM-150[][]
S8VM-150[][]C
S8VM-15024A
S8VM-15024P
DIN Rail Mounting Bracket Models (15-W, 30-W, 50-W, 100-W, 150-W Models)

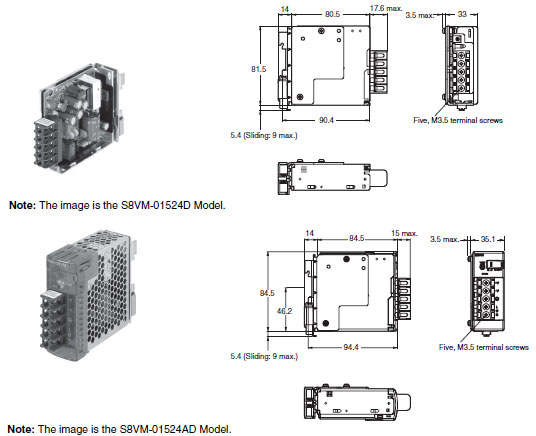

S8VM-015[][]D
S8VM-015[][]CD
S8VM-01524AD
S8VM-030[][]D
S8VM-030[][]CD
S8VM-03024AD

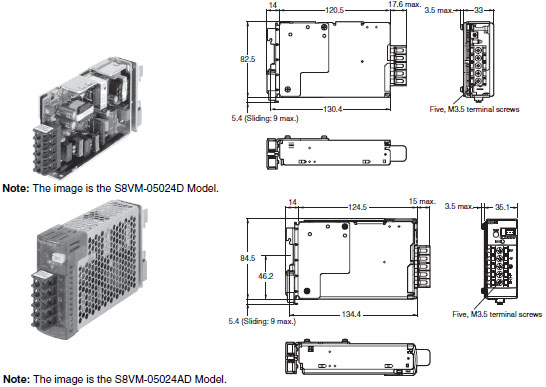

S8VM-050[][]D
S8VM-050[][]CD
S8VM-05024AD
S8VM-05024PD

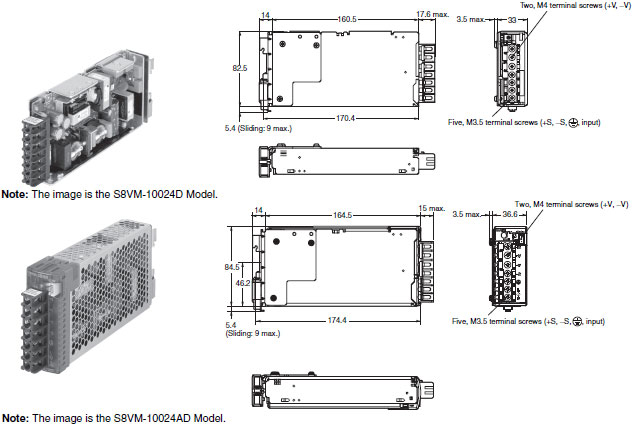

S8VM-100[][]D
S8VM-100[][]CD
S8VM-10024AD
S8VM-10024PD
S8VM-150[][]D
S8VM-150[][]CD
S8VM-15024AD
S8VM-15024PD
Bottom Mounting Models (300-W, 600-W, 1,500-W Models)
S8VM-300[][]C
S8VM-600[][]C

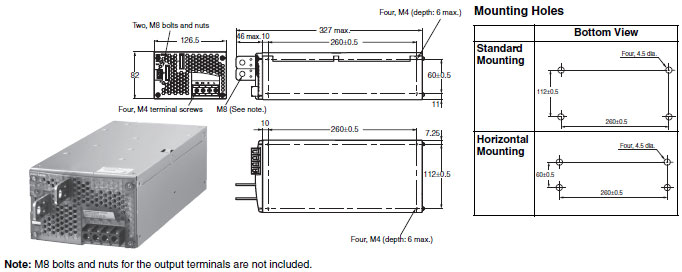

S8VM-15224C
Mounting Bracket A (Bottom Mounting for 15-, 30-, and 50-W Models)
S82Y-VM10B
Mounting Bracket B (Bottom Mounting for 100-, and 150-W Models)
S82Y-VM20B
Mounting Bracket C (Front Mounting for 15-, 30- 50-, 100-, and 150-W Models)
S82Y-VM10F
Mounting Bracket D (Bottom Mounting for 300-W Models)
S82Y-VM30B
Mounting Bracket E (Horizontal Bottom Mounting for 300-W Models)
S82Y-VM30S
Mounting Bracket F (Front Mounting for 300-W Models)
S82Y-VM30F
Mounting Bracket G (DIN Rail Mounting for 300-W Models)
S82Y-VM30D

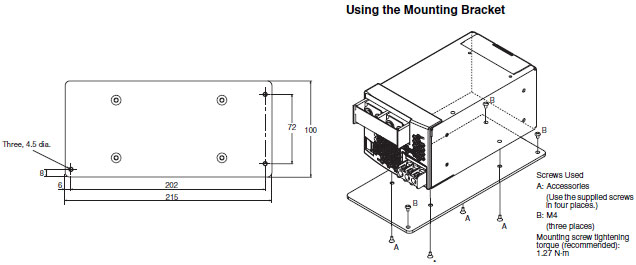

Mounting Bracket H (Bottom Mounting for 600-W Models)
S82Y-VM60B
Mounting Bracket I (Horizontal Bottom Mounting for 600-W Models)
S82Y-VM60S
Mounting Bracket J (Front Mounting for 600-W Models)
S82Y-VM60F
Mounting Bracket K (DIN Rail Mounting for 600-W Models)
S82Y-VM60D
Undervoltage Alarm Output Wiring Cable
S82Y-VM10H (for S8VM-05024A[]/05024P[]/10024A[]/10024P[]/15024A[]/15024P[] Only)
Caution: All units are in millimeters unless otherwise indicated.
