SitemapSmart Sensors 2D CMOS Laser Type
ZS-HL
Very High-performance Sensors that Support Core Quality from Very Long-range to Extremely Precise Measurements
Data Sheet (15536KB)
Quick links to 'ZS-HL' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Sensor Controllers
ZS-HLDC[]1
![ZS-HLDC[]1_Dim](img/ZS_Series_dm_1.jpg)

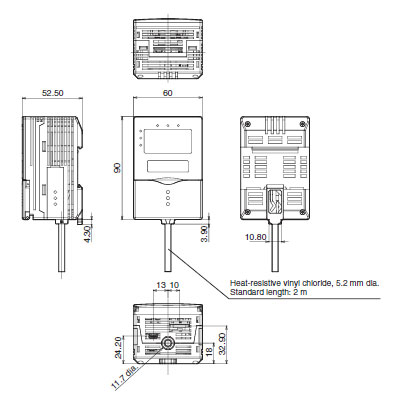

Multi-Controllers
ZS-MDC[]1
![ZS-MDC[]1_Dim](img/ZS_Series_dm_2.jpg)
Data Storage Units
ZS-DSU[]1
![ZS-DSU[]1_Dim](img/ZS_Series_dm_3.jpg)
Sensor Heads
ZS-HLDS2T

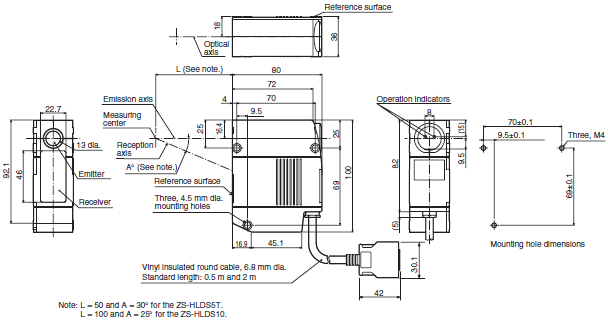

ZS-HLDS5T/HLDS10
ZS-HLDS60/HLDS150
ZS-HLDS2VT
Realtime Parallel Output Unit
ZG-RPD[]1
![ZS-RPD[]1_Dim](img/ZS_Series_dm_11.jpg)
Panel Mount Adapter
ZS-XPM1/XPM2 (Dimensions for Panel Mounting)
Digital Equalizer
ZS-XEQ
Caution: All units are in millimeters unless otherwise indicated.
