SitemapTemperature Controllers
E5CSV
Easy Setting Using DIP Switch and Simple Functions in DIN 48 × 48 mm-size Temperature Controllers
Data Sheet (458KB)
Quick links OMRON IA Temperature Controllers in your country.
-
- Middle East
-
Please contact Europe headquarters.
Controller

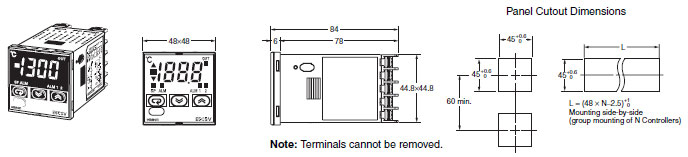

E5CSV
Note: Terminals cannot be removed.

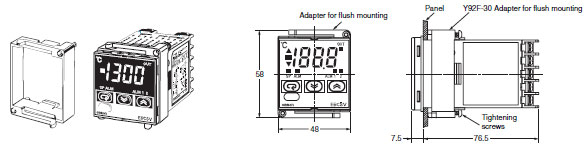

E5CSV + Adapter for Flush Mounting (Provided)
Note:
1. The recommended panel thickness is 1 to 4 mm.
2. Group mounting is possible in one direction only.
Accessories (Optional)
Hard Protective Cover
The Y92A-48B Protective Cover (hard type) is available for the following applications.
To protect the set from dust and dirt.
To prevent the panel from being accidentally to uched causing displacement of set values.
To provide effective protection against water droplets.
Terminal Cover
E53-COV10
Rubber Packing
Y92S-29 (for DIN48 × 48)
Order the Rubber Packing separately if it becomes lost or damaged. The Rubber Packing can be used to achieve an IP66 degree of protection for models with terminal blocks.
(Deterioration, shrinking, or hardening of the rubber packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in NEMA4. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)The Rubber Packing does not need to be attached if a waterproof structure is not required.
Caution: All units are in millimeters unless otherwise indicated.
