E52 (General purpose Models)

Sheathed Platinum Resistance Thermometers

Exposed-lead Models

E52-P[]A

Lead Wire

Standard (−20°C to 70°C):
Fully vinyl-covered with twelve 0.18-dia conductors (0.3 mm thick) and 4.8 mm in outer dia. The sleeve resists a temperature range between 0°C and 70°C.

Heat Resistive (0°C to 180°C):
Fully glass-wool-covered with twenty 0.18-dia. conductors (0.5 mm thick) externally shielded with stainless steel, 5.2 mm in outer dia. The sleeve resists a temperature range between 0°C and 100°C.

Lead Wire Length (M): 1, 2, 4, or 8 m

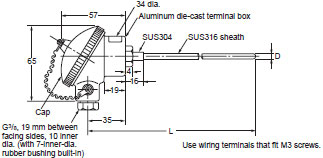

Enclosed-terminal Models

E52-P[]C

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

Standard Platinum Resistance Thermometers

Exposed-terminal Models

E52-P[]B

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

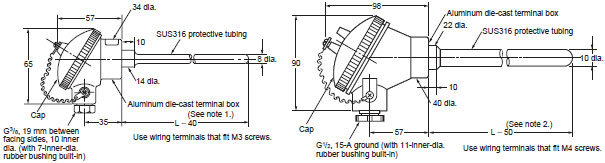

Enclosed-terminal Models

E52-P[]C

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

Note:

1.The length L is in centimeters, but "40" is 40 millimeters.Therefore, for the E52-P20C, L = 20 (cm), the protective tubing length L - 40 = 200 - 40 = 160 mm.

2.The length L is in centimeters, but "50" is 50 millimeters.Therefore, for the E52-P75C: L = 75 (cm), the protective tubing length L - 50 = 750 - 50 = 700 mm.

3.Terminal box: The permissible temperature is 0°C to 80°C.

Sheathed Thermocouples

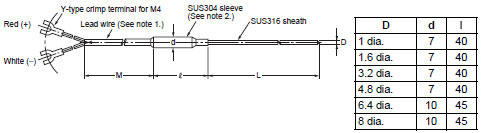

Exposed-lead Models

E52-CA[]A

Note:

1. Lead Wire (Compensating Conductor)
Standard (−20°C to 70°C):
Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external dimensions of 3.2 × 5.0.
Heat Resistive (0°C to 150°C):
Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with external shield of stainless steel and external dimensions of 2.9 × 4.6
The heat-resistive lead wires cannot be used in locations exposed to water or other liquids.
Lead Wire Length (M): 1, 2, 4, or 8 m

2.The sleeve resists temperatures ranging between −20°C and 70°C for standard models and 0°C and 100°C for heat-resistive models.

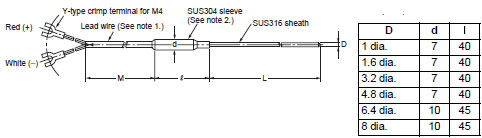

Exposed-lead Models

E52-IC[]A

Note:

1. Lead Wire (Compensating Conductor)
Standard (−20°C to 70°C):
Fully vinyl-covered with seven 0.3-dia. conductors (0.5 mm thick) and external dimensions of 3.2 × 5.0.
Heat Resistive (0°C to 150°C):
Fully glass-wool-covered with seven 0.3-dia. conductors (0.5 mm thick) with external shield of stainless steel and external dimensions of 2.9 × 4.6
The heat-resistive lead wires cannot be used in locations exposed to water or other liquids.
Lead Wire Length (M): 1, 2, 4, or 8 m

2.The sleeve resists temperatures ranging between −20°C and 70°C for standard models and 0°C and 100°C for heat-resistive models.

Exposed-terminal Models

E52-CA[]B
E52-IC[]B

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

Enclosed-terminal Models

E52-CA[]C
E52-IC[]C

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

Standard Thermocouples

Exposed-terminal Models

E52-CA[]B
E52-IC[]B

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

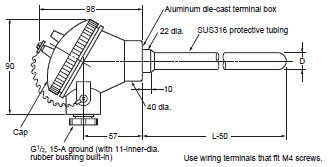

Enclosed-terminal Models

E52-CA[]C
E52-IC[]C

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.

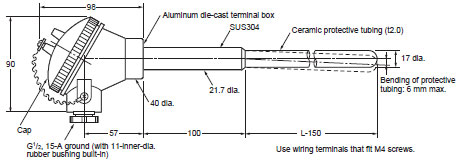

Enclosed-terminal Models (High-temperature Use)

E52-PR[]C

Dimensions are given in millimeters, except for the length (L), which is provided in centimeters.
