E52 (Low-cost Models)

Low-cost Platinum Resistance Thermometers

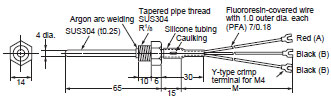

Exposed-lead Models with Screws

E52-P6D

Note: The protective tubing is of pipe construction, which must not be bent.

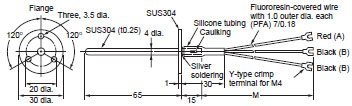

Exposed-lead Models with Flange

E52-P6F

Note: The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models

E52-P10AE

Note:

1. The protective tubing is of pipe construction, which must not be bent.

2.A Compression Fitting (PT[]) cannot be used for mounting.

Low-cost Thermocouples

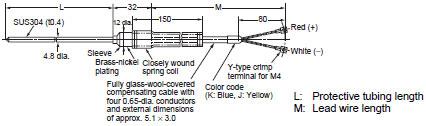

Exposed-lead Models with Spring

E52-CA[]AS, E52-IC[]AS

Note: The protective tubing is of pipe construction, which must not be bent.

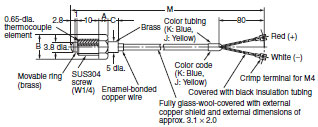

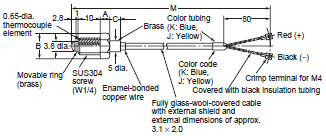

Exposed-lead Models with Screw

E52-CA1D, E52-IC1D

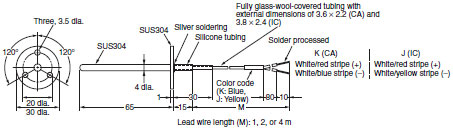

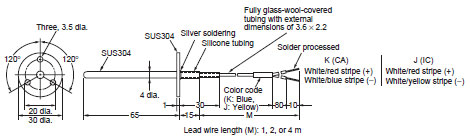

Exposed-lead Models with Flange

E52-CA6F, E52-IC6F

Note:

1. The thermocouple is a single wire from the tip to the terminal.

2.The tip is processed with solder, which ensures ease of welding.

3.The protective tubing is of pipe construction, which must not be bent.

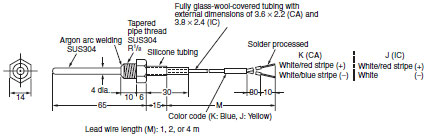

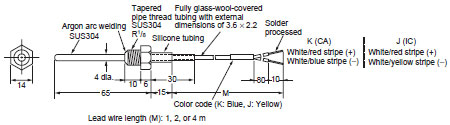

Exposed-lead Models with Screws

E52-CA6D, E52-IC6D

Note:

1.The thermocouple is a single wire from the tip to the terminal.

2.The tip is processed with solder, which ensures ease of welding.

3.The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models

E52-CA10AE, E52-IC10AE

Note:

1.The thermocouple is a single wire from the tip to the terminal.

2.Lead wire length M: 1, 2, or 4 m

3.The protective tubing is of pipe construction, which must not be bent.

4.The thermocouple cannot be mounted using a PT[] Compression Fitting.
