Laser Photoelectric Sensor with Built-in Amplifier

E3Z-LT / LR / LL

The Most Compact Laser Sensor The Most Reliable E3Z

Quick links to 'E3Z-LT / LR / LL' page in your country / territory.

Get more support via Products links, such as manuals and CAD files.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

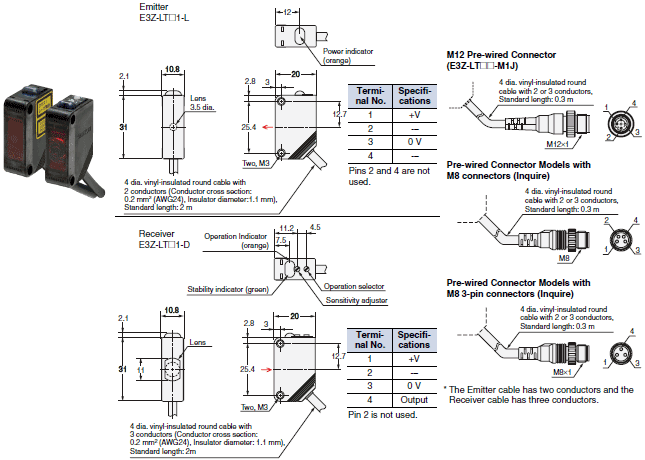

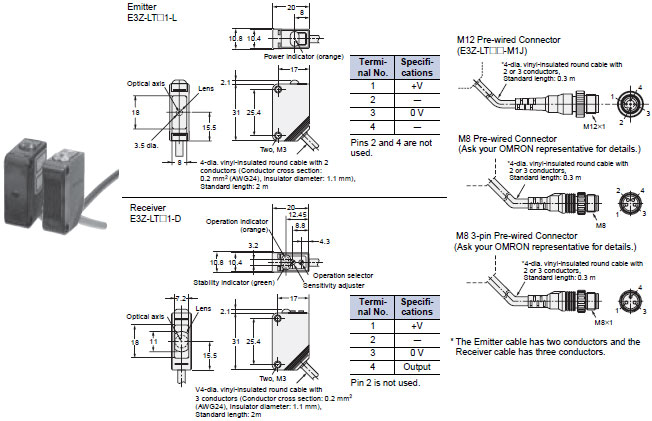

Through-beam
Pre-wired Models
E3Z-LT61, E3Z-LT81

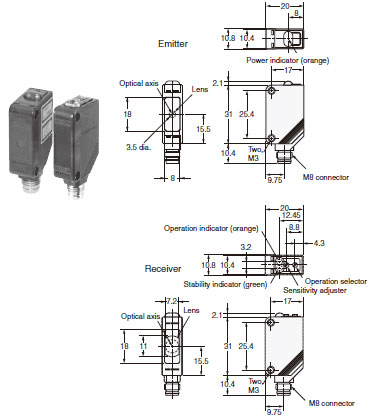

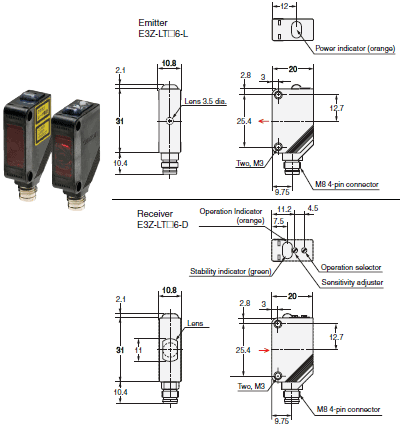

Through-beam
Standard Connector Models
E3Z-LT66, E3Z-LT86

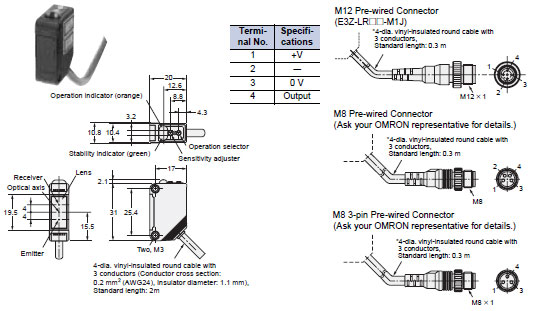

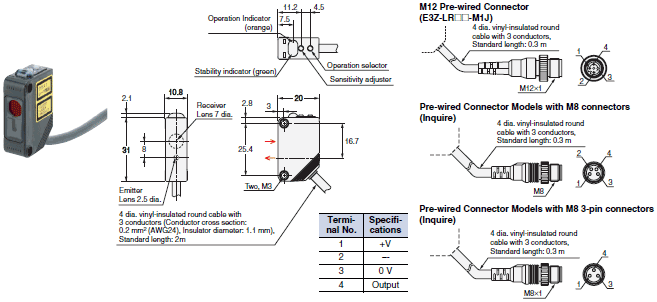

Retro-reflective Models
Pre-wired Models
E3Z-LR61, E3Z-LR81

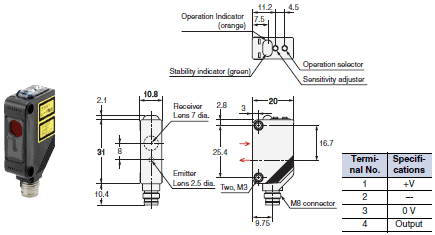

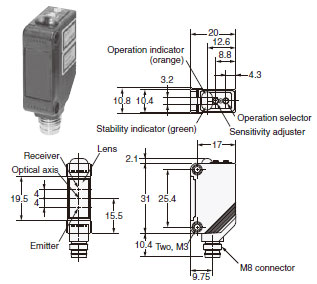

Retro-reflective Models
Standard Connector Models
E3Z-LR66, E3Z-LR86

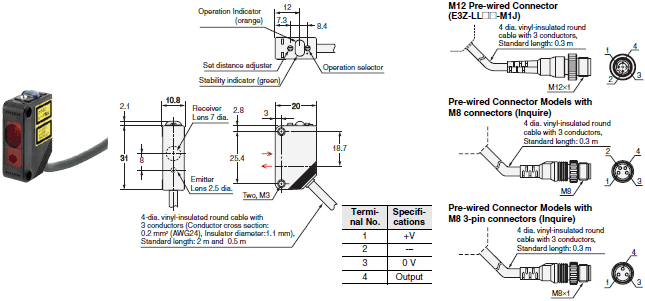

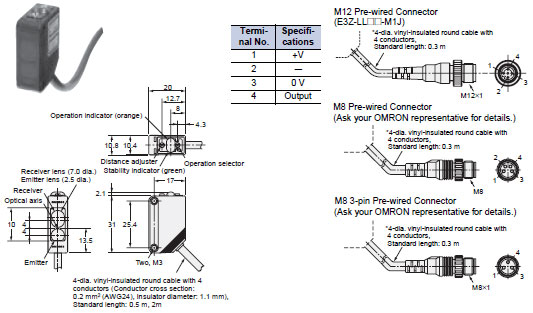

BGS Models
Pre-wired Models
E3Z-LL61, E3Z-LL81
E3Z-LL63, E3Z-LL83

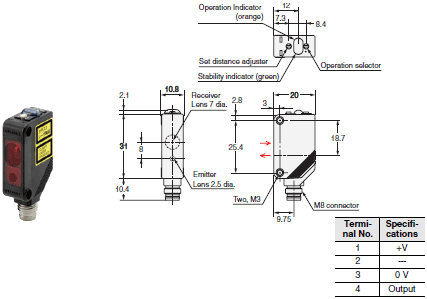

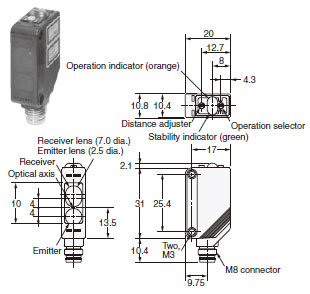

BGS Models
Standard M8 Connector Models
E3Z-LL66, E3Z-LL86
E3Z-LL68, E3Z-LL88

Accessories (Order Separately)

Slit
E39-S65A

Material
SUS301 stainless steel

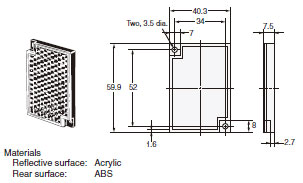

Reflector
E39-R1

Materials
Reflective surface: Acrylic
Rear surface: ABS

Reflector
E39-R6

Materials
Reflective surface: Acrylic
Rear surface: ABS

Reflector
E39-R12

Materials
Reflector: Polycarbonate (surface), Acrylic (interior)
Frame: ABS

Caution: All units are in millimeters unless otherwise indicated.
