SitemapModular Temperature Controller
EJ1
In-panel Temperature Controller with Flexible Modular Design and Wide Integration with Host Devices
Data Sheet (3901KB)
Quick links to 'EJ1' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Temperature Controller
Basic Units
EJ1N-TC
HFUs

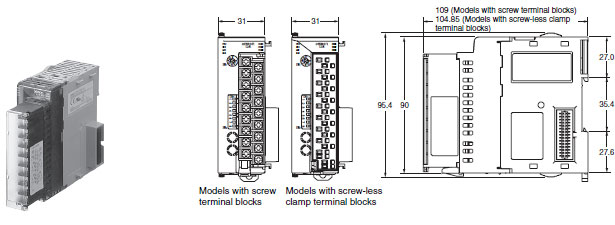

EJ1N-HFU[]-NFL[]
HFUs

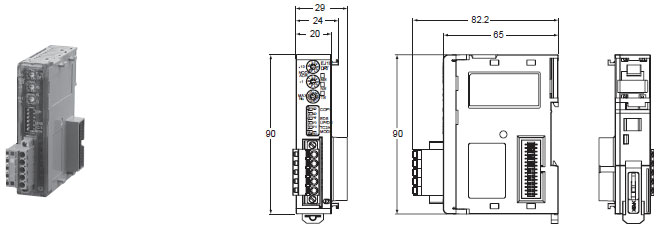

EJ1N-HFUB-DRT
End Units
EJ1C-EDU
Options
Current Transformer
E54-CT1
E54-CT3
E54-CT3 Accessory
Armature
Connection Example
Plug
Rail Mounting Equipment (Order Separately)
DIN Rail
PFP-100N
PFP-50N
*The figures in parentheses are dimensions for the PFP-50N.
End Plate
PFP-M
Note:Two screws are included with the EJ1C-EDU for the End Plate.
Always attach End Plates to both sides.
Caution: All units are in millimeters unless otherwise indicated.
