Proximity Sensor with All-stainless Housing

E2FM

E2FM

Highly Durable Proximity Sensor for Tough Environments

Related Contents

E2FM Pick up

Primary Contents



Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Pre-wired Models

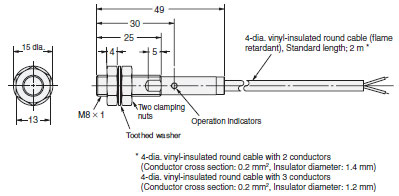

E2FM-X1R5[]

E2FM-X1R5[]_Dim

E2FM-X2[]

E2FM-X2[]_Dim

E2FM-X5[]

E2FM-X5[]_Dim

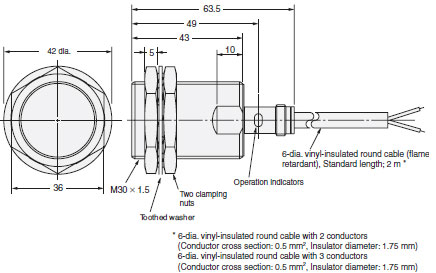

E2FM-X10[]

E2FM-X10[]_Dim

Pre-wired Connector Models

E2FM-X1R5D[]-M1GJ-[]

E2FM-X1R5D[]-M1GJ-[]_Dim

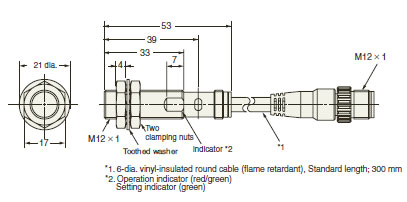

E2FM-X2D[]-M1GJ-[]

E2FM-X2D[]-M1GJ-[]_Dim

E2FM-X5D[]-M1GJ-[]

E2FM-X5D[]-M1GJ-[]_Dim

E2FM-X10D[]-M1GJ-[]

E2FM-X10D[]-M1GJ-[]_Dim

M12 Connector Models

E2FM-X1R5[][]-M1

E2FM-X1R5[][]-M1_Dim

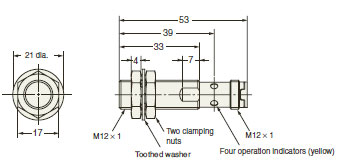

E2FM-X2[][]-M1

E2FM-X2[][]-M1_Dim

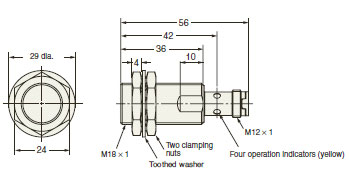

E2FM-X5[][]-M1

E2FM-X5[][]-M1_Dim

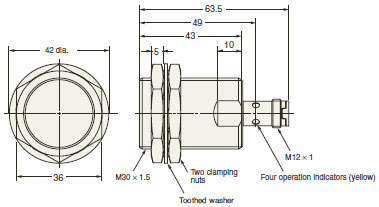

E2FM-X10[][]-M1

E2FM-X10[][]-M1_Dim

Mounting Hole Dimensions

E2FM_Mounting Hole Dimensions

Caution: All units are in millimeters unless otherwise indicated.
