Power Controllers

G3PX

G3PX

OMRON's unique design and carefully-selected materials made it possible to produce a compact and lightweight Power Controller.

Related Contents

Primary Contents



Single-phase Models

G3PX-220E[] Series

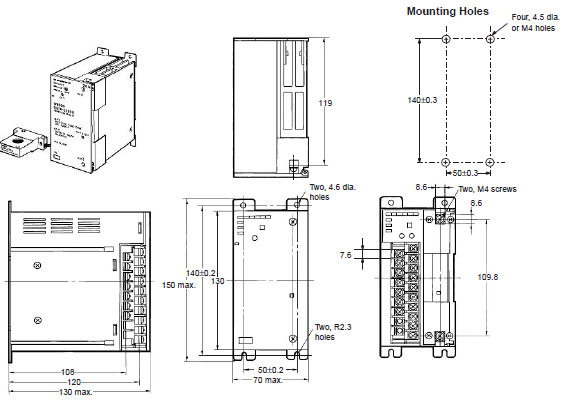

G3PX-220E[]_Dim

G3PX-240E[] Series

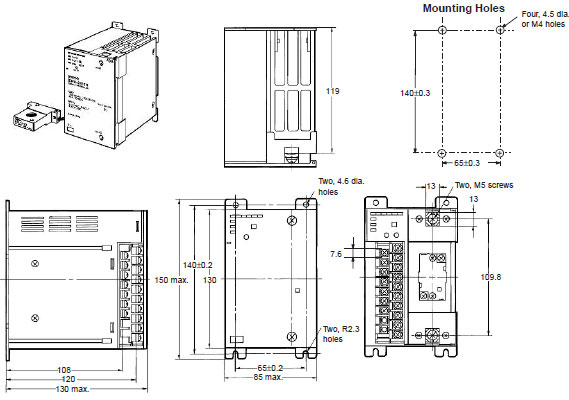

G3PX-240E[]_Dim

G3PX-260E[] Series

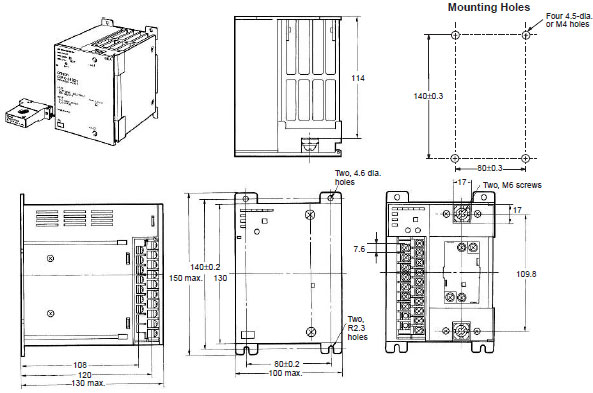

G3PX-260E[]_Dim

G32X-CT03[] Series
G32X-CT10[] Series

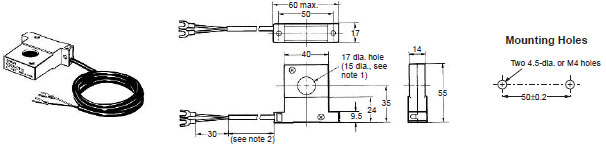

G32X-CT_Dim

Note:

1. Color of the hole
EH Series: Black
EHN Series: White
EC Series: Light gray
The size of the hole of CT Units for EC- and EHN-series models is 15 dia.

2. The G32X-CT03[] incorporates 30-cm solderless terminals and the G32X-CT10[] incorporates 100-cm solderless terminals.

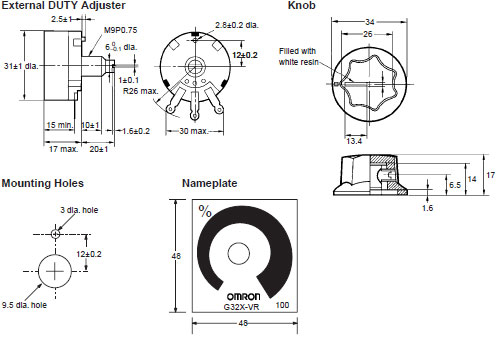

External Variable Resistor

G3PX_Dim

Caution: All units are in millimeters unless otherwise indicated.
