E3X-DAC-S

Easy and Reliable The Fiber Sensor That Sees in Color

Quick links to 'E3X-DAC-S' page in your country / territory.

Get more support via Products links, such as manuals and CAD files.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Amplifiers Units

Pre-wired Amplifier Units

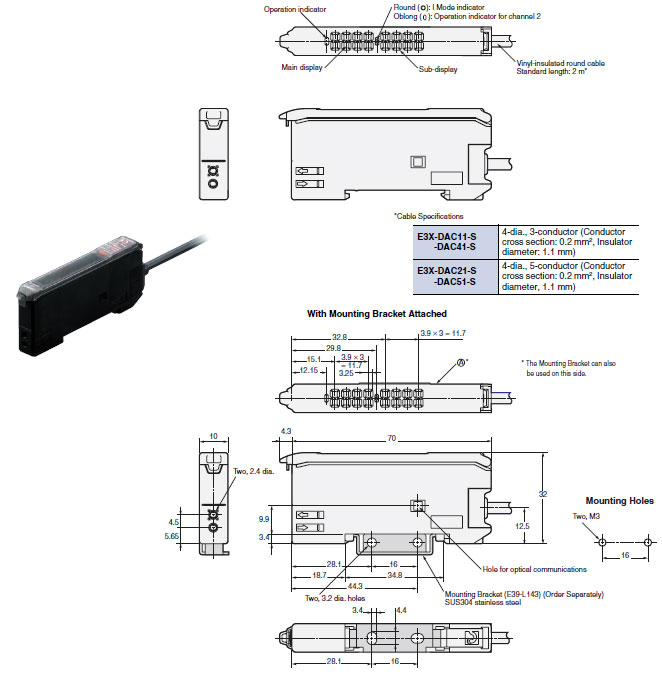

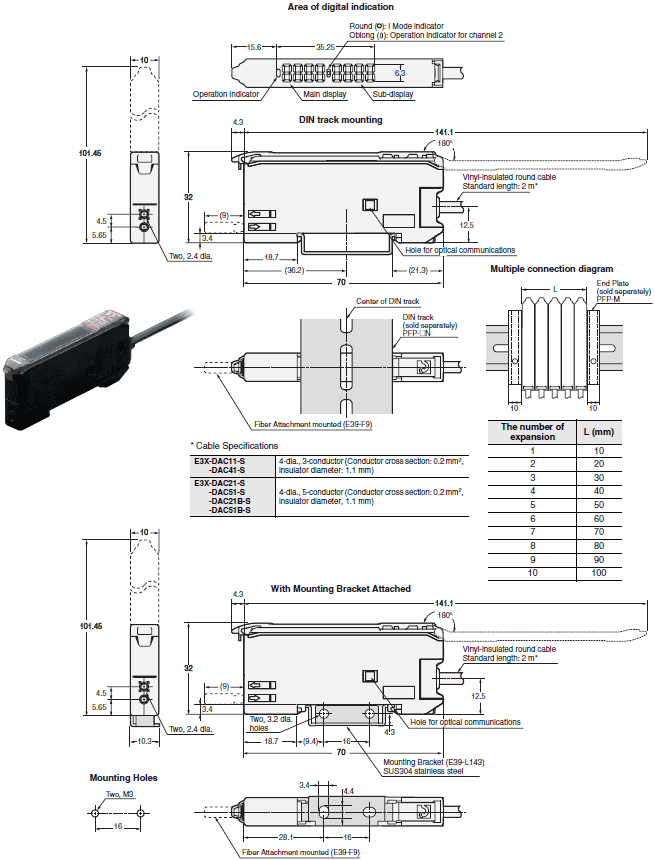

E3X-DAC11-S
E3X-DAC41-S
E3X-DAC21-S
E3X-DAC51-S

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

Amplifier Units with Connectors

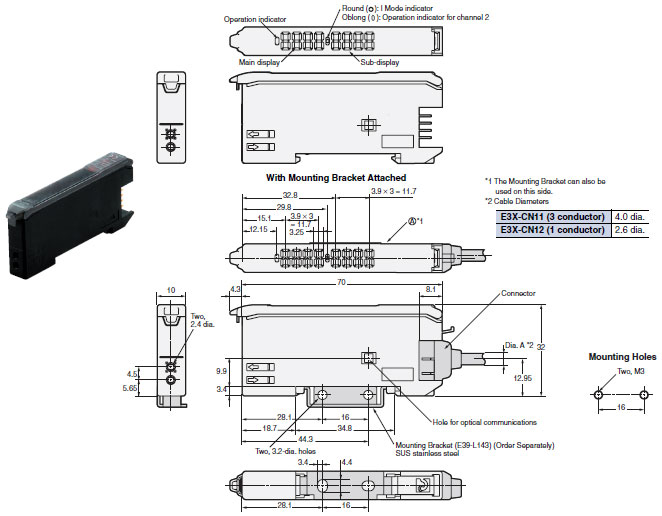

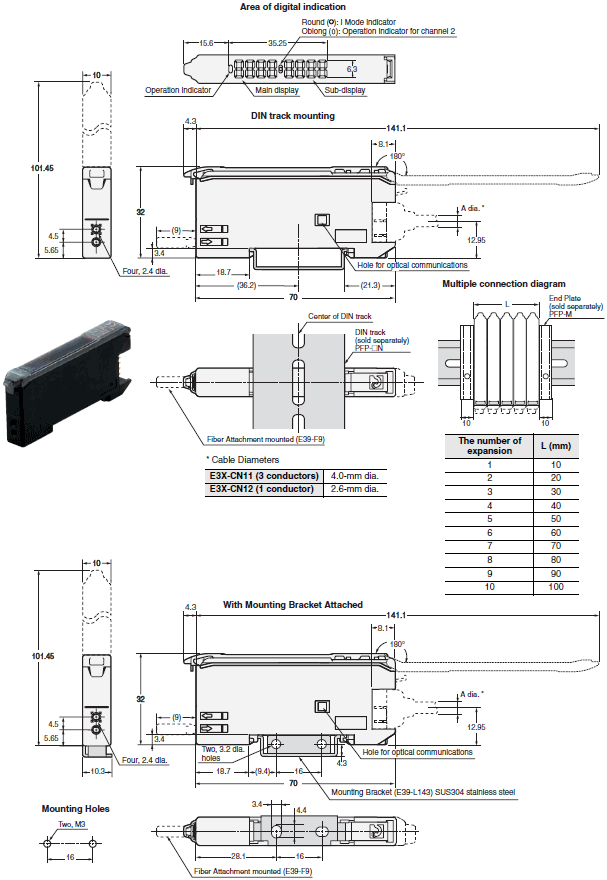

E3X-DAC6-S
E3X-DAC8-S

Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

Amplifier Unit Connectors

Master Connectors

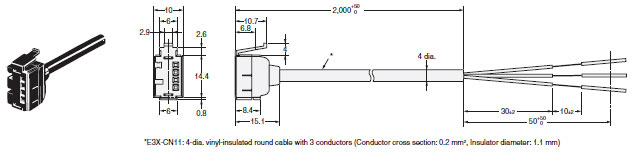

E3X-CN11

*E3X-CN11: 4 dia. cable/3 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)

Slave Connectors

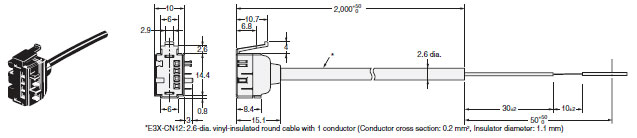

E3X-CN12

*E3X-CN12: 2.6 dia. cable/1 conductor/Standard length: 2 m (Conductor cross section: 0.2 mm² (AWG24), Insulator diameter: 1.1 mm)

Caution: All units are in millimeters unless otherwise indicated.

Sensors
