SitemapRelays with Forcibly Guided Contacts
G7SB
Low Profile Relays with Low Power Consumption
Data Sheet (572KB)
G7SB-3A1B
G7SB-2A2B
Terminal Arrangement/Internal Connection Diagram (Bottom View)
G7SB-3A1B
G7SA-2A2B
Note: Terminals 23-24, 33-34, and 43-44 are normally open. Terminals 11-12 and 21-22 are normally closed.
G7SB-5A1B
G7SB-4A2B

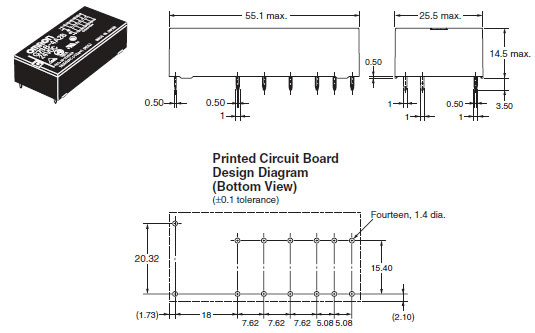

Terminal Arrangement/Internal Connection Diagram (Bottom View)
G7SB-5A1B
G7SA-4A2B
Note: Terminals 23-24, 33-34, 43-44, 53-54, and 63-64 are normally open. Terminals 11-12 and 21-22 are normally closed.
Caution: All units are in millimeters unless otherwise indicated.
