SitemapGeneral-purpose Relays
MK-S
New Super MK Relays. Models with Latching Lever Added to the Series.
Data Sheet (2112KB)
Quick links to 'MK-S' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
MK-S Pick up
Product Search
Note: Only items related to the Catalogue are suggested.

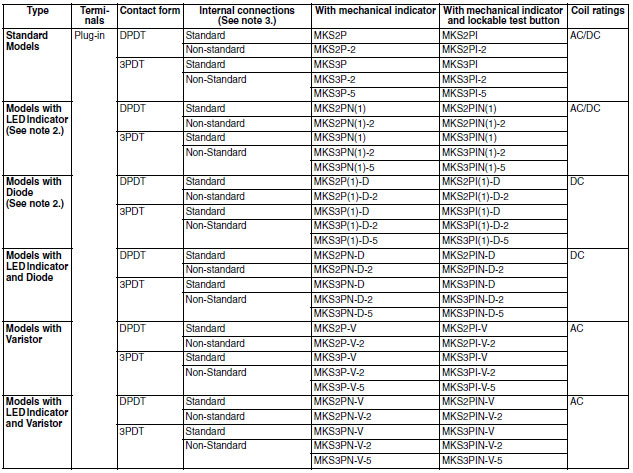

List of Models
| Type | Terminals | Contact form | Internal connections (See note 3.) | With mechanical indicator | With mechanical indicator and lockable test button | Coil ratings |
| Standard Models | Plug-in | DPDT | Standard | MKS2P | MKS2PI | AC/DC |
| Non-standard | MKS2P-2 | MKS2PI-2 | ||||
| 3PDT | Standard | MKS3P | MKS3PI | |||
| Non-Standard | MKS3P-2 | MKS3PI-2 | ||||
| MKS3P-5 | MKS3PI-5 | |||||
| Models with LED Indicator (See note 2.) | DPDT | Standard | MKS2PN(1) | MKS2PIN(1) | AC/DC | |
| Non-standard | MKS2PN(1)-2 | MKS2PIN(1)-2 | ||||
| 3PDT | Standard | MKS3PN(1) | MKS3PIN(1) | |||
| Non-Standard | MKS3PN(1)-2 | MKS3PIN(1)-2 | ||||
| MKS3PN(1)-5 | MKS3PIN(1)-5 | |||||
| Models with Diode (See note 2.) | DPDT | Standard | MKS2P(1)-D | MKS2PI(1)-D | DC | |
| Non-standard | MKS2P(1)-D-2 | MKS2PI(1)-D-2 | ||||
| 3PDT | Standard | MKS3P(1)-D | MKS3PI(1)-D | |||
| Non-Standard | MKS3P(1)-D-2 | MKS3PI(1)-D-2 | ||||
| MKS3P(1)-D-5 | MKS3PI(1)-D-5 | |||||
| Models with LED Indicator and Diode | DPDT | Standard | MKS2PN-D | MKS2PIN-D | DC | |
| Non-standard | MKS2PN-D-2 | MKS2PIN-D-2 | ||||
| 3PDT | Standard | MKS3PN-D | MKS3PIN-D | |||
| Non-Standard | MKS3PN-D-2 | MKS3PIN-D-2 | ||||
| MKS3PN-D-5 | MKS3PIN-D-5 | |||||
| Models with Varistor | DPDT | Standard | MKS2P-V | MKS2PI-V | AC | |
| Non-standard | MKS2P-V-2 | MKS2PI-V-2 | ||||
| 3PDT | Standard | MKS3P-V | MKS3PI-V | |||
| Non-Standard | MKS3P-V-2 | MKS3PI-V-2 | ||||
| MKS3P-V-5 | MKS3PI-V-5 | |||||
| Models with LED Indicator and Varistor | DPDT | Standard | MKS2PN-V | MKS2PIN-V | AC | |
| Non-standard | MKS2PN-V-2 | MKS2PIN-V-2 | ||||
| 3PDT | Standard | MKS3PN-V | MKS3PIN-V | |||
| Non-Standard | MKS3PN-V-2 | MKS3PIN-V-2 | ||||
| MKS3PN-V-5 | MKS3PIN-V-5 |
Note:
1.When ordering, add the rated voltage to the model number. Rated voltages are given in the coil ratings table in the specifications.
2.The DC coil comes in two types: standard coil polarity and reverse coil polarity.
Refer to Terminal Arrangement and Internal Connections (Bottom View) on Data Sheet.
3.Refer to Terminal Arrangement and Internal Connections (Bottom View) for non-standard internal connections on Data Sheet.

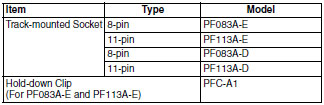

List of Models (Order Separately)
| Item | Type | Model |
| Track-mounted Socket | 8-pin | PF083A-E |
| 11-pin | PF113A-E | |
| 8-pin | PF083A-D | |
| 11-pin | PF113A-D | |
| Hold-down Clip (For PF083A-E and PF113A-E) | PFC-A1 | |
