Ratings

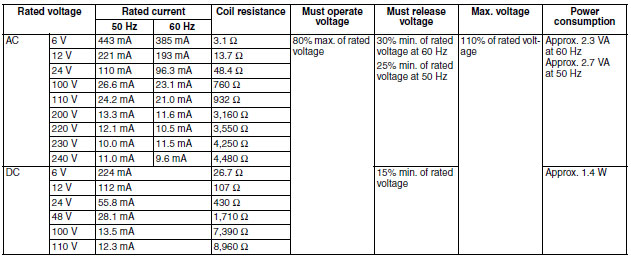

Coil Ratings

Rated voltageRated currentCoil
resistance
Must operate
voltage
Must release
voltage
Max. voltagePower
consumption
50 Hz60 Hz
AC6 V443 mA385 mA3.1 Ω80% max. of
rated voltage
30% min. of rated
voltage at 60 Hz
25% min. of rated
voltage at 50 Hz
110% of rated
voltage
Approx. 2.3 VA
at 60 Hz
Approx. 2.7 VA
at 50 Hz
12 V221 mA193 mA13.7 Ω
24 V110 mA96.3 mA48.4 Ω
100 V26.6 mA23.1 mA760 Ω
110 V24.2 mA21.0 mA932 Ω
200 V13.3 mA11.6 mA3,160 Ω
220 V12.1 mA10.5 mA3,550 Ω
230 V10.0 mA11.5 mA4,250 Ω
240 V11.0 mA9.6 mA4,480 Ω
DC6 V224 mA26.7 Ω15% min. of rated
voltage
Approx. 1.4 W
12 V112 mA107 Ω
24 V55.8 mA430 Ω
48 V28.1 mA1,710 Ω
100 V13.5 mA7,390 Ω
110 V12.3 mA8,960 Ω

Note:

1.The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/−20% for AC rated current and ±15% for DC coil resistance.

2.Performance characteristic data are measured at a coil temperature of 23°C.

3.The maximum voltage is one that is applicable instantaneously to the Relay coil at 23°C and not continuously.

4.For DC-operated Relays with the LED indicator built-in, add an LED current of approx. 5 mA to the rated current.

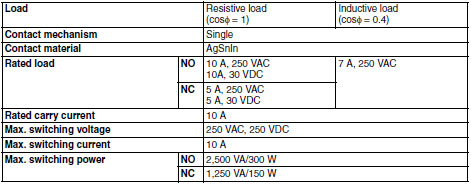

Contact Ratings

LoadResistive load (cosΦ = 1)Inductive load (cosΦ = 0.4)
Contact mechanismSingle
Contact materialAgSnIn
Rated loadNO10 A, 250 VAC
10A, 30 VDC
7 A, 250 VAC
NC5 A, 250 VAC
5 A, 30 VDC
Rated carry current10 A
Max. switching voltage250 VAC, 250 VDC
Max. switching current10 A
Max. switching powerNO2,500 VA/300 W
NC1,250 VA/150 W

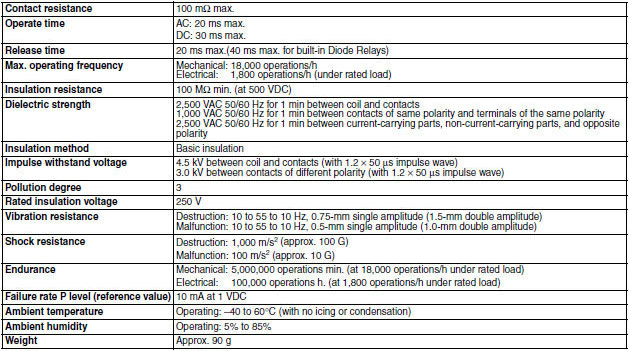

Characteristics

Contact resistance100 mΩ max.
Operate timeAC: 20 ms max.
DC: 30 ms max.
Release time20 ms max. (40 ms max. for built-in Diode Relays)
Max. operating frequencyMechanical: 18,000 operations/h
Electrical: 1,800 operations/h (under rated load)
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength2,500 VAC 50/60 Hz for 1 min between coil and contacts
1,000 VAC 50/60 Hz for 1 min between contacts of same polarity and terminals of the same polarity
2,500 VAC 50/60 Hz for 1 min between current-carrying parts, non-current-carrying parts, and opposite polarity
Insulation methodBasic insulation
Impulse withstand voltage4.5 kV between coil and contacts (with 1.2 × 50 μs impulse wave)
3.0 kV between contacts of different polarity (with 1.2 × 50 μs impulse wave)
Pollution degree3
Rated insulation voltage250 V
Vibration resistanceDestruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Shock resistanceDestruction: 1,000 m/s2 (approx. 100 G)
Malfunction: 100 m/s2 (approx. 10 G)
EnduranceMechanical: 5,000,000 operations min. (at 18,000 operations/h under rated load)
Electrical: 100,000 operations h. (at 1,800 operations/h under rated load)
Failure rate P level
(reference value)
10 mA at 1 VDC
Ambient temperatureOperating: -40 to 60°C (with no icing or condensation)
Ambient humidityOperating: 5% to 85%
WeightApprox. 90 g

Note:

1.The values given above are initial values.

2.P level: λ60 = 0.1 × 10-6/operation

3.Ambient temperature of models with LED indicator is −25 to 60°C.

Caution: In the interenst of product improvement, specifications are subject to change without notice.
