E5AN-H/E5EN-H(96 x 96 mm and 48 x 96 mm)

Advanced Digital Temperature Controller

E5AN-H/E5EN-H(96 x 96 mm and 48 x 96 mm)

A New High-performance Controller: High Resolution, High Speed, and High Input Accuracy. Logic Operations and Preventive Maintenance Function. Plus Infrared Port on Front Panel.

Data Sheet (1558KB)

Related Contents

Quick links OMRON IA Temperature Controllers in your country.

Europe
- Austria
- Belgium
- Czech Republic
- Denmark
- Finland
- France
- Germany
- Hungary
- Italy
- Latvia
- Lithuania
- Netherlands
- Norway
- Poland
- Portugal
- Russia
- Spain
- Sweden
- Switzerland
- Turkey
- United Kingdom

Middle East

Please contact Europe headquarters.
Africa
- South Africa

Greater China
- China
- Taiwan
Asia-Pacific
- Australia
- India
- Indonesia
- Malaysia
- New Zealand
- Philippines
- Singapore
- Thailand
- Vietnam

Japan / Korea
- Japan
- Korea
Americas

Primary Contents

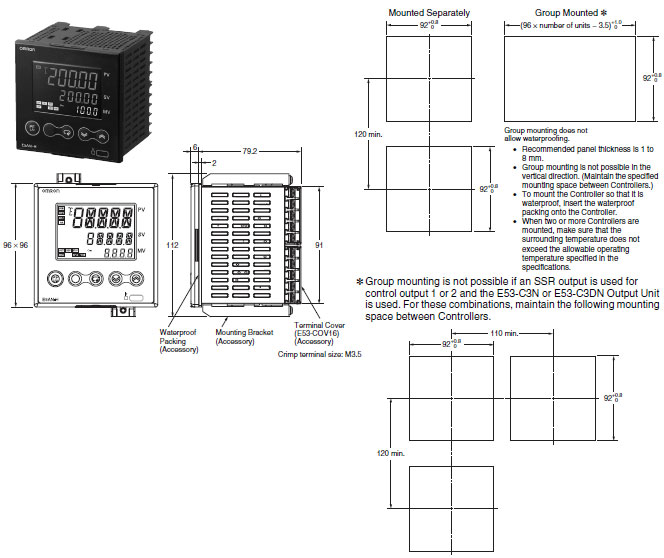

E5AN-H

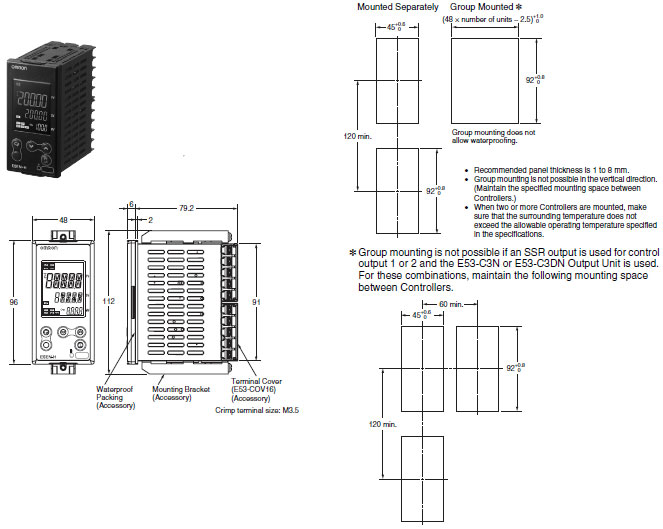

E5EN-H

Accessories (Optional)

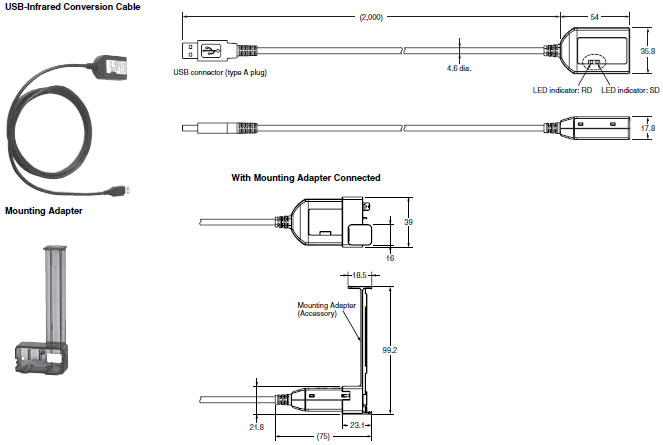

USB-Infrared Conversion Cable
E58-CIFIR

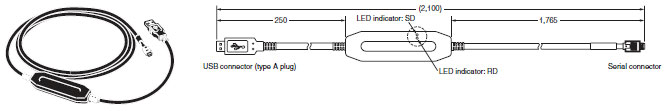

USB-Serial Conversion Cable
E58-CIFQ1

Terminal Covers
E53-COV16 (Six Covers provided.)

Waterproof Packing

Y92S-P4 (for DIN 96 x 96)

Y92S-P5 (for DIN 48 x 96)

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.

Current Transformers

E54-CT1

E54-CT3

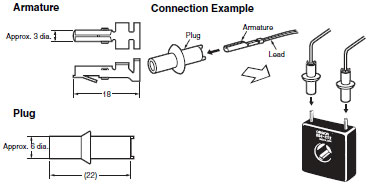

E54-CT3 Accessory

E54-CT1
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E54-CT3
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

Caution: All units are in millimeters unless otherwise indicated.
