SitemapSolid-state Timer
H3M
Data Sheet (994KB)
Quick links to 'H3M' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
H3M(-H)
Accessories (Order Separately)

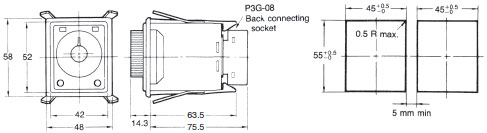

Adapter with Flush Mounting
Y92F-40
Note:When two or more timers mounted in line are to be continuously energized at the same time after the lapse of the set time, be sure to limit the carry current to less than 1 A. When using the timers at an ambient temperature of more than 40°C, be sure to reset the timers immediately after the set time has elapsed.

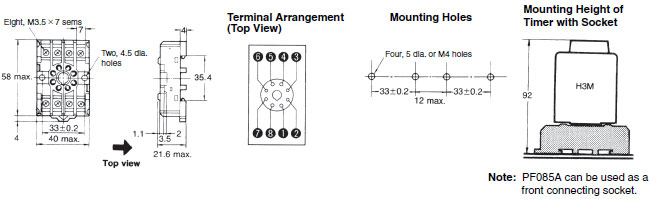

Track Mounted/Front Connecting Socket
PF085A
Hold-down Clips (Attached)
PHC-1 For PF085A

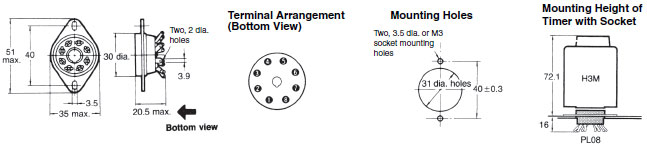

Back Connecting Socket
PL08

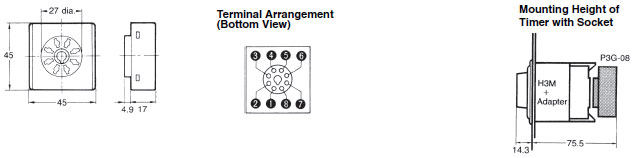

P3G-08
Caution: All units are in millimeters unless otherwise indicated.
