Accessories (Optional)
Use the PYF[]A, PY[], PY[]-02, or PY[]QN(2) to mount the H3Y. When ordering any one of these sockets, replace "[]" with "08" or "14."
Track Mounting/Front Connecting Sockets

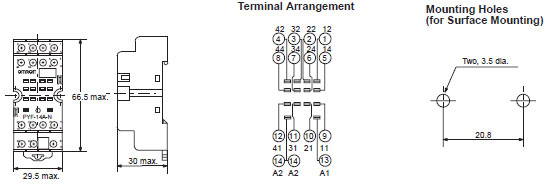

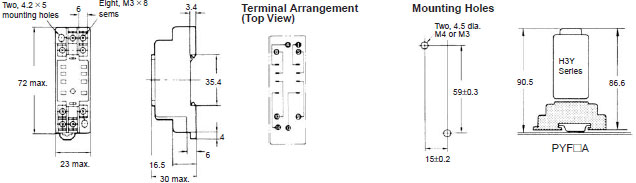

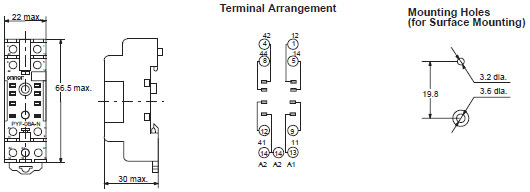

PYF08A

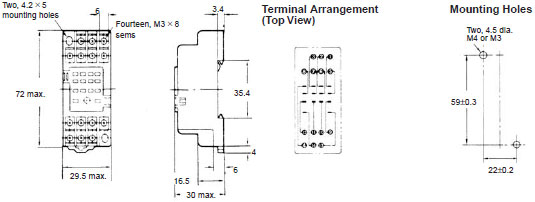

PYF14A
PYF08A-N
PYF14A-N

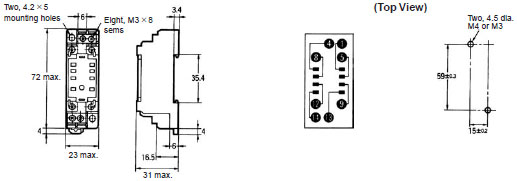

PYF08A-E

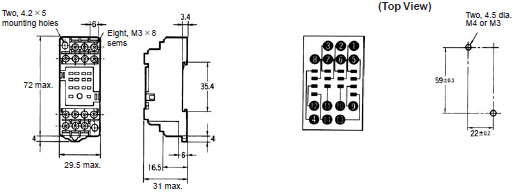

PYF14A-E
Back Connecting Sockets

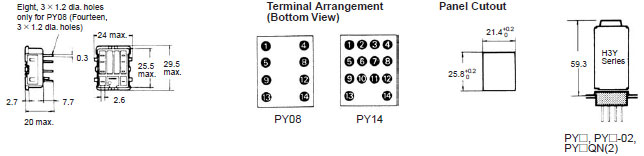

PY08, PY14

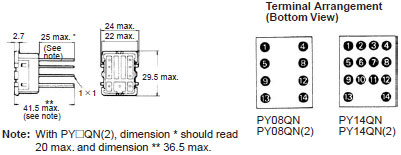

PY08QN, PY14QN, PY08QN(2), PY14QN(2)

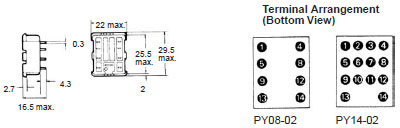

PY08-02, PY14-02
Socket Mounting Plates (t = 1.6)
Note: PYP-18 may be cut to any desired length.
PYP-1
PYP-18
Relay Hold-down Clips
Y92H-3 for PYF[]A Socket
(Set of Two Clips)
Mounting Track
PFP-100N/PFP-50N (see note 1)
Y92H-4 for PY[] Socket
End Plate
PFP-M
Spacer
PFP-S
Caution: All units are in millimeters unless otherwise indicated.
