SitemapSolid-state Timer
H3YN
Miniature Timer with Multiple Time Ranges and Multiple Operating Modes
Data Sheet (2026KB)
Quick links to 'H3YN' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Timers
H3YN-2/-21 Front Mounting
H3YN-4/-41 Front Mounting
H3YN-4-Z/-41-Z
Mounting Height
Accessories (Order Separately)
Connecting Sockets
Use the PYF[]A, PY[], PY[]-02, or PY[]QN(2) to mount the H3YN. When ordering any one of these Sockets, replace "[]" with "08" or "14."

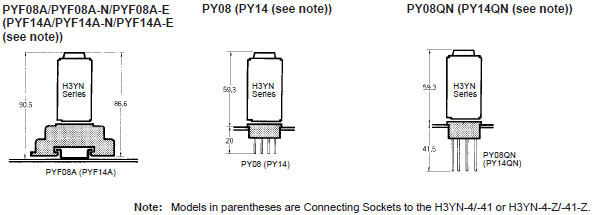

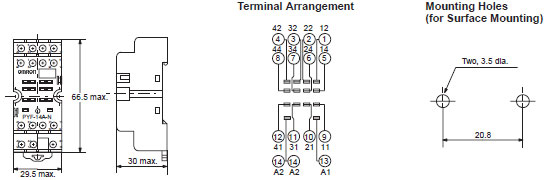

Track Mounting/Front Connecting Sockets
PYF08A
PYF-14A
PYF-08A-N
PYF-14A-N
PYF08A-E
PYF14A-E
Back Connecting Sockets

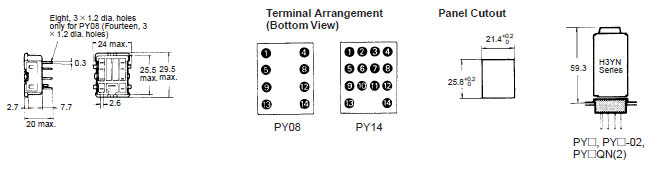

PY08, PY14

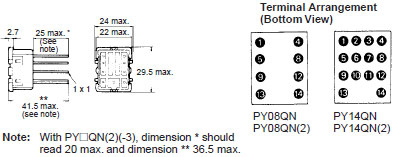

PY08QN, PY14QN
PY08QN(2), PY14QN(2)

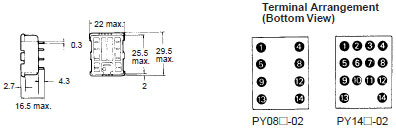

PY08-02, PY14-02

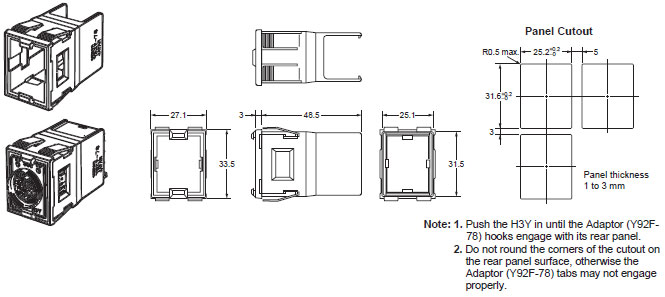

Flush Mounting Adapter
Y92F-78
Socket Mounting Plates

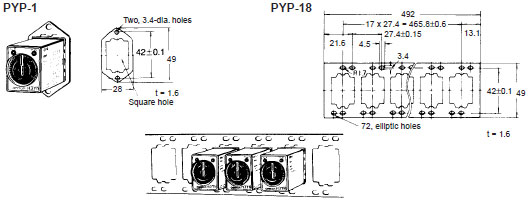

The PYP-1 is a Socket Mounting Plate for a single Socket and the PYP-18 is a Socket Mounting Plate for 18 Sockets. The PYP-18 can be cut appropriately according to the number of Sockets to be used.
Hold-down Clips

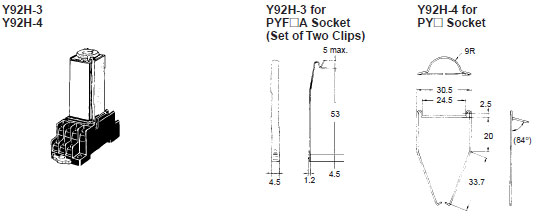

The Hold-down Clip makes it possible to mount the H3YN securely and prevent the H3YN from falling out due to vibration or shock.
Caution: All units are in millimeters unless otherwise indicated.
