SitemapSmart Sensor (2D Measurement Sensor)
ZG2
2D Laser Profile Measurement System. ZG2 debut! Achieving stable measurement through innovative technology.
Data Sheet (4196KB)
Quick links to 'ZG2' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Sensor Heads

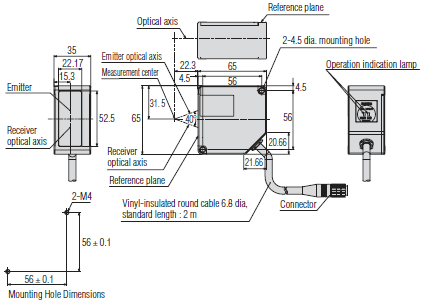

ZG2-WDS3VT
〈Regular reflection〉
〈Diffuse reflective〉

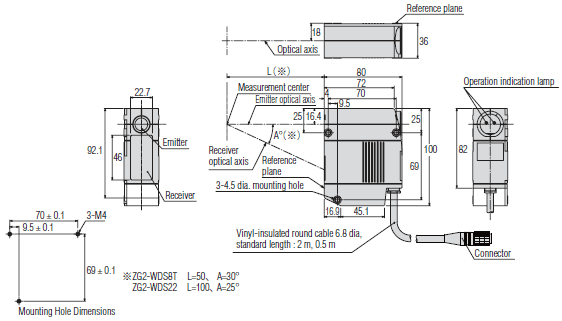

ZG2-WDS8T/WDS22
〈Diffuse reflective〉

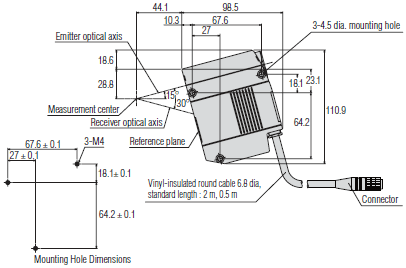

ZG2-WDS8T
〈Regular reflection〉

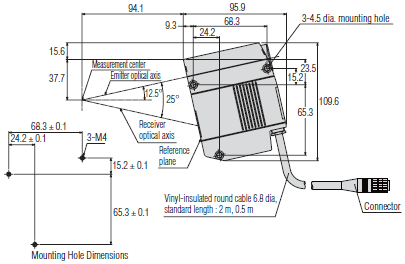

ZG2-WDS22
〈Regular reflection〉

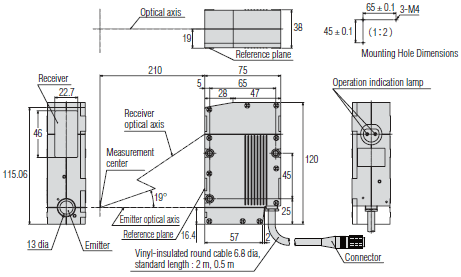

ZG2-WDS70
〈Diffuse reflective〉
Sensor Controller
ZG2-WDC11/WDC41
Data Storage Unit
ZG2-DSU11/DSU41

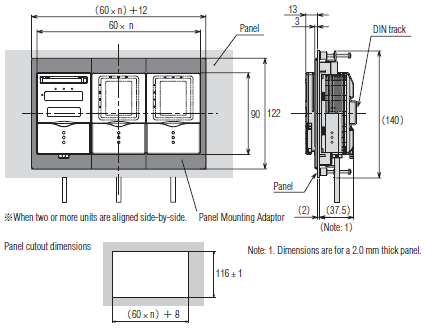

Panel Mounting Adaptor
ZS-XPM1/XPM2 (Dimensions for mounting on a control panel)
Real-time Parallel Output Unit
ZG-RPD11/RPD41
Caution: All units are in millimeters unless otherwise indicated.
