SitemapDigital Timer
H5CN
Miniature DIN-sized (48 x 48 mm) Quartz Timer with Abundant Series Versions
Data Sheet (2379KB)
Quick links to 'H5CN' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
H5CN Pick up
Dimensions without Flush Mounting Adapter
H5CN-X[]N/-Y[]N/-X[]NS (Flush Mounting/Surface Mounting Models)
![H5CN-X[]N/-Y[]N/-X[]NS_Dim](img/H5CN_dm_1.jpg)
H5CN-X[]NM (Flush Mounting/Surface Mounting Models)
![H5CN-X[]NM_Dim](img/H5CN_dm_2.jpg)

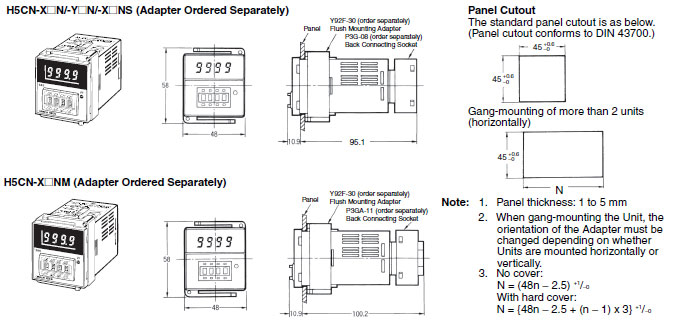

Dimensions with Flush Mounting Adapter

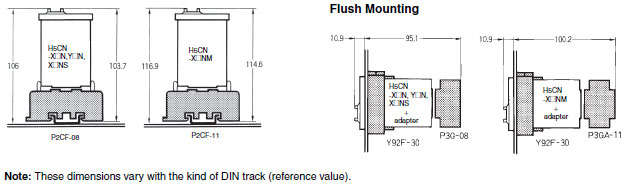

Dimensions with Front Connecting Socket
Accessories (Order Separately)
Track Mounting/Front Connecting Socket

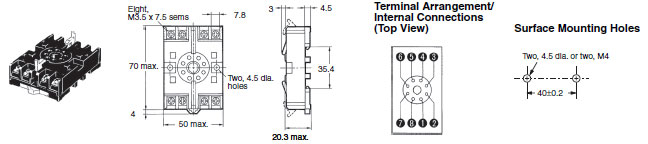

P2CF-08
Track Mounting/Front Connecting Socket

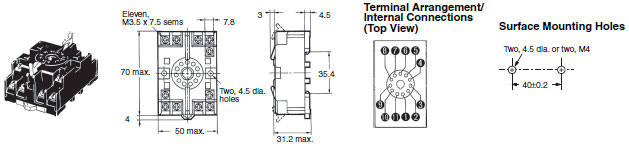

P2CF-11
Back Connecting Socket

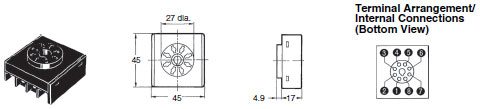

P3G-08

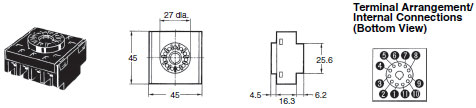

P3GA-11
Backup Battery

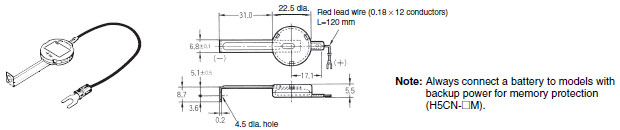

Y92S-20
Soft Cover
Y92A-48D (See note 1.)
Hard Cover
Y92A-48B (See note 2.)
Note:
1.The soft protective cover allows the set value to be set by depressing the thumbwheel switches through it. It may be, however, difficult to make setting changes of the Timer with the Y92A-48D Protective Cover attached, which must be taken into consideration before using the Y92A-48D Protective Cover.
2.The hard protective cover prevents the set value from being altered due to accidental contact with the push type thumbwheel switch.
Flush Mounting Adapter
Y92F-30
Caution: All units are in millimeters unless otherwise indicated.
