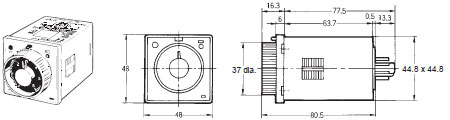

H2C

Motor Timers

H2C/H2C-S/H2C-R/H2C-SR/H2C-8/H2C-8R

For Flush Mounting

For a load current of 3 A max., dimension L becomes 3 mm min. with an interval of 0 mm between timers.
For a load current of 6 A max., dimension L becomes 8 mm min. with an interval of 5 mm between timers.
When using in locations with high ambient temperatures, ensure that there is an interval of at least 5 mm between timers.

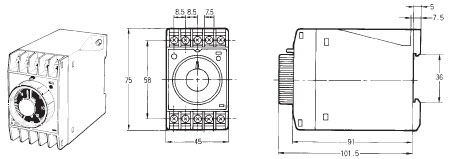

H2C-F/H2C-FR

Mounting Holes

For a load current of 1 A max., dimension L becomes 10 mm min. with an interval of 0 mm between timers.
For a load current of 3 A max., dimension L becomes 15 mm min. with an interval of 5 mm between timers.
For a load current of 6 A max., dimension L becomes 20 mm min. with an interval of 10 mm between timers.

Dimensions with Front Connecting Socket
P2CF-08-[]/P2CF-11-[]

^*These dimensions vary with the kind of DIN track (reference value).

Accessories (Optional)

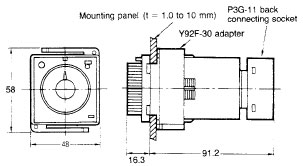

Adapter for Flush Mounting
Y92F-30

Track Mounting/Front Connecting Socket

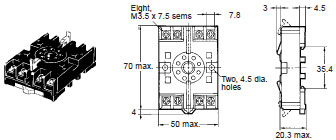

P2CF-08

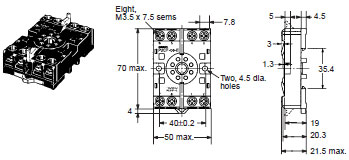

P2CF-08-E (Finger Safe Terminal Type)
Conforming to VDE0106/P100

Track Mounting/Front Connecting Socket

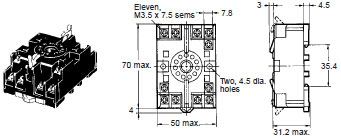

P2CF-11

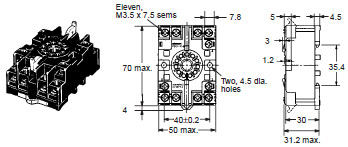

P2CF-11-E (Finger Safe Terminal Type)
Conforming to VDE0106/P100

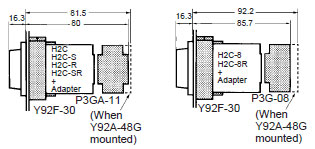

Back Connecting Socket
P3G-08

P3GA-11

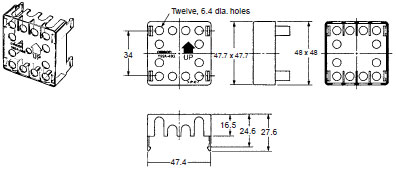

Finger Safe Terminal Cover

Conforming to VDE0106/P100

Y92A-48G
(Attachment for P3G-08/P3GA-11 Socket)
