SitemapDigital Counter (DIN 72 × 72)
H7AN
Data Sheet (1432KB)
Quick links to 'H7AN' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
H7AN Pick up
Product Search
Note: Only items related to the Catalogue are suggested.
Each model is sold together with a mounting bracket.

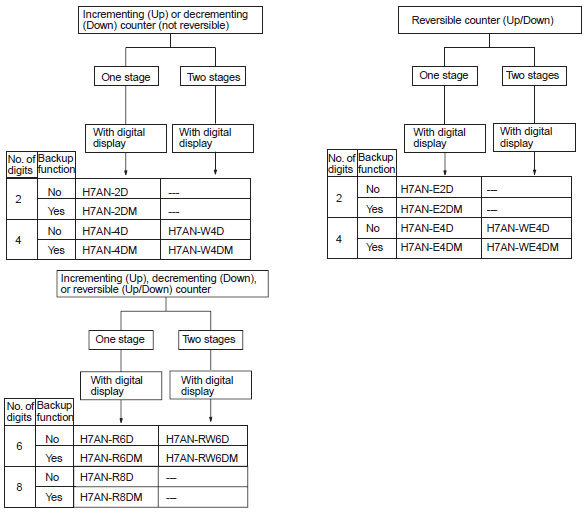

Preset Counter
| No. of digits | Backup function | Incrementing (Up) or decrementing (Down) counter (not reversible) | Reversible counter (Up/Down) | ||
| One stage | Two stages | One stage | Two stages | ||
| With digital display | With digital display | With digital display | With digital display | ||
| 2 | No | H7AN-2D | --- | H7AN-E2D | --- |
| Yes | H7AN-2DM | --- | H7AN-E2DM | --- | |
| 4 | No | H7AN-4D | H7AN-W4D | H7AN-E4D | H7AN-WE4D |
| Yes | H7AN-4DM | H7AN-W4DM | H7AN-E4DM | H7AN-WE4DM | |
| No. of digits | Backup function | Incrementing (Up), decrementing (Down), or reversible (Up/Down) counter | |
| One stage | Two stages | ||
| With digital display | With digital display | ||
| 6 | No | H7AN-R6D | H7AN-RW6D |
| Yes | H7AN-R6DM | H7AN-RW6DM | |
| 8 | No | H7AN-R8D | --- |
| Yes | H7AN-R8DM | --- | |
Totalizing Counter
| No. of digits | Backup function | Incrementing (Up) or decrementing (Down) counter (not reversible) | Reversible counter (Up/Down) |
| 4 | No | H7AN-T4 | H7AN-ET4 |
| Yes | H7AN-T4M | H7AN-ET4M |
| No. of digits | Backup function | Reversible counter (Up/Down) |
| 6 | No | H7AN-RT6 |
| Yes | H7AN-RT6M | |
| 8 | No | H7AN-RT8 |
| Yes | H7AN-RT8M |
Note:Specify the power supply voltage when ordering.
