H7E

H7EC-N

H7EC-N

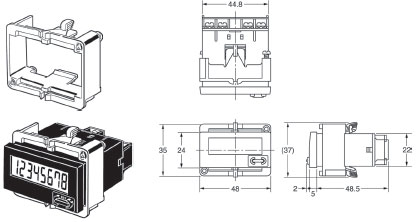

Dimensions with Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

The appropriate thickness of the panel is 1 to 5 mm.

H7ET-N

H7ET-N

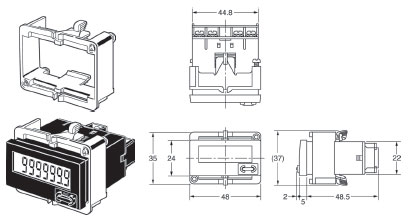

Dimensions with Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

The appropriate thickness of the panel is 1 to 5 mm.

H7ER-N

H7ER-N

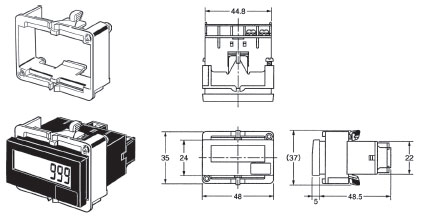

Dimensions with Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

The appropriate thickness of the panel is 1 to 5 mm.

Flush Mounting
H7EC-N[]P/H7ET-NP

PCB Processing Dimensions
(Soldering Surface)

Note: Processing dimensions are for 28-pin IC socket.

Accessories (Optional) (Common)

H7E (Except for PCB-mounting Counter)

The H7E models are supplied with a mounting bracket (Y92F-34) and nut. Additionally, the Y92F-75/-76/-77B Flush Mounting Adapters shown here allow the H7E models to be fitted to existing panel cutouts.

Y92F-35
Compact Flush Mounting Bracket

Degree of protection (front): IP40 (not waterproof)
The Y92F-76 adapter can be used. The DIP switch of the H7E[]-N can be operated in mounted condition. Vibration resistance and shock resistant are the same level as the H7E[]-N series.

The minimum mounting interval is 30 mm.

Note: An interval of 40 mm is recommended for easier wiring.

Do not allow the ambient temperature of the H7E[]-N to exceed the specifications (55°C).

Mounting is possible onto panels with a thickness of 1 to 5 mm.

Y92F-75
Flush Mounting Adapter
for 26 × 45.3 Rectangular Cutout

Use mounting bracket supplied with the Counter

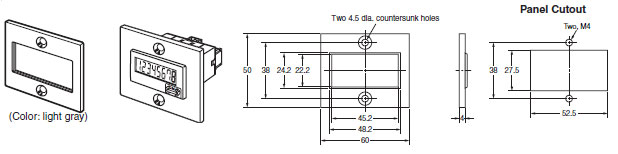

Y92F-76
Flush Mounting Adapter
for 27.5 × 52.5 Rectangular Cutout

Use the Y92F-76 together with the Y92F-35 Compact
Flush Mounting Bracket.

Y92F-77B
Flush Mounting Adapter
for 24.8 × 48.8 Rectangular Cutout

Use mounting bracket supplied with the Counter

Note: The mounting panel thickness should be between 1 and 5 mm.

Y92S-37
Wire-wrap Terminal (Set of Two Terminals)

When using the Wire-wrap Terminal, be sure to use the correct wires and peripheral devices. (The correct wires, bits and sleeves are shown in the table on the right.)

Y92S-36
Lithium Battery (3 V)
