Primary Contents



Terminals

Screw Terminals (-B)

A_Screw Terminals

Solder Terminal (-A)

("-A" is not included in the model numbers.)

A_Solder Terminal

Note:
1. Appropriate terminal screw tightening torque: 0.78 to 1.18 N·m.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Mounting Holes

Use M4 mounting screws with plane washers or spring washers to securely mount the Switch. Tighten the screws to a torque of 1.18 to 1.47 N·m.

A_Mounting Holes1

The Switch can be panel mounted, provided that the hexagonal nut of the actuator is tightened to a torque of 2.94 to 4.9 N·m.

A_Mounting Holes2

Dimensions and Operating Characteristics

The models, illustrations, and graphics are for screw-terminal models. (The dimensions for models that are omitted here are the same as for pin-plunger models.)

Pin Plunger
A-20G-B

A-20G-B_Dim

Short Spring Plunger
A-20GD-B

A-20GD-B_Dim

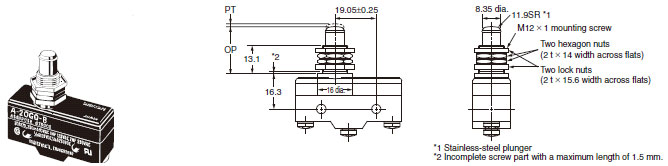

Panel Mount Plunger
A-20GQ-B

A-20GQ-B_Dim

Note: Do not use both M12 mounting screw and mounting holes at the same time.

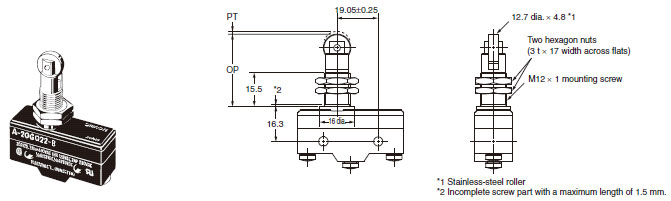

Panel Mount Roller Plunger
A-20GQ22-B

A-20GQ22-B_Dim

Note: Do not use both M12 mounting screw and mounting holes at the same time.

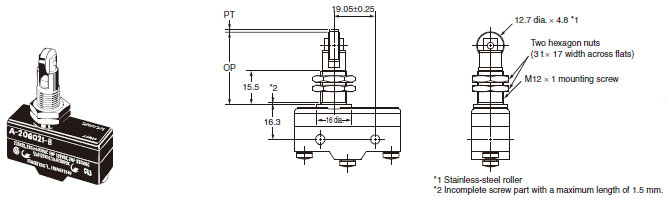

Panel Mount Cross Roller Plunger
A-20GQ21-B

A-20GQ21-B_Dim

Note: Do not use both M12 mounting screw and mounting holes at the same time.

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

A_Operating Characteristics1

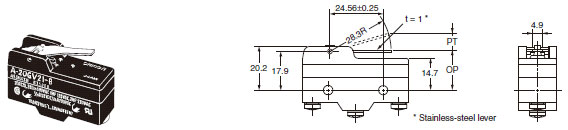

Short Hinge Lever
A-20GV21-B

A-20GV21-B_Dim

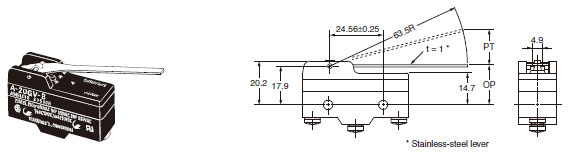

Hinge Lever
A-20GV-B

A-20GV-B_dim

Short Hinge Roller Lever
A-20GV22-B

A-20GV22-B_Dim

Hinge Roller Lever
A-20GV2-B

A-20GV2-B_Dim

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

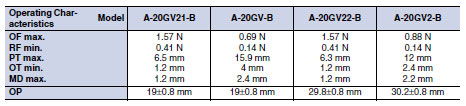

A_Operating Characteristics2

Caution: All units are in millimeters unless otherwise indicated.
