SitemapMiniature Limit Switch
D4CC
Many Models Including Roller Lever Switches are Only 16-mm Thick with Connector
Data Sheet (498KB)
Quick links OMRON IA Limit Switches in your country.
-
- Middle East
-
Please contact Europe headquarters.
D4CC Pick up
Switches
Limit Switches
The [] in each model number is replaced with the code expressing the rated load of the model. Refer to Datasheet.
Pin Plunger

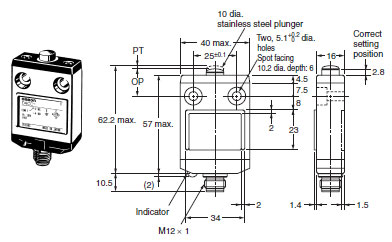

D4CC-[]001
![D4CC-[]001_Dim](img/d4cc_dm_1.jpg)
Roller Plunger
D4CC-[]002

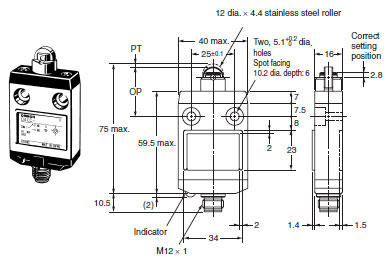

![D4CC-[]002_Dim](img/d4cc_dm_2.jpg)
Crossroller Plunger

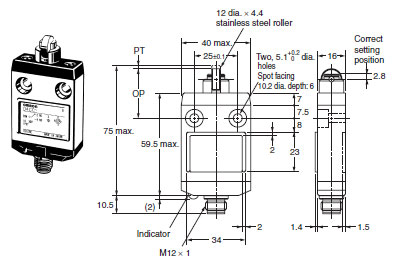

D4CC-[]003
![D4CC-[]003_Dim](img/d4cc_dm_3.jpg)
Roller Lever
D4CC-[]024

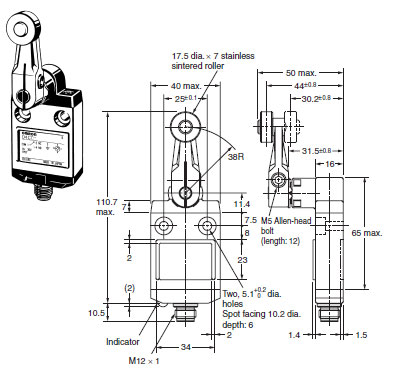

![D4CC-[]024_Dim](img/d4cc_dm_4.jpg)
Sealed Pin Plunger
D4CC-[]031

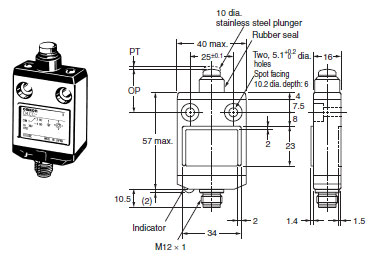

![D4CC-[]031_Dim](img/d4cc_dm_5.jpg)

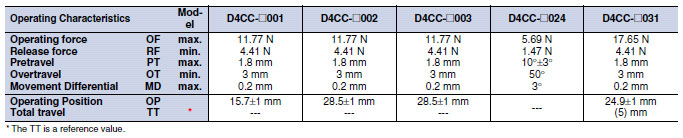

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Sealed Roller Plunger

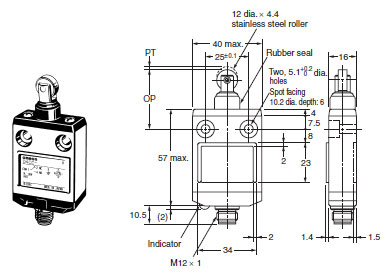

D4CC-[]032
![D4CC-[]032_Dim](img/d4cc_dm_7.jpg)
Sealed Crossroller Plunger

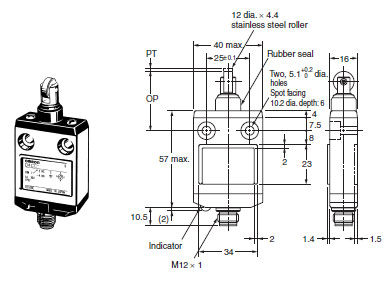

D4CC-[]033
![D4CC-[]033_Dim](img/d4cc_dm_8.jpg)
Plastic Rod
D4CC-[][]50

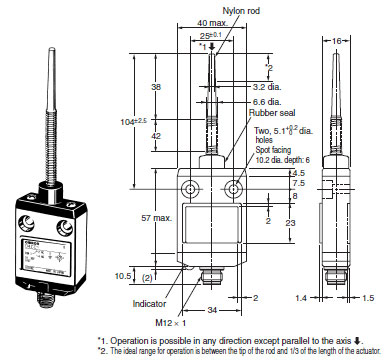

![D4CC-[][]50_Dim](img/d4cc_dm_9.jpg)
Center Roller Lever

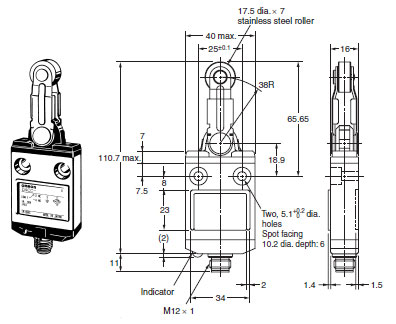

D4CC-[][]60
![D4CC-[][]60_Dim](img/d4cc_dm_10.jpg)

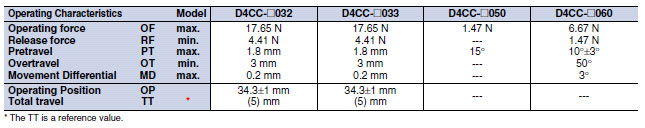

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Applicable Cables
Select one of the specified Connector Plugs from the following table.
XS2F-D421-[]80-A (For DC)
XS2F-A421-[]90-A (For AC)

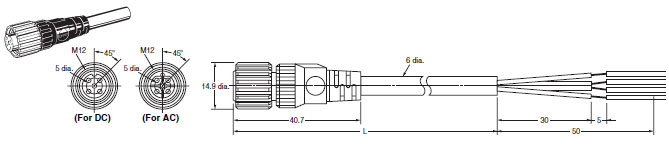

![XS2F-D421-[]80-A_Dim](img/d4cc_dm_12.jpg)
Special Mounting Plates
(Limit Switches are not attached to the Plates.)

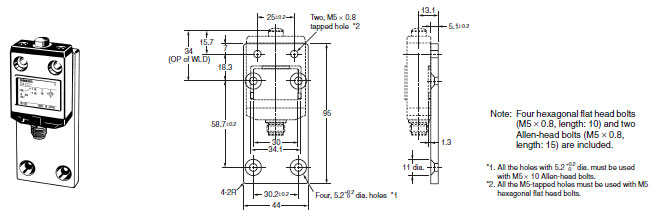

D4C-P001 (For D4CC-[]001)

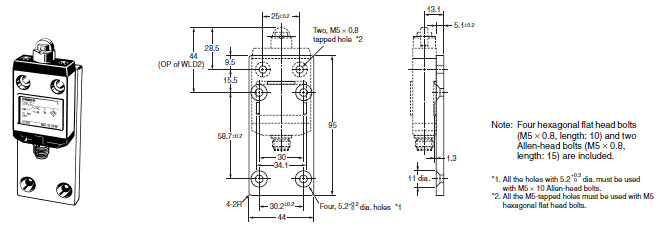

D4C-P002 (For D4CC-[]002)

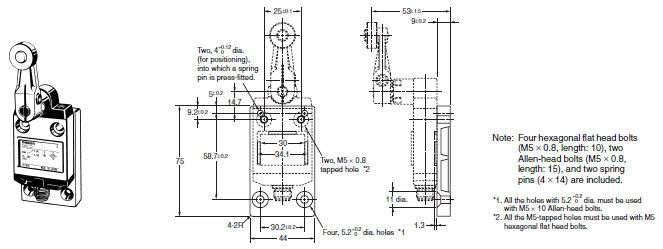

D4C-P020 (For D4CC-[]024)
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Remarks
There is no difference in mounting pitch between the Mounting Plate and the WL. The mounting depth of the D4CC with the Mounting Plate attached is, however, shorter than that of the panel-mounted WL.
Caution: All units are in millimeters unless otherwise indicated.
