SitemapMiniature Limit Switch
D4CC
Many Models Including Roller Lever Switches are Only 16-mm Thick with Connector
Data Sheet (498KB)
Quick links OMRON IA Limit Switches in your country.
-
- Middle East
-
Please contact Europe headquarters.
D4CC Pick up
Product Search
Note: Only items related to the Catalogue are suggested.
Switches
Limit Switches
| Actuator | Ratings | 1 A at 125 VAC | 1 A at 30 VDC | ||
| LED indicator | Without indicator | With indicator | Without indicator | With indicator | |
| Model | Model | Model | Model | ||
| Pin plunger |  | D4CC-1001 | D4CC-2001 | D4CC-3001 | D4CC-4001 |
| Roller plunger |  | D4CC-1002 | D4CC-2002 | D4CC-3002 | D4CC-4002 |
| Crossroller plunger |  | D4CC-1003 | D4CC-2003 | D4CC-3003 | D4CC-4003 |
| High-sensitivity roller lever |  | D4CC-1024 | D4CC-2024 | D4CC-3024 | D4CC-4024 |
| Sealed pin plunger |  | D4CC-1031 | D4CC-2031 | D4CC-3031 | D4CC-4031 |
| Sealed roller plunger |  | D4CC-1032 | D4CC-2032 | D4CC-3032 | D4CC-4032 |
| Sealed crossroller plunger |  | D4CC-1033 | D4CC-2033 | D4CC-3033 | D4CC-4033 |
| Plastic rod |  | D4CC-1050 | D4CC-2050 | D4CC-3050 | D4CC-4050 |
| Center roller lever |  | D4CC-1060 | D4CC-2060 | D4CC-3060 | D4CC-4060 |
Note:
1. Ask your OMRON representative for Information on approved models.
2. The meaning of suffix codes in the D4CC model numbers is different from that in the D4C model numbers.
3. Refer to the following table for cable plugs.
Applicable Cables
| Type | For AC | For DC | ||
| Appearance | No. of conductors | Cable length | Model | Model |
Straight  | 4 | 1 m | XS2F-A421-C90-A | XS2F-D421-C80-A |
| 2 m | XS2F-A421-D90-A | XS2F-D421-D80-A | ||
| 5 m | XS2F-A421-G90-A | XS2F-D421-G80-A | ||
| 10 m | XS2F-A421-J90-A | XS2F-D421-J80-A | ||
Special Mounting Plate (Optional)
It is possible to replace an WL Limit Switch with a D4CC Limit Switch mounted on this plate without changing the position of the dog or cam.
List of Replaceable Models
| WL model (Actuator) | D4CC model (Actuator) | Plate | |
| WLD (Top plunger) |  | D4CC- [] 001 (Plunger) | D4C-P001 |
| WLD2 (Top roller plunger) | | D4CC- [] 002 (Roller plunger) | D4C-P002 |
| WLG2 (Roller lever) | | D4CC- [] 024 (Roller lever) | D4C-P020 |

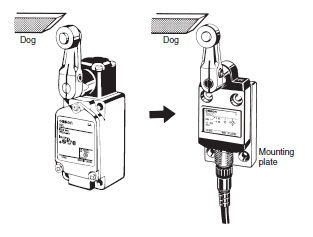

Example of Replacement
Note: The position of the dog remains unchanged.
