WL / WLM

General-purpose Models

Standard Models

Basic

Rotating Lever

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

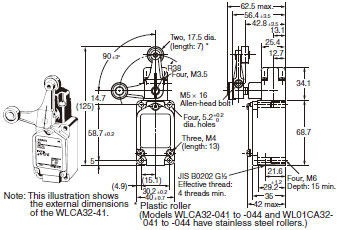

Roller lever R38
WLCA2
WL01CA2

Roller lever R63
WLCA2-8
WL01CA2-8

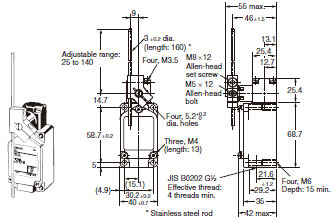

Adjustable Rod Lever (25 to 140 mm)
WLCL
WL01CL

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

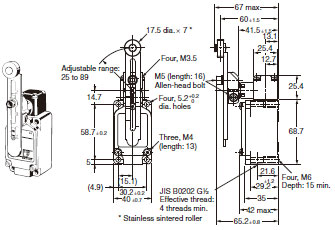

*1. The operating characteristics for WLCA12 and WL01CA12 are measured at the lever length of 38 mm.
*2. The operating characteristics for WLCL and WL01CL are measured at the rod length of 140 mm.

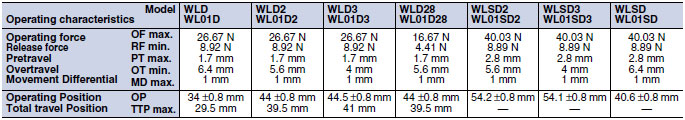

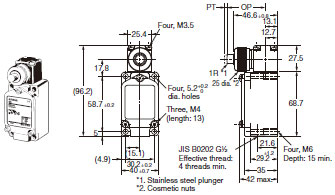

Plunger

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Top Plunger
WLD
WL01D

Top-roller Plunger
WLD2
WL01D2

Top-ball Plunger
WLD3
WL01D3

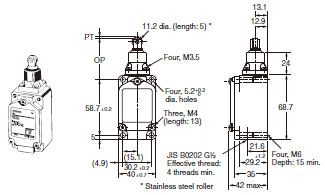

Sealed Top-roller Plunger
WLD28
WL01D28

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Flexible Rod

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

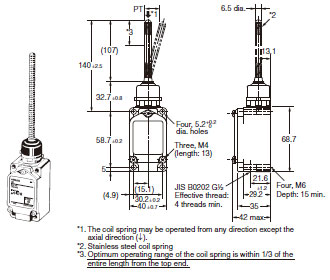

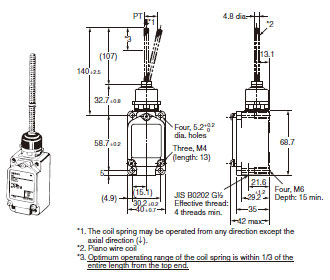

Coil Spring
WLNJ
WL01NJ

Coil Spring (Resin Rod)
WLNJ-2
WL01NJ-2

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

* These values are taken from the top end of the wire or spring.

Overtravel

General-purpose/High-sensitivity Models

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

Roller Lever R38
WLH2
WL01H2
WLG2
WL01G2

Adjustable Roller Lever
WLH12
WL01H12
WLG12
WL01G12

Rod Spring Lever
WLHAL5
WL01HAL5

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Note:
With WLHAL4, WL01HAL4, WLHAL5, and WL01HAL5, the actuator's tare is large, so depending on the installation direction, they may not be properly reset.
Always install so that the actuator is facing downwards.
*1. The operating characteristics of WLH12, WL01HL12, WLG12, and WL01G12 are measured at the lever length of 38 mm.

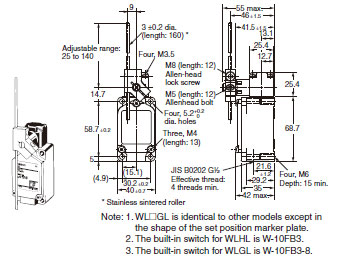

*2. The operating characteristics of WLHL, WL01HL, WLGL, and WL01GL are measured at the rod length of 140 mm.
*3. The operating characteristics of WLHAL4, and WL01HAL4 are measured at the rod length of 380 mm.

OF and RF for WLH12 and WL01H12, with a lever length of 89 mm.

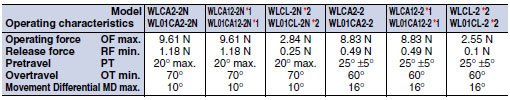

Side-installation Models

For all models WL[] indicates a standard-load model and WL01[] indicates a microload model.

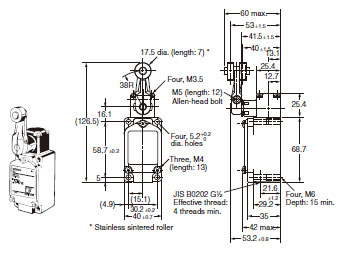

Roller Lever
WLCA2-2N
WL01CA2-2N

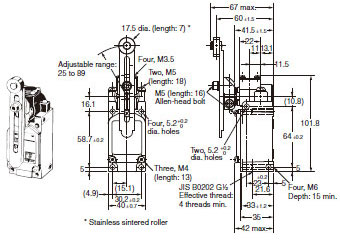

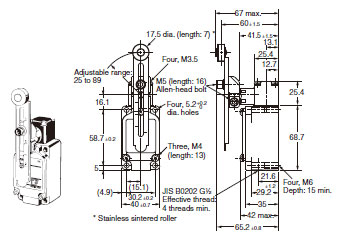

Adjustable Roller Lever
WLCA12-2N
WL01CA12-2N

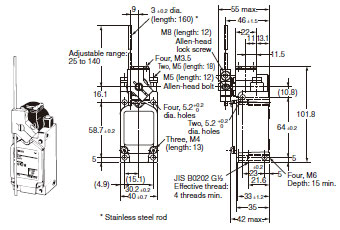

Adjustable Rod Lever
WLCL-2N
WL01CL-2N

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

*1. The operating characteristics of WLCA12-2N and WL01CA12-2N are measured at the lever length of 38 mm.
*2. The operating characteristics of WLCL-2N and WL01CL-2N are measured at the rod length of 140 mm.

OF and RF for WLCA12-2N and WL01CA12-2N, with a lever length of 89 mm.

High-precision Models

WL[] are Standard Models and WL01[] are Microload Models.

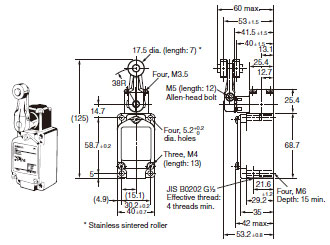

Roller Lever
WLGCA2
WL01GCA2

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Sensor I/O Connector Switches

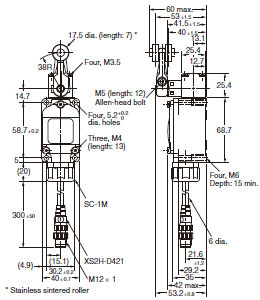

Direct-wired Connector/Pre-wired Connector Models

Refer to Datasheet.

Roller Lever Plungers

WL[] are Standard Models and WL01[] are Microload Models.

Standard Models (WLCA2), High-precision Models (WLGCA2),
Overtravel General-purpose Models (WLH2), Overtravel High-sensitivity Models (WLG2)

Connector Models

Note:
1. Only the dimension of the set position marker plate is different for WLG2 Models.
2. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
3. The models with operation indicators are shown in the above diagrams.

Top-roller Plunger (WLD2)

Direct-wired Connector Models

Note:
1. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
2. The following diagrams are for a indicator-equipped models.

Indicator-equipped Models

Roller Lever
WLCA2-LE/LD
WL01CA2-LE/LD

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

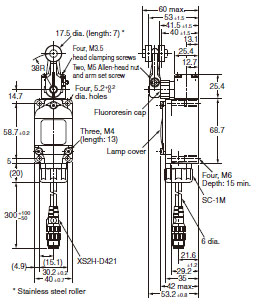

Spatter-prevention Models

Roller Lever (Screw Terminals)
WLCA2-[]S/WL01[]-[]S
WLH2-[]S/WLG2-[]S
WLGCA2-[]S

Sealed Top-roller Plunger (Screw Terminals)
WLD28-[]S

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

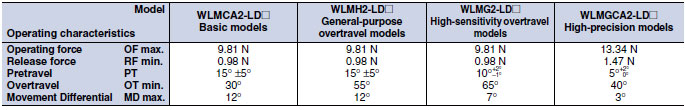

Long-life Models

Rotating Lever Models

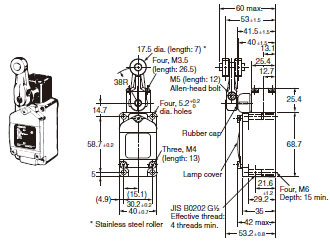

Roller Lever (Screw Terminals)
WLM[]-LD

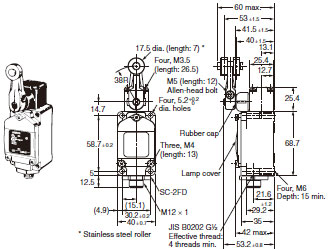

Roller Lever (Pre-wired Connectors)
WLM[]-LD[]

Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.

Actuators (Levers Only)

Lever: Only rotating lever models are illustrated.

WL-1A100
Standard Lever

WL-1A400
Bearing Roller

WL-1A105
Double Nuts

WL-1A200
Lever Length: 50
Roller Width: 15

WL-2A100

WL-2A107
Double Nuts

WL-2A122

WL-2A130

WL-2A110

WL-1A106

WL-4A100

WL-3A100

WL-3A108

WL-3A203

WL-2A129

WL-5A103

Note:
1. Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
2. When using the adjustable roller (rod) lever, make sure that the lever is facing downwards. Use caution, as telegraphing (the Switch turns ON and OFF repeatedly due to inertia) may occur.
