D4A-[]N

Set Model Numbers

(The box in a model number indicates the switch box type.)

Roller Lever Switches

Note: Levers of the side rotary type are optionally available.

Standard

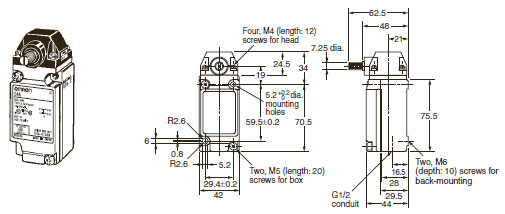

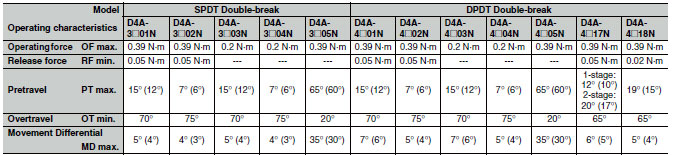

D4A-3[]01N, D4A-4[]01N

High-sensitivity
D4A-3[]02N, D4A-4[]02N

Low-torque
D4A-3[]03N, D4A-4[]03N

High-sensitivity/ Lowtorque
D4A-3[]04N, D4A-4[]04N

Sequential Operation
D4A-4[]17N

Center Neutral Operating
D4A-4[]18N

Maintained

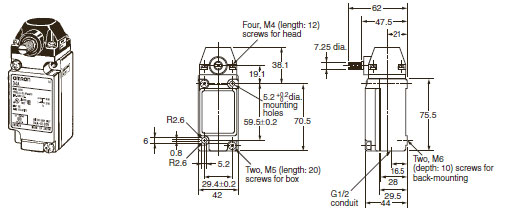

D4A-3[]05N, D4A-4[]05N

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: The figures in the parentheses are average values.

Side Plunger Switches

Standard

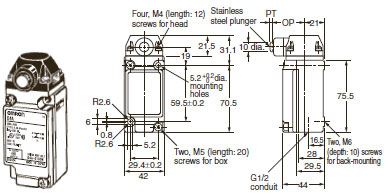

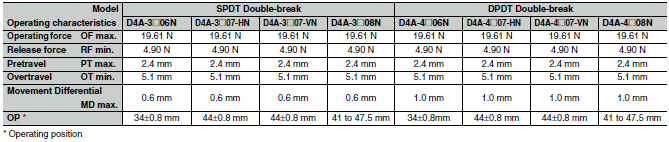

D4A-3[]06N, D4A-4[]06N

Horizontal Roller

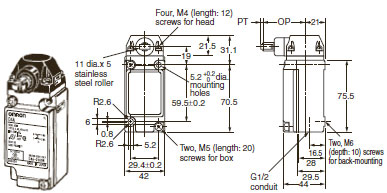

D4A-3[]07-HN, D4A-4[]07-HN

Vertical Roller

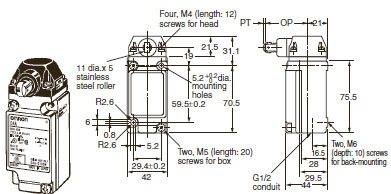

D4A-3[]07-VN, D4A-4[]07-VN

Adjustable

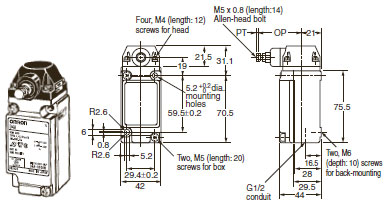

D4A-3[]08N, D4A-4[]08N

Top Plunger Switches

Standard

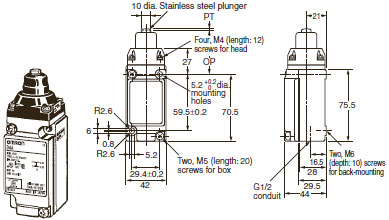

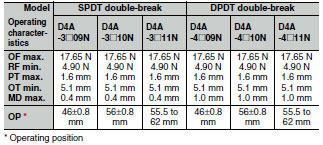

D4A-3[]09N, D4A-4[]09N

Roller Plunger

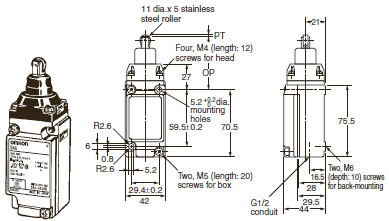

D4A-3[]10N, D4A-4[]10N

Adjustable

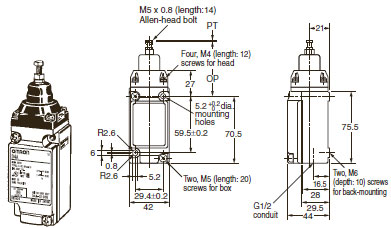

D4A-3[]11N, D4A-4[]11N

Flexible Rod

Spring Wire

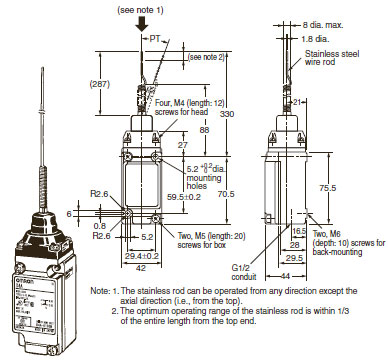

D4A-3[]12N, D4A-4[]12N

Plastic Rod

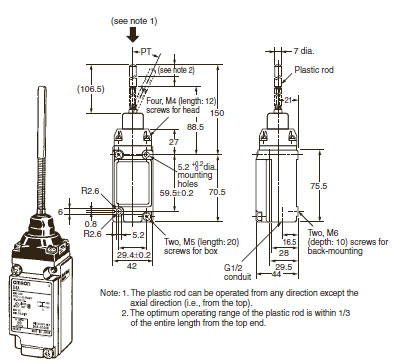

D4A-3[]14N, D4A-4[]14N

Cat Whisker

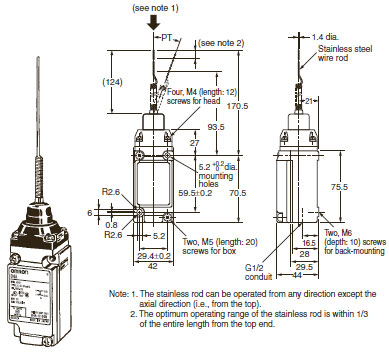

D4A-3[]15N, D4A-4[]15N

Coil Spring

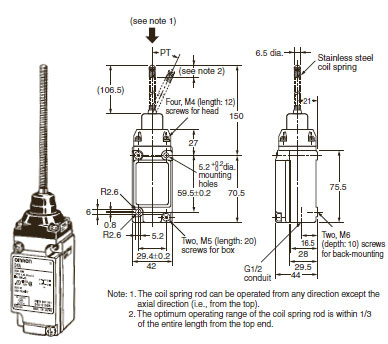

D4A-3[]16N, D4A-4[]16N

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Levers (for Roller Lever Switches)

Note: No D4A-0003N or D4A-0004N head should be used with the adjustable roller lever or mechanical malfunctioning could result because the total weight of the adjustable roller lever is comparatively large. Use a standard-load head (D4A-0001N or D4A-0002N) instead. A Fork Lever Lock can be used with D4A-[][]05N models only.

Roller Lever
D4A-A00

Roller Lever
D4A-A20

Roller Lever

D4A-B06

Adjustable Roller Lever
D4A-C00

Fork Lever Lock
D4A-E30

Fork Lever Lock
D4A-E10

Nylon Loop Lever

D4A-F00

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Head and Lever Positions

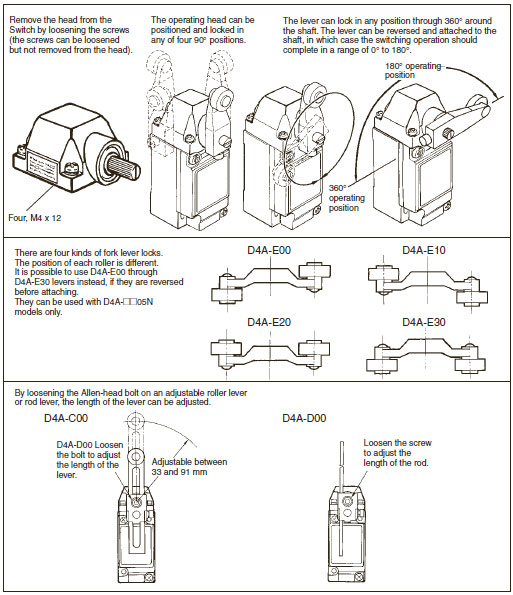

The operating head can be positioned and locked in any of four 90° positions and a lever can lock in any position through 360° around the shaft of the Limit Switch. Furthermore, the lever can be reversed and attached to the shaft (refer to the figures below on the right hand side). Therefore the roller is compatible with a wide movement range of a dog.

A Fork Lever Lock can be used with maintained models (D4A-0005N) only.

Lever Position

D4A-A00

D4A-A20
