Switches

(Note: Omitted dimensions are the same as those of the plunger models.)

Plunger
SHL-D55
SHL-D55-01

SHL-D55_Dim

Panel Mount Plunger
SHL-Q55
SHL-Q55-01

SHL-Q55_Dim

Panel Mount Roller Plunger
SHL-Q2255
SHL-Q2255-01

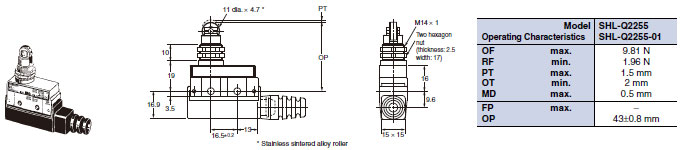

SHL-Q2255_Dim

Panel Mount Crossroller Plunger
SHL-Q2155
SHL-Q2155-01

SHL-Q2155_Dim

Short Hinge Lever
SHL-W55
SHL-W55-01

SHL-W55_Dim

Hinge Lever
SHL-W155
SHL-W155-01

SHL-W155_Dim

Short Hinge Roller Lever
SHL-W255
SHL-W255-01

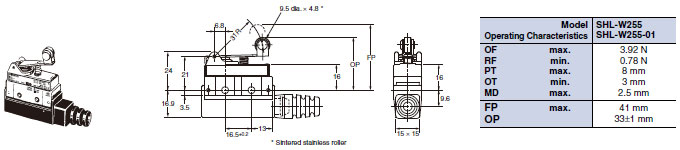

SHL-W255_Dim

Hinge Roller Lever
SHL-W2155
SHL-W2155-01

SHL-W2155_Dim

One-way Action Short Hinge Roller Lever
SHL-W355
SHL-W355-01

SHL-W355_Dim

One-way Action Hinge Roller Lever
SHL-W3155
SHL-W3155-01

SHL-W3155_Dim

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Caution: All units are in millimeters unless otherwise indicated.
