ZC-[]55 Pick up

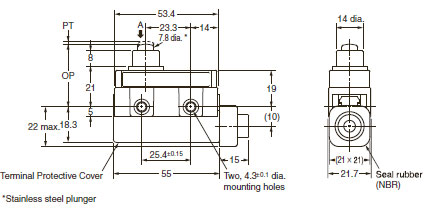

Plunger
ZC-D55
Panel Mount Plunger
ZC-Q55

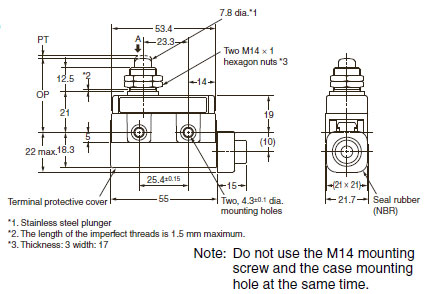

Panel Mount Roller Plunger
ZC-Q2255
Panel Mount Crossroller Plunger
ZC-Q2155

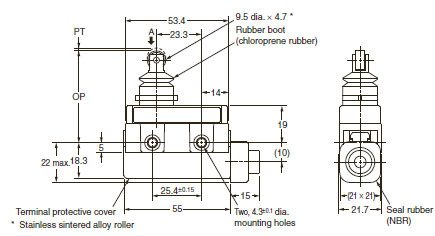

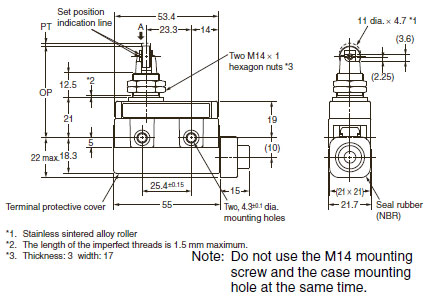

Sealed Roller Plunger
ZC-N2255

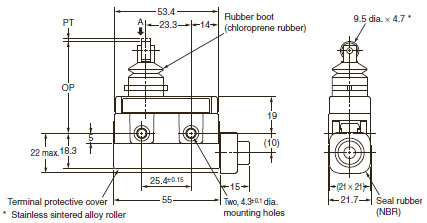

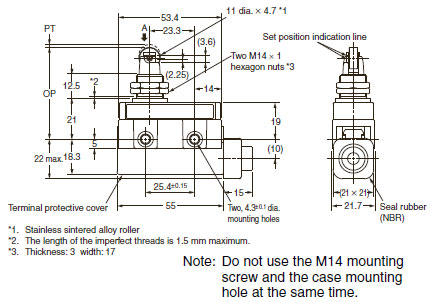

Sealed Crossroller Plunger
ZC-N2155
Short Hinge Roller Lever
ZC-W55

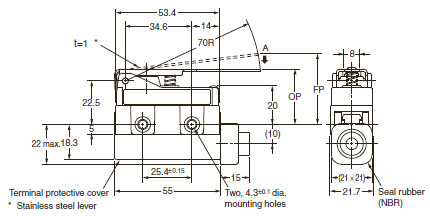

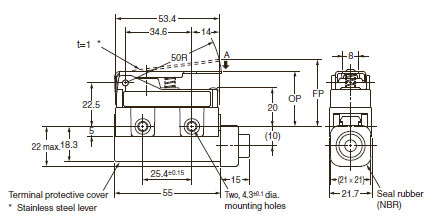

Hinge Lever
ZC-W155
Short Hinge Roller Lever
ZC-W255

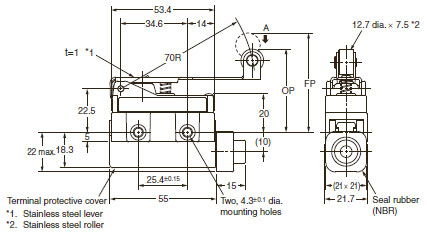

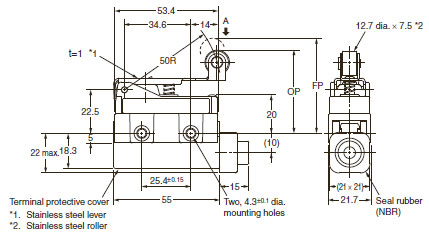

Hinge Roller Lever
ZC-W2155

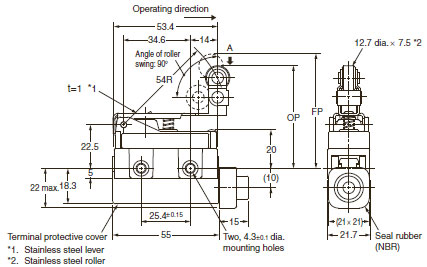

One-way Action Short Hinge Roller Lever
ZC-W355

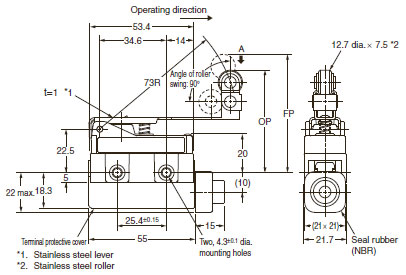

One-way Action Hinge Roller Lever
ZC-W3155

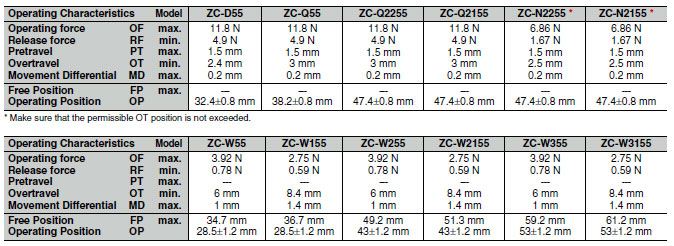

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
![ZC-[]55_Dim1](img/ZC-[]55_dm_13.jpg)
Caution: All units are in millimeters unless otherwise indicated.
