ZE / ZV / ZV2 / XE / XV / XV2

Side Mounting Models

Plunger
ZE-Q-2
XE-Q-2

Crossroller Plunger
ZE-Q21-2
XE-Q21-2

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The diagrams shown the Switches with two, M4 screws (length: 45) attached. (The screws are provided.)

One-way Action Roller Arm Lever
ZE-QA277-2
XE-QA277-2

Sealed Roller Plunger
ZE-N22-2

Sealed Roller Arm Lever
ZE-NA2-2
XE-NA2-2

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The diagrams shown the Switches with two, M4 screws (length: 45) attached. (The screws are provided.)

Base Mounting/Diagonal Side Mounting Models

The diagrams show the base-mounted model (ZV-[] or XV-[]) on top and the diagonal side-mounted model (ZV2-[] or XV2-[]) on bottom. The flange on base-mounted models is shown with dotted lines.

Plunger
ZV(2)-Q-2
XV(2)-Q-2

Crossroller Plunger
ZV(2)-Q21-2
XV(2)-Q21-2

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note:
1. OP for ZV2-Q-2 and XV2-Q-2 is 24.2 ±0.8 mm.
2. OP for ZV2-Q22-2 and XV2-Q22-2 is 35.7 ±1 mm.
3. OP for ZV2-Q21-2 and XV2-Q21-2 is 35.7 ±0.8 mm.

One-way Action Roller Arm Lever
ZV2-QA277-2
XV(2)-QA277-2

Sealed Roller Plunger
ZV(2)-N22-2

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

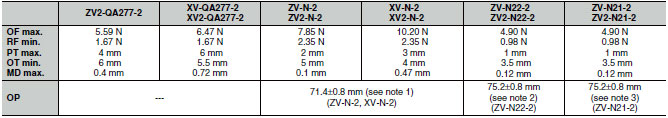

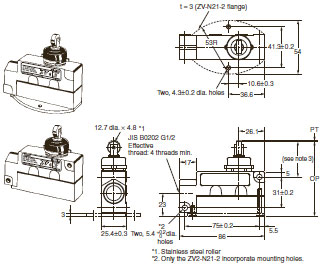

Note:
1. OP for ZV2-N-2 and XV2-N-2 is 31.9 ±0.8 mm.
2. OP for ZV2-N22-2 is 35.7 ±0.8 mm.
3. OP for ZV2-N21-2 is 35.7 ±0.8 mm..

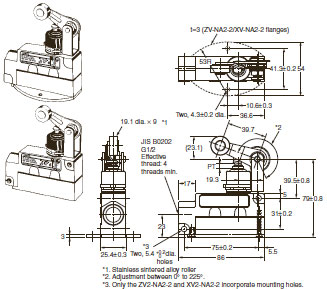

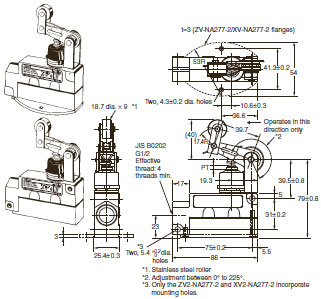

Sealed Roller Arm Lever
ZV(2)-NA2-2
XV(2)-NA2-2

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
