Mechanical Touch Switch

D5B

D5B

Detects Objects in Multiple Directions with High Sensitivity, Ideal for Robotics

Related Contents

D5B Pick up

Primary Contents



Dimensions

M5 Type

(The square [] in the models represents the cable length. Refer to Lineup.)

D5B-501[]

D5B-501[]_Dim

D5B-502[]

D5B-502[]_Dim

D5B-551[]

D5B-551[]_Dim

M8 Type

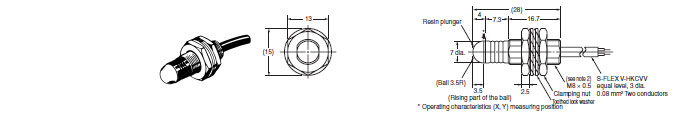

D5B-801[]

D5B-801[]_Dim

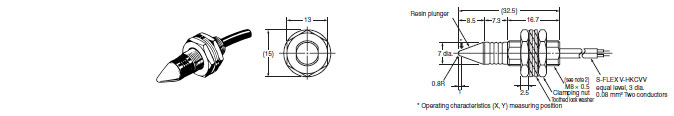

D5B-802[]

D5B-802[]_Dim

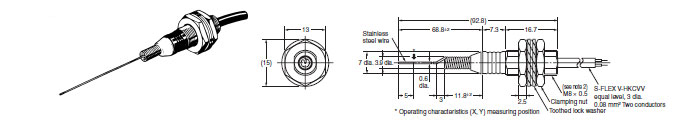

D5B-851[]

D5B-851[]_Dim

M10 Type

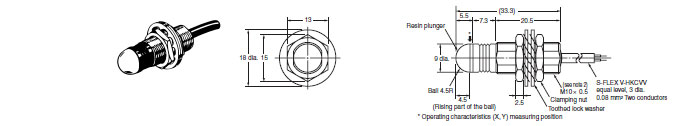

D5B-101[]

D5B-101[]_Dim

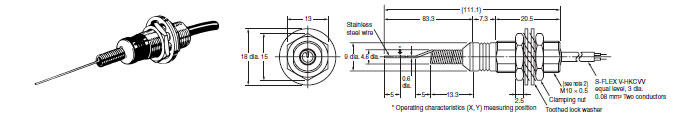

D5B-151[]

D5B-151[]_Dim

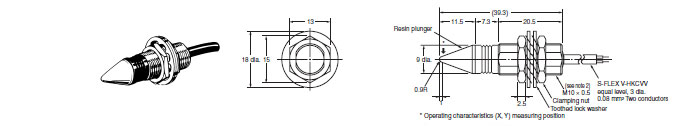

D5B-102[]

D5B-102[]_Dim

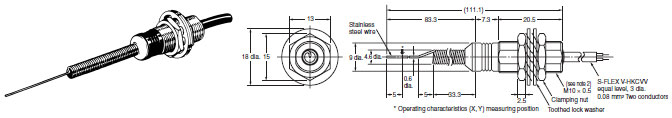

D5B-153[]

D5B-153[]_Dim

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible for mounting.

Operating Characteristics

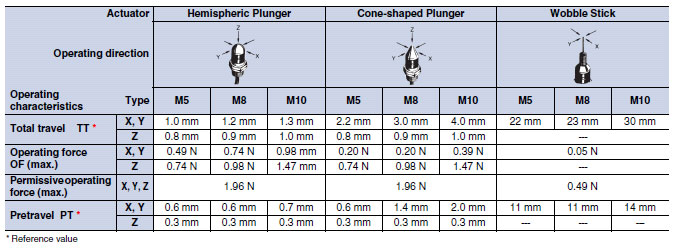

D5B_Operating Characteristics

Caution: All units are in millimeters unless otherwise indicated.
