A7PS / A7PH

Dust-tight, Easy-to-Use, Push-operated Switches with Large Display Characters

Quick links to 'A7PS / A7PH' page in your country / territory.

Get more support via Products links, such as manuals and CAD files.

Swithes

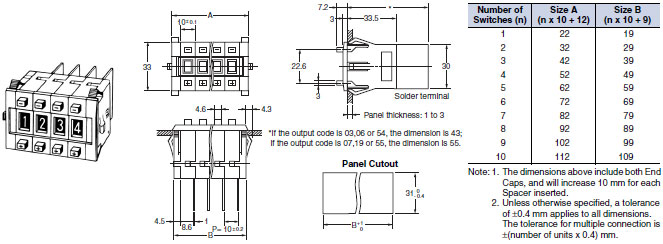

A7PS-2[][](-1)
A7PH-2[][](-1)
Solder Terminal

Accessories (Order Separately)

End Caps for Push-operated Switches
A7P-M(-1) Snap-in Panel Mounting

Spacers for Push-operated Switches
A7P-P[](-1) Snap-in Panel Mounting

The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table under the explanation about Spacers on Lineup.)

Connectors

(These devices allow Switches to be quickly removed for maintenance and inspection of connectivity, and quickly re-installed.)

NRT-C Solder Terminals

NRT-CN Solder Terminals

NRT-CP PCB Terminals

Note:Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.

Inserting Connectors

Insert Connectors with the "UP" arrow pointing up.

Caution: All units are in millimeters unless otherwise indicated.

Switches
