D4BL

Release Protective Cover Locks Using Controller Signals or Pushbutton Switches after the Cutting Tool Stops Moving Due to Inertia

Data Sheet (783KB)

Related Contents

Quick links OMRON IA Safety Door Switches in your country.

Europe
- Austria
- Belgium
- Czech Republic
- Denmark
- Finland
- France
- Germany
- Hungary
- Italy
- Latvia
- Lithuania
- Netherlands
- Norway
- Poland
- Portugal
- Russia
- Spain
- Sweden
- Switzerland
- Turkey
- United Kingdom

Middle East

Please contact Europe headquarters.
Africa
- South Africa

Greater China
- China
- Taiwan
Asia-Pacific
- Australia
- India
- Indonesia
- Malaysia
- New Zealand
- Philippines
- Singapore
- Thailand
- Vietnam

Japan / Korea
- Japan
- Korea
Americas

Primary Contents

Switches

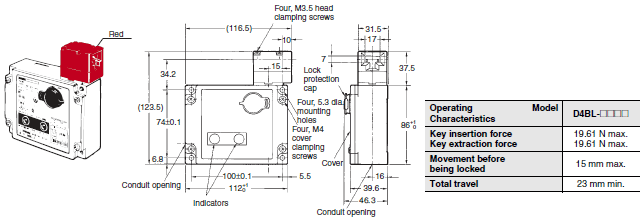

D4BL-[][][][]-[]

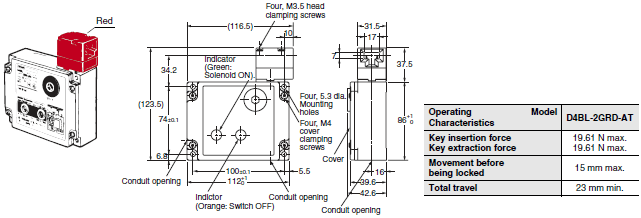

D4BL-2GRD-AT

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. There are fluctuations in the contact ON/OFF timing for 2NC contacts. Confirm performance before application.

Operation Keys

D4BL-K1

D4BL-K3

D4BL-K2

With Operation Key Inserted

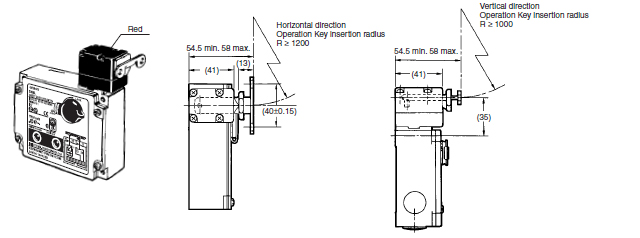

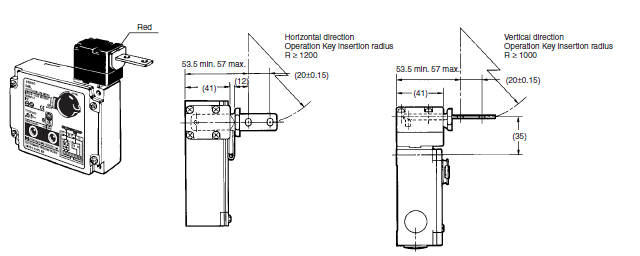

D4BL + D4BL-K1

D4BL + D4BL-K2

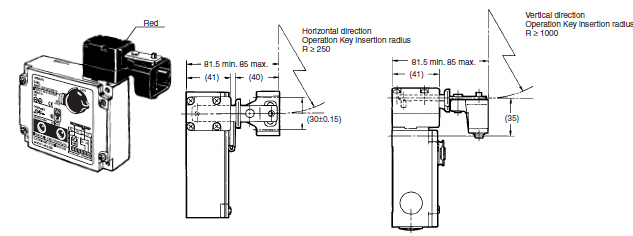

D4BL + D4BL-K3
