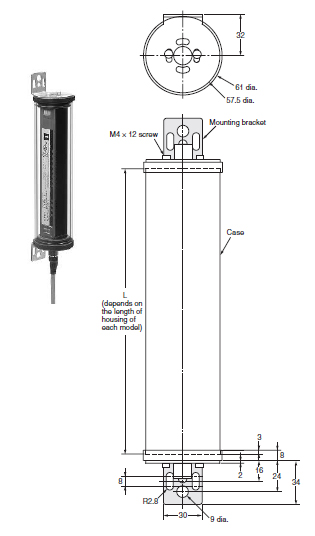

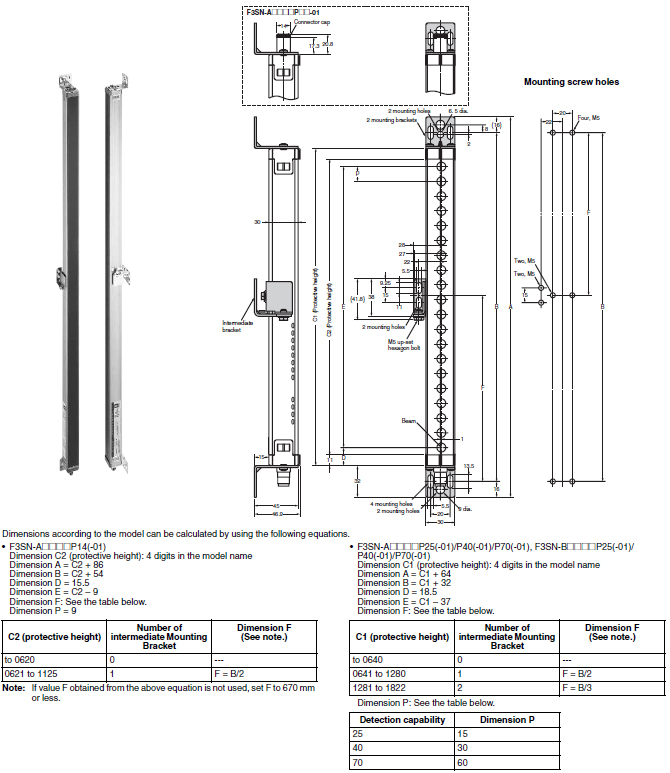

F3SN-A[][][][]P[][](-01)
F3SN-B[][][][]P[][](-01)

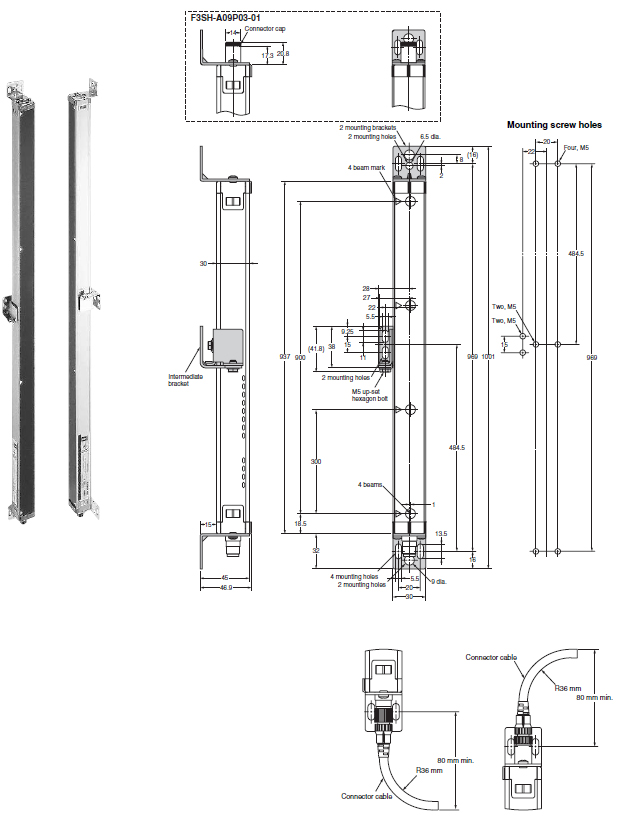

F3SH-A09P03
F3SH-A09P03-01

Mounting Precautions

1. The intermediate bracket (3) (see Mounting brackets (intermediate)) is shown on the left-hand side of the sensor as an example. If the intermediate bracket (3) is on the right-hand side of the sensor then the mounting holes must also be on the right-hand side.
2. When using with the cable bent, allow at least the dimensions shown on the right. (Minimum bending radius of cable: R36 mm.)

Accessories

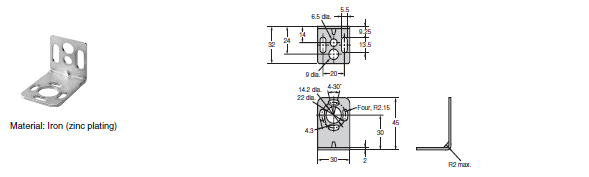

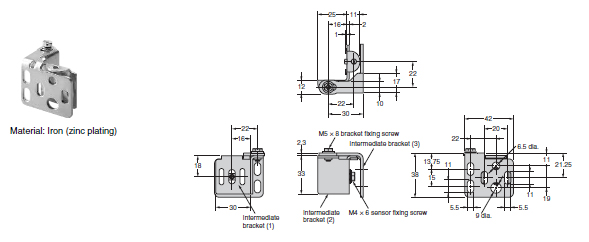

Mounting Bracket (Top and Bottom)

Note: Provided with the product.

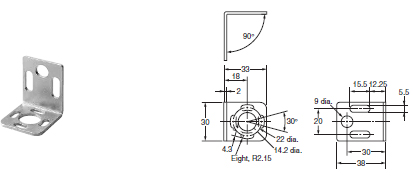

Mounting Brackets (Intermediate)

Note: Provided with the product.
The number of brackets required depends on the total length of the Sensor.

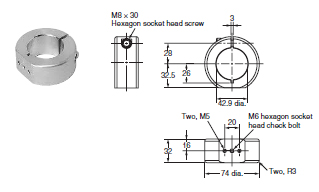

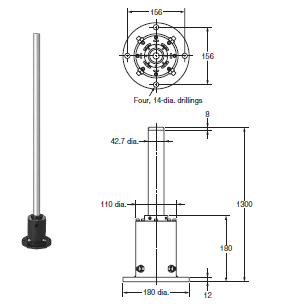

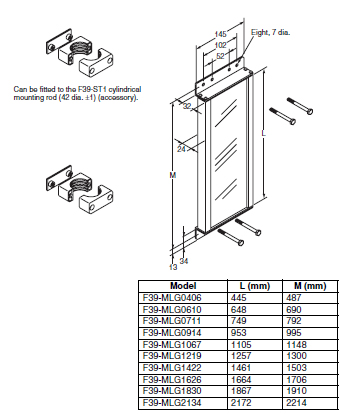

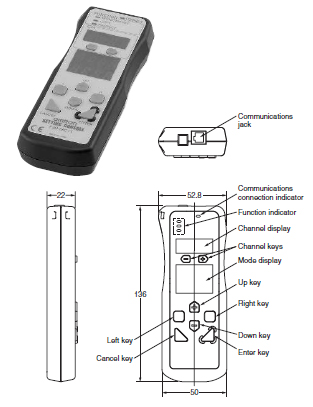

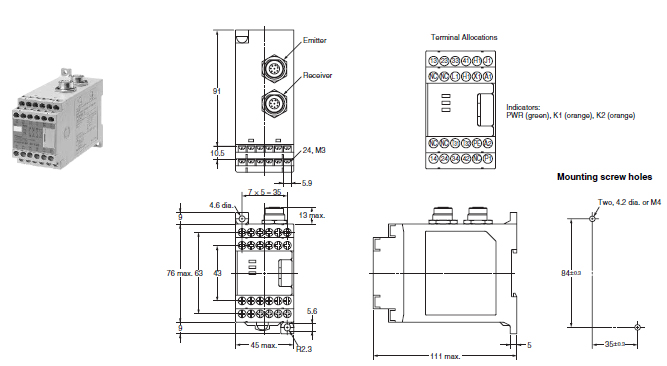

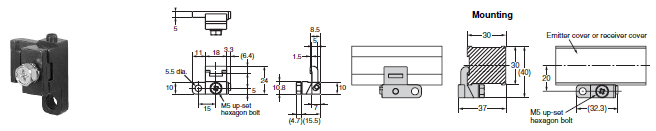

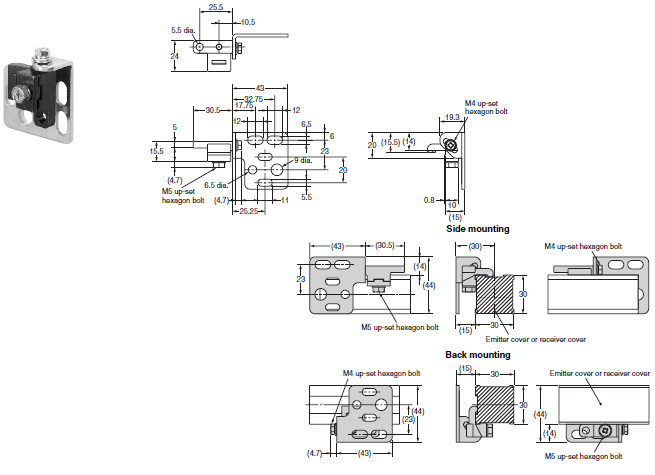

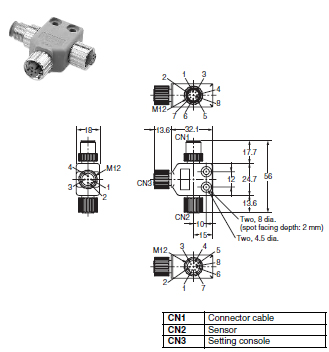

Accessories (Optional)

Cables with Connector on One End

F39-JC3A (L = 3 m)
F39-JC7A (L = 7 m)

F39-JC10A (L = 10 m)
F39-JC15A (L = 15 m)

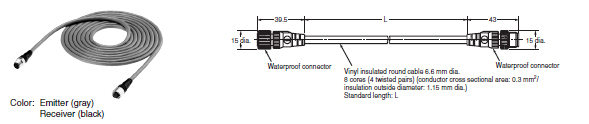

Cables with Connectors on Both Ends

F39-JCR2B (L = 0.2 m)
F39-JCR5B (L = 0.5 m)
F39-JC3B (L = 3 m)
F39-JC5B (L = 5 m)
F39-JC7B (L = 7 m)
F39-JC10B (L = 10 m)
F39-JC15B (L = 15 m)
F39-JC20B (L = 20 m)

F39-JCR2C (L = 0.2 m)
F39-JC1C (L = 1 m)
F39-JC3C (L = 3 m)
F39-JC7C (L = 7 m)
F39-JC10C (L = 10 m)
F39-JC15C (L = 15 m)
