E3X-DA-N

Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.

Pre-wired Amplifiers
E3X-DA11-N, E3X-DAG11-N, E3X-DA21-N E3X-DAH11-N, E3X-DAB11-N, E3X-DAB41-N
E3X-DA41-N, E3X-DAG41-N, E3X-DA51-N E3X-DAH41-N, E3X-DA11D

*1.The Mounting Bracket can also be used on side A.

*2.E3X-DA11-N/DA41-N/DAB11-N: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm²; Insulationdiameter: 1.1 mm).
Standard length: 2 m.
E3X-DA21-N/DA51-N: 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm²; Insulation diameter:1.1 mm).
Standard length: 2 m.

Note:When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

Pre-wired Amplifiers, Water-resistant Models

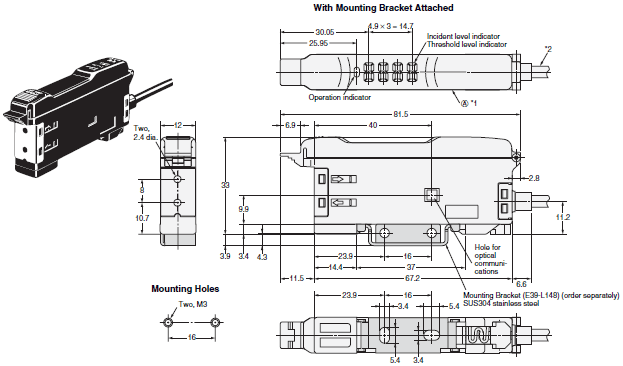

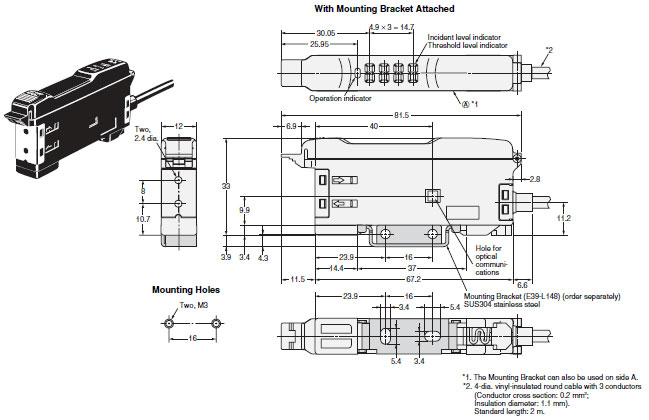

E3X-DA11V
E3X-DA41V

*1.The Mounting Bracket can also be used on side A.

*2.4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm²; Insulation diameter: 1.1 mm).
Standard length: 2 m.

Pre-wired Amplifiers, Twin-output Models
E3X-DA11TW
E3X-DA41TW

*1.The Mounting Bracket can also be used on side A.

*2.4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm²; Insulation diameter: 1.1 mm).
Standard length: 2 m.

Note:When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted side by side.

Amplifiers with Standard Connectors

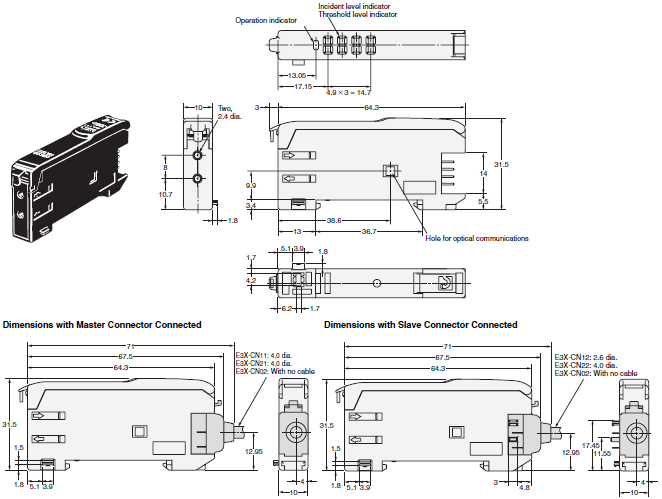

E3X-DA6, E3X-DAG6, E3X-DA7, E3X-DAH6
E3X-DA8, E3X-DAB8, E3X-DA9, E3X-DAG8
E3X-DAB6, E3X-DAH8, E3X-DA6D, E3X-DA6-P

Amplifiers with M8 Connectors, Water-resistant Models

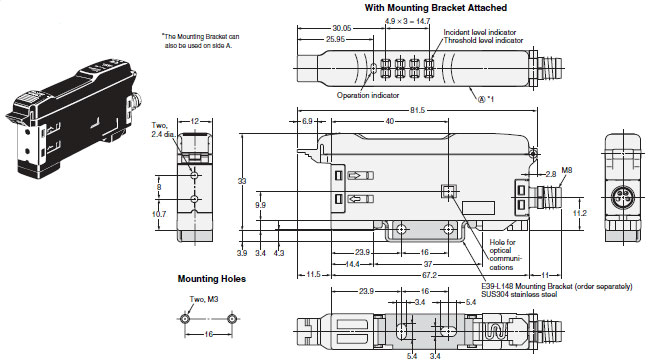

E3X-DA14V
E3X-DA44V

Amplifiers with Standard Connectors, Twin-output Models
E3X-DA6TW
E3X-DA8TW

Amplifiers with Connectors

Master Connectors
E3X-CN11
E3X-CN21

Slave Connectors
E3X-CN12
E3X-CN22

Mobile Console

E3X-MC11
