SitemapCompact Head Amplifier-separated Photoelectric Sensor
E3C
Thin, Compact Head Saves Space and Mounts Closely. Built-in Interference Protection Provided.
Data Sheet (1007KB)
Quick links to 'E3C' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
Sensor Units

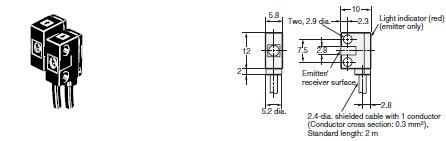

E3C-S10
Emitter: E3C-S10L
Receiver: E3C-S10D

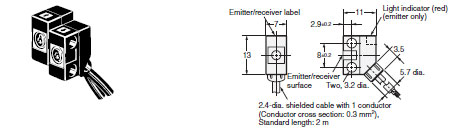

E3C-S50
Emitter: E3C-S50L
Receiver: E3C-S50D

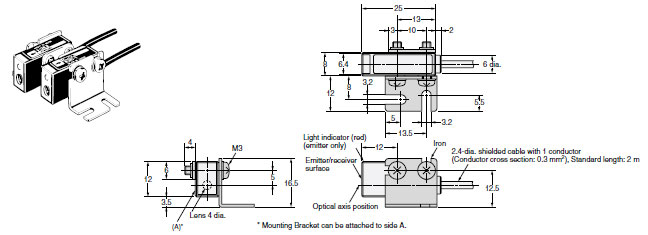

E3C-1
Emitter: E3C-1L
Receiver: E3C-1D

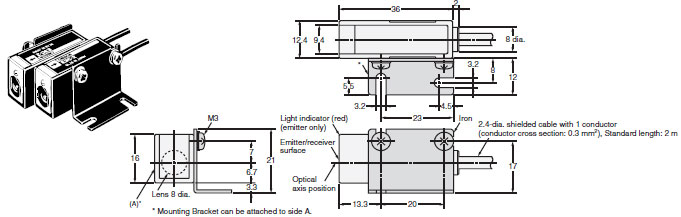

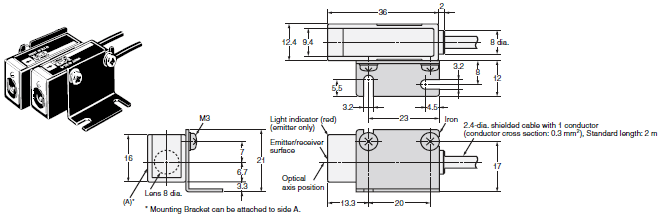

E3C-2
Emitter: E3C-2L
Receiver: E3C-2D

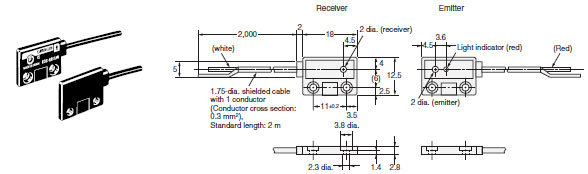

E3C-S20W
Emitter: E3C-S20LW
Receiver: E3C-S20DW

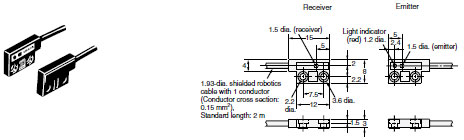

E3C-S30W
Emitter: E3C-S30LW
Receiver: E3C-S30DW

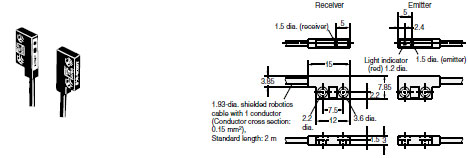

E3C-S30T
Emitter: E3C-S30LT
Receiver: E3C-S30DT

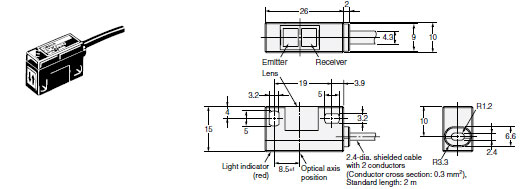

E3C-DS10

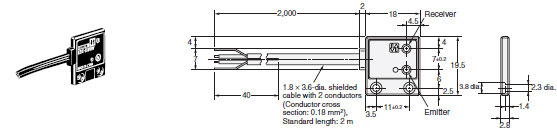

E3C-DS5W

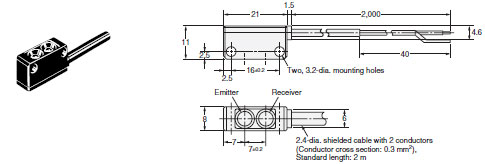

E3C-DS10T

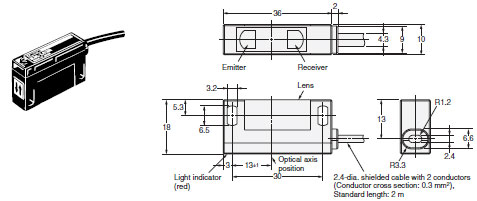

E3C-LS3R
Amplifier Units

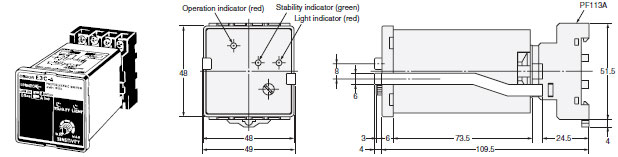

E3C-A
E3C-C

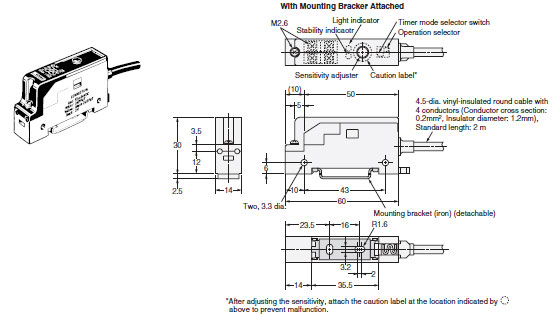

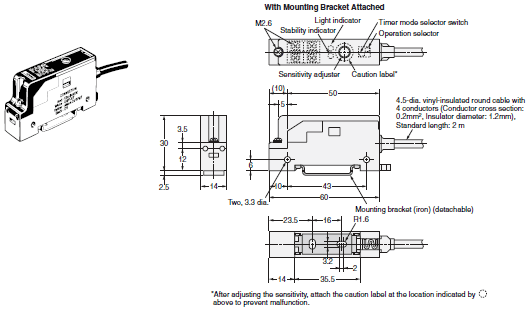

E3C-JC4P
E3C-GE4
Connector
Use the PYF08A front connection socket or PY08 rear connection socket.

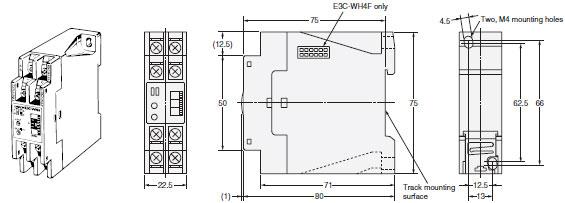

E3C-WE4
E3C-WH4F
Caution: All units are in millimeters unless otherwise indicated.
