SitemapLine Sensor
F3W
Detects Objects in a Variety of Lines and is Ideal for Picking Instruction Purposes
Data Sheet (382KB)
Quick links OMRON IA Photoelectric Sensors in your country.
-
- Middle East
-
Please contact our European headquarters.
Emitter

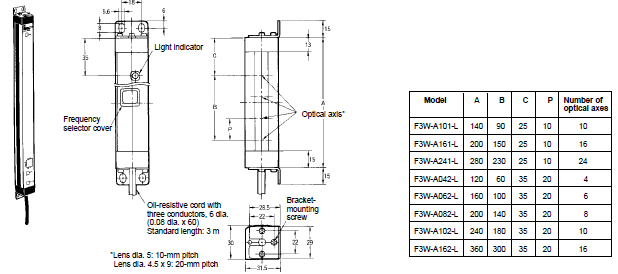

F3W-A-L (Emitter with Mounting Bracket)

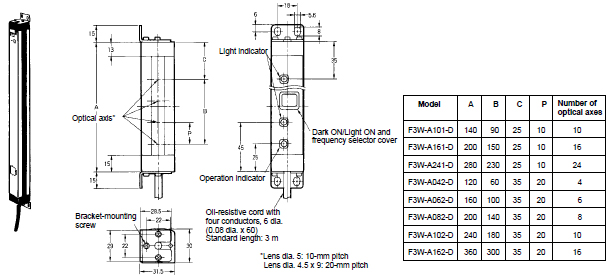

Receiver
F3W-A-D (Receiver with Mounting Bracket)
Weight
Emitter

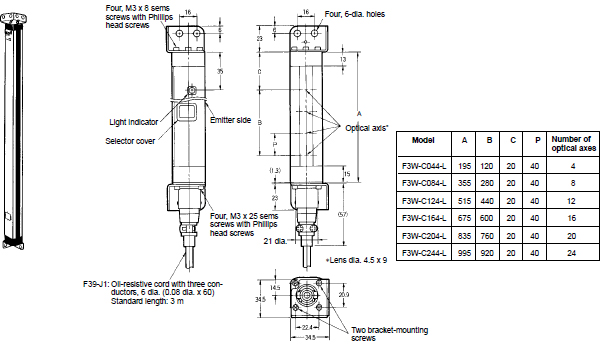

F3W-C-L (Emitter with Mounting Bracket)

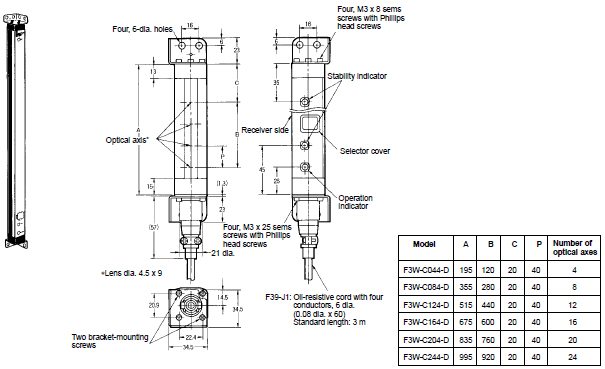

Receiver
F3W-C-D (Receiver with Mounting Bracket)
Weight

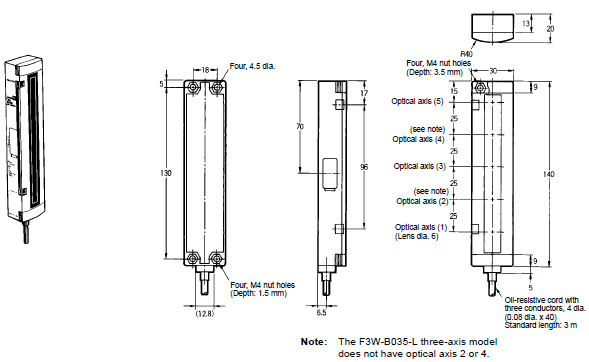

Emitter
F3W-B-L

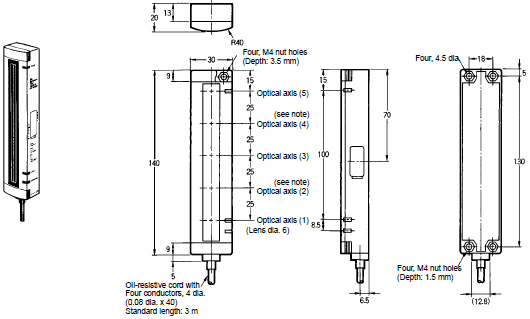

Receiver
F3W-B-D
Note: The F3W-B035-D three-axis model does not have optical axis 2 or 4.
Weight
Accessories
Mounting Brackets
*Specify the model number when purchasing Mounting Brackets.
F39-L3 Standard Mounting Brackets*
(For F3W-A)

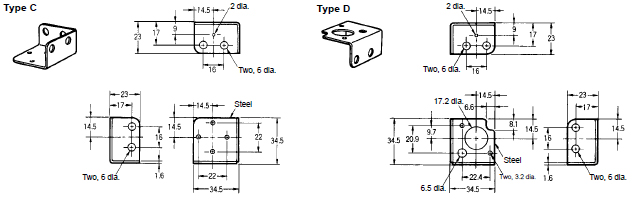

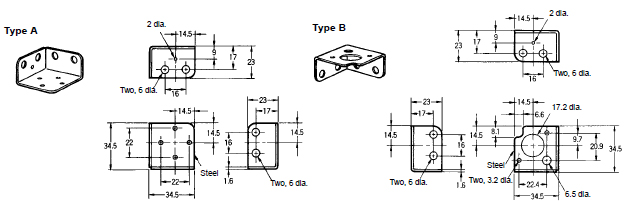

F39-L5 Standard Mounting Brackets*
F3W-C (with Types A, B, C, and D)
Accessories (Optional)
Plugs (Connector Model Use)
Two Plugs, one each for the Emitter and Receiver are sold together.

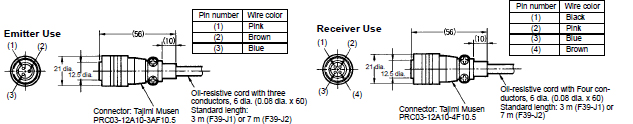

F39-J1 (3 m)
F39-J2 (7 m)
Lens Cover (Acrylic)
Mounting Brackets (Optional)
F39-L4 (For F3W-C)

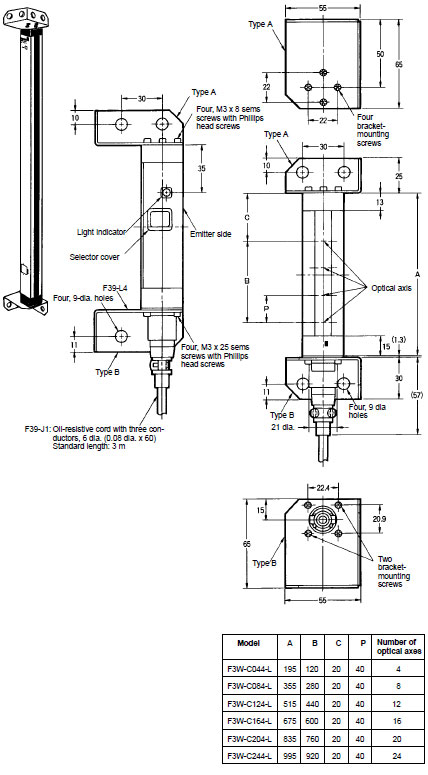

Emitter with Mounting Bracket
F3W-C[][][]-L (Emitter)
![F3W-C[][][][]-L_Dim](img/f3w_dm_19.jpg)
Mounting Brackets (Optional)
F39-L4 (For F3W-C)

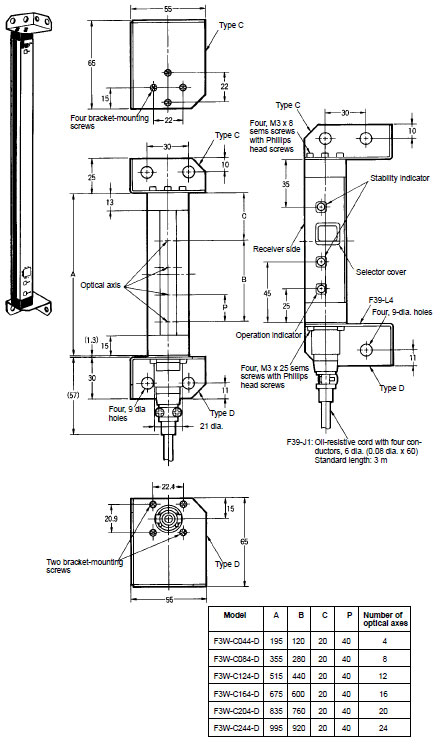

Receiver with Mounting Bracket
F3W-C[][][]-D (Receiver)
![F3W-C[][][]-D_Dim](img/f3w_dm_20.jpg)
L-shaped Mounting Bracket (Optional)
F39-L1 (For F3W-B)

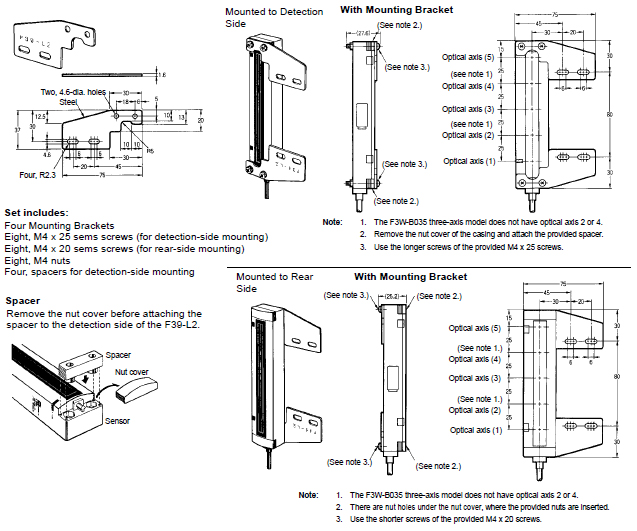

Flat Mounting Bracket (Optional)
F39-L2 (For F3W-B)
Caution: All units are in millimeters unless otherwise indicated.
